Description

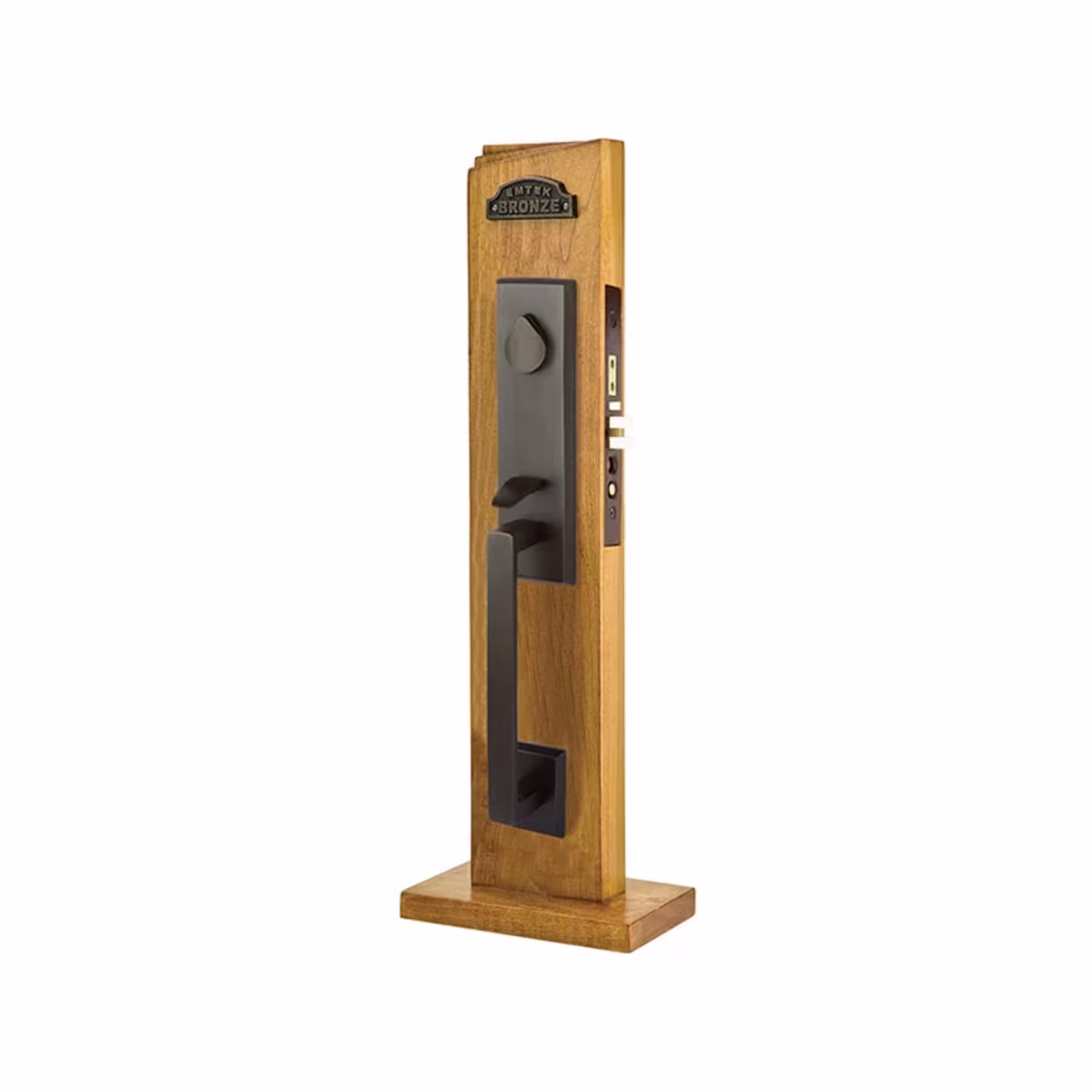

The Emtek Rustic Modern Rectangular Mortise perfectly combines the bold character of Sandcast Bronze with a sleek, contemporary design. Built for both durability and timeless appeal, this heavy-duty rectangular mortise hardware offers dependable security for active doors and a consistent aesthetic for double doors.

Crafted from solid bronze, this Emtek set features a living finish that develops a rich patina over time, reflecting natural wear and use for a uniquely authentic look that lasts for decades.

Functions

This striking Emtek Rustic Modern Rectangular Mortise is available in three key functions:

• F13 Mortise (Keyed Entry) – Standard keyed lock where the key outside operates both bolts, and the inside lever retracts the latch and deadbolt simultaneously.
• F20 Mortise (Institutional/Security) – Always locked from the outside with a temporary override option using the latch plate release button.
• Dummy Function (Decorative) – This non-active hardware is designed for double or French doors to perfectly match the active Emtek Rustic Modern Mortise hardware for a consistent, balanced look.

Product Features

• Can be ordered with any Sandcast Bronze knob or lever for the inside trim.
• Sold as a complete set, including latch and strike plate (where applicable).
• Available in 2-1/2″ or 2-3/4″ backsets.
• Standard mortise door prep ANSI A115.1.
• UL Listed mortise with ANSI F20 or F13 function.
• Schlage C keyway for reliable compatibility.
• Handing required for all active mortise locks.

Heavy-Duty Mortise Lock Box Includes (F13 & F20)

The lock box components for the active F13 and F20 functions of the Emtek Rustic Modern Rectangular Mortise ensure maximum security:

• UL Listed mortise door prep ANSI A115.1.
• 180-minute fire rating for safety.
• Deadlocking latch bolt for superior security.
• Forged deadbolts with anti-saw inserts.
• Anti-pick security latches for tamper resistance.
• Anti-friction triggers for smooth operation.
• Stop and release buttons included in F20 function option.

Additional Details

These specifications apply to all hardware types in the Rustic Modern Rectangular Mortise line:

• Standard door thickness: 1-3/4” (specify if thicker).
• Locks for in-swing doors are standard; specify if out-swing.
• Same exterior dimensions apply to the decorative Dummy Function hardware.
• Available with standard or extended components for various door thicknesses.

Inspired by the artistry of the Bronze Age, the Emtek Rustic Modern Mortise captures the essence of handcrafted metalwork while embracing a refined modern silhouette — perfect for those seeking both rustic character and contemporary sophistication.
