Description

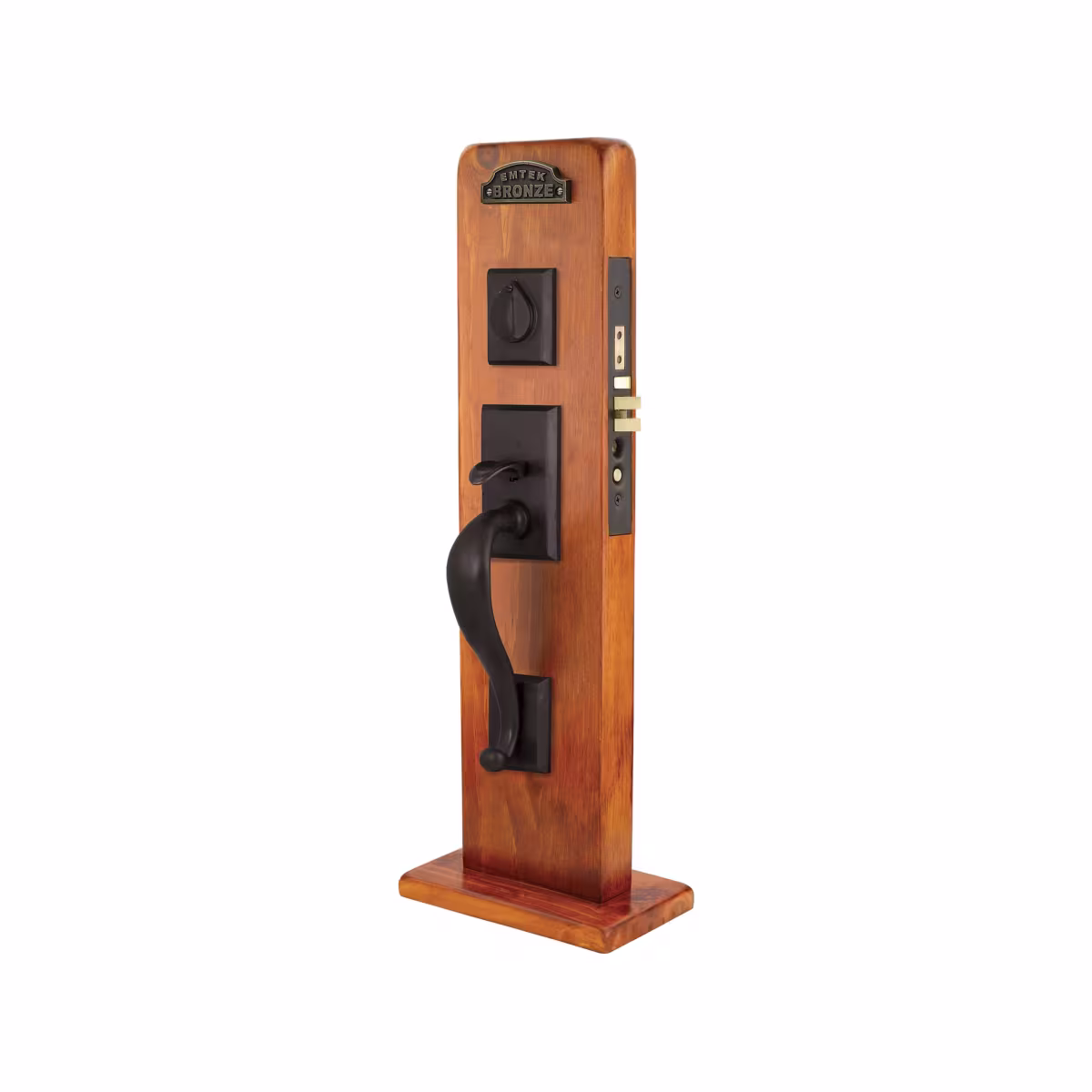

Emtek Rectangular Sectional Mortise

The Emtek Rectangular Sectional Mortise blends contemporary rectangular styling with the rustic character of Sandcast Bronze. Designed for flexibility, it is available in F13, F20, and Dummy functions to suit both active and inactive door applications.

Functions

• F13 Mortise: Standard keyed entry function. The key operates both bolts, and the inside lever retracts latch and deadbolt simultaneously.
• F20 Mortise: Always locked from the outside with a temporary override mechanism. Includes stop and release buttons for control and convenience.
• Dummy Function: For inactive or decorative doors with the same dimensions as active sets. Often used as matching trim or a jamb set for double doors.

Product Details

• Can be ordered with any Sandcast Bronze knob or lever for the interior trim
• Available in active or dummy function (same dimensions)
• Sold as a complete set: Includes latch and strike plate
• Backset: 2-1/2″ or 2-3/4″
• Standard mortise door prep: ANSI A115.1
• UL Listed mortise: ANSI F13 or F20 function
• Schlage C keyway
• Handing required for all mortise locks
• Available finishes: All three Sandcast Bronze finishes

Lock Features

• Heavy-duty mortise lock body
• UL 180-minute fire rating
• Forged deadbolt latch with Anti-Saw inserts
• Deadlocking latch bolt
• Anti-pick security latch
• Anti-friction latch trigger
• Stop and release buttons (for F20 function)

Specifications

• Exterior Projection: 3-1/8″
• Interior Projection: Varies by handle style
• Overall Grip Thickness: 1-3/4″
• Clearance (door to grip): 1-3/4″
• Plate Thickness: 1/2″
• Standard Door Thickness: 1-3/4″ (specify if thicker)
• Locks for in-swing doors are standard — specify if out-swing is required

Door Thickness Options

• Standard: 1-3/4″ door with 1-1/2″ threaded cylinder, 2″ spindle, thumbpress, strikeplate
• Extended: 1-7/8″ to 2-1/4″ door with extended screws and spindle
• Extended: 2-3/8″ to 2-5/8″ door with 1-3/4″ threaded cylinder and 2-1/4″ spindle
• 2-3/4″ door thickness requires 2″ threaded cylinder

The Emtek Rectangular Sectional Mortise delivers the perfect blend of durability, style, and flexibility. Whether installed as a functional keyed lock or a coordinating dummy set, this design offers a cohesive, handcrafted bronze look that evolves beautifully with time.
