Description

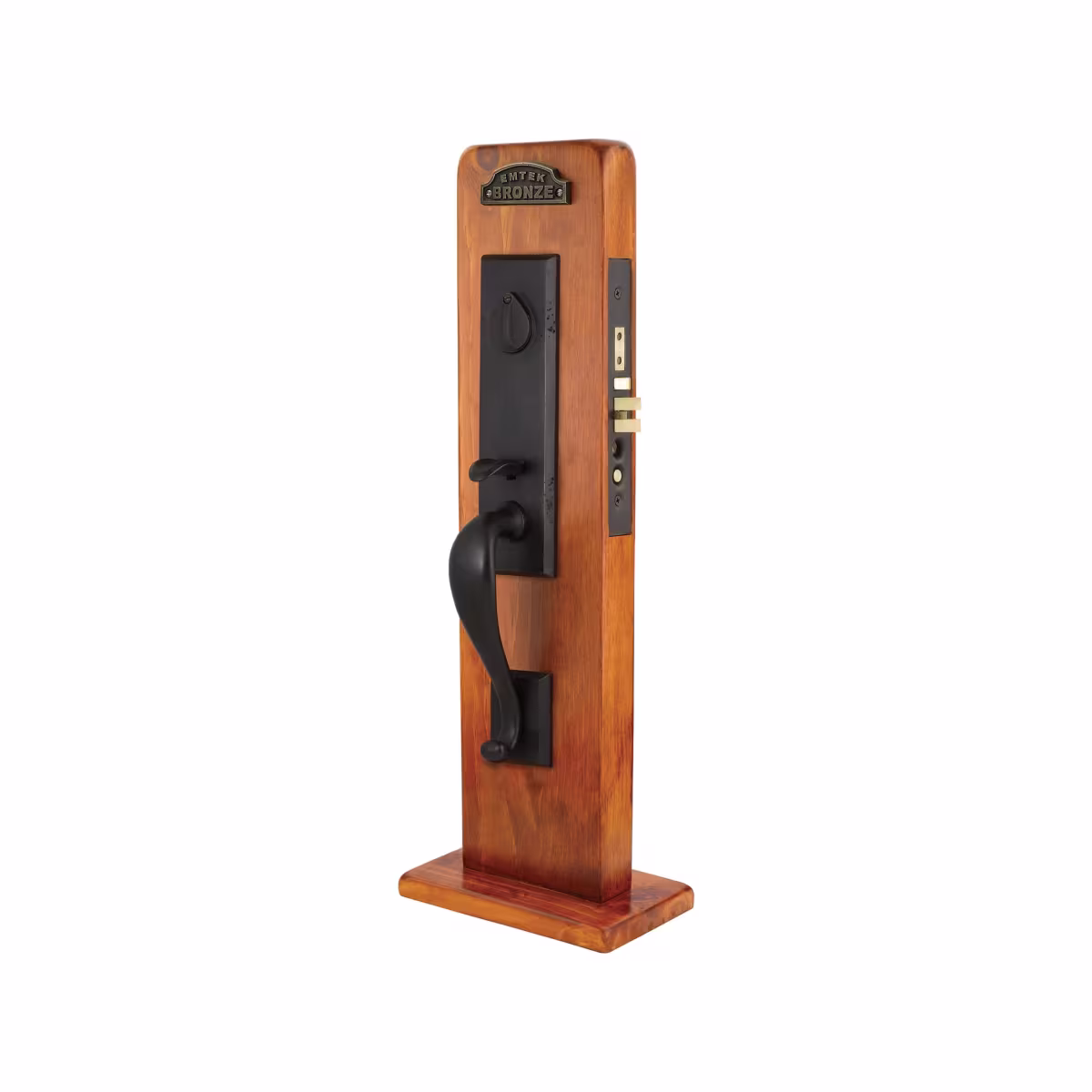

Emtek Rectangular Monolithic Mortise

The Emtek Rectangular Monolithic Mortise combines contemporary elegance with exceptional durability. Crafted from Sandcast Bronze, this entry set offers a refined rectangular design with subtle beveled edges and a decorative key cylinder flap. As a result, it perfectly balances rustic texture with modern precision. Moreover, its solid construction ensures long-term performance, making it ideal for both classic and modern doors.

Designed for versatility, this mortise set can be ordered with any Sandcast Bronze knob or lever for the interior trim. Each set is sold complete, including the latch and strike plate, and fits 2-1/2″ or 2-3/4″ backsets. Therefore, installation is straightforward and compatible with standard mortise door prep ANSI A115.1.

Functions

• F13 Mortise – Operates as a standard keyed lock. The key on the outside operates both bolts, while the inside lever retracts the latch and deadbolt simultaneously. Additionally, it features a UL180-minute fire rating, a forged deadbolt latch with anti-saw inserts, an anti-friction latch trigger, and a deadlocking latch bolt for reliable protection.
• F20 Mortise – The key outside operates both bolts and remains locked from the exterior. However, it includes a temporary override button on the latch plate and a stop/release mechanism for convenience. Like the F13, it also offers a UL180-minute fire rating and heavy-duty construction.
• Dummy Function – Designed for inactive or decorative doors, dummy sets have no latch but maintain a full mortise appearance. They are often paired with active F13 or F20 sets on double or French doors, ensuring a cohesive look throughout.

Features

• Standard mortise door prep ANSI A115.1
• UL Listed mortise lock body (F13 or F20 function)
• Schlage C keyway for dependable security
• Forged deadbolts with anti-saw inserts
• Anti-pick latches and anti-friction triggers for smooth operation
• Stop and release buttons available in F20
• 180-minute fire rating for enhanced safety
• Handing required for all mortise locks

Specifications

• Standard door thickness: 1-3/4″ (specify if thicker)
• For in-swing doors (out-swing available upon request)
• Available functions: F13, F20, Dummy
• Available backsets: 2-1/2″ or 2-3/4″

The Sandcast Bronze Collection is known for its authentic texture and natural patina. Over time, this copper-based alloy develops a “living finish” that reveals unique wear patterns, creating a rich and timeless character. Additionally, it is available in Flat Black Bronze, Medium Bronze, and Tumbled White Bronze finishes, allowing you to match your desired aesthetic perfectly.
