Description

Emtek Narrow Modern Rectangular Pocket Door Mortise Lock

The Emtek Narrow Modern Rectangular Pocket Door Mortise Lock provides a slim, contemporary option for sliding interior doors. Its minimalist rectangular plates and solid brass construction deliver both durability and a clean architectural look.

Functions

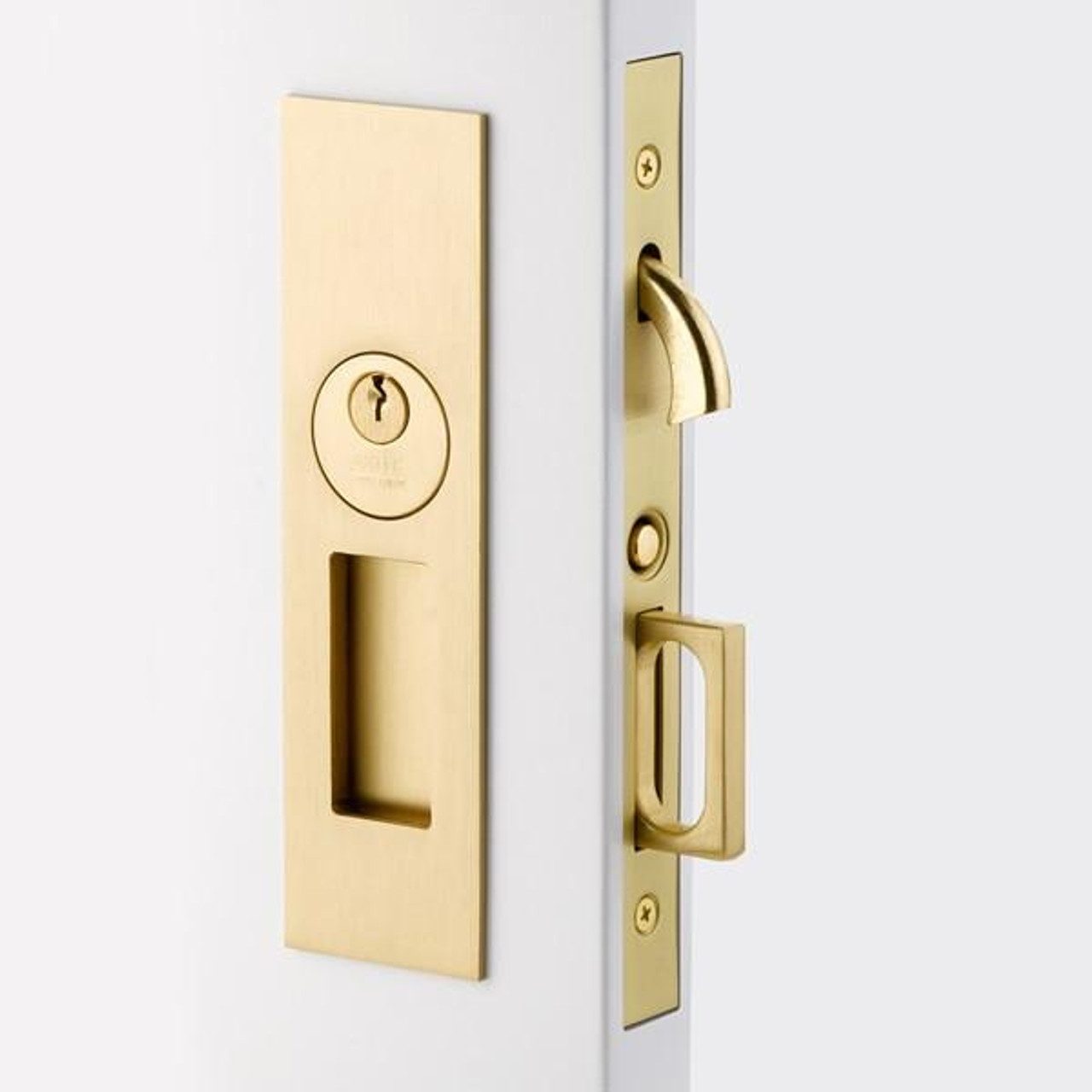

• Keyed – Includes mortise lock body with cylinder, 2 keys, strike plate, and finish-matching screws.

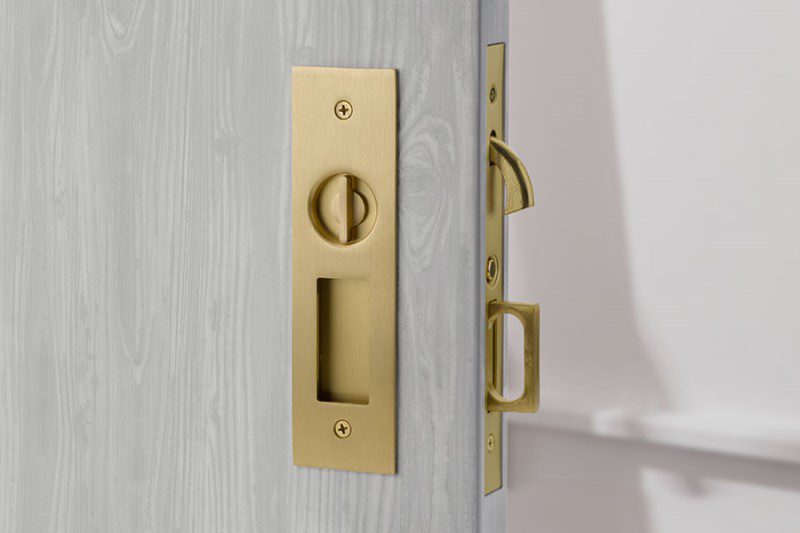

• Privacy – Features mortise lock body, strike plate, and finish-matching screws for simple installation.

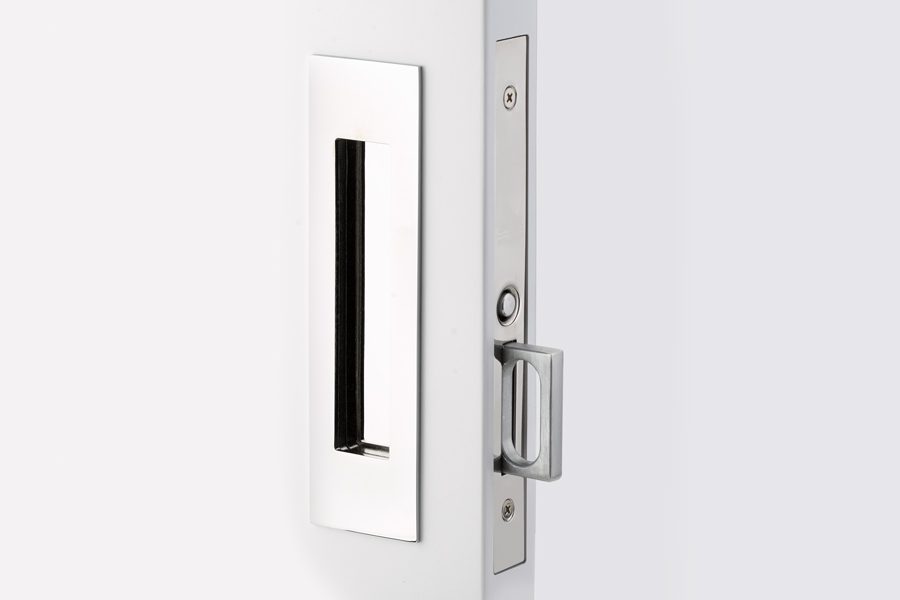

• Passage – Supplied with mortise lock body and finish-matching screws, making it ideal for non-locking doors.
• Dummy – Comes with dummy mortise lock body, strike plate, and finish-matching screws; it also accepts the latch from Keyed and Privacy locks.

Specifications

• Trim Style: Narrow rectangular, 2″ W x 7 1/4″ H
• Trim Plate Thickness: 1/8″
• Minimum Door Thickness: 1 3/8″ (must specify thickness for all functions)
• Handing: Not required, which simplifies ordering
• Split Finish: Specify exterior or interior finish if needed
• Keying: Pocket door locks may be keyed alike with each other; however, they cannot be keyed alike with other Emtek product families

Materials & Durability

Because the lock is built with a solid mortise lock box and brass trim plates, it delivers reliable, long-term performance. Furthermore, the integrated push-button edge pull ensures smooth sliding action while maintaining the lock’s streamlined profile.

Finishes

This series is available in 7 finishes, allowing you to coordinate with other Emtek hardware.

• Flat Black, Satin Brass, Unlacquered Brass, and Oil Rubbed Bronze include brass push buttons and D-rings, as well as a latch on Keyed and Privacy functions.
• Polished Chrome, Satin Nickel, and Polished Nickel include chrome push buttons and D-rings, along with a lock on Keyed and Privacy functions.

Installation

Each lock is sold as a complete set, including screws and strike plate. Since handing is not required, installation is more straightforward. As a result, the solid mortise body and brass trim plates provide a stable, professional-grade fit when the correct door thickness is specified.
