Emtek Modern 5 1/2” C-C Keyed Sideplate Locksets – Brass

Emtek Modern 5 1/2” C-C Keyed Sideplate Locksets - Brass
Emtek Modern 5 1/2” C-C Keyed Sideplate Locksets - Brass - Image 2
Emtek

Emtek™ elegant and decorative innovation is the designers choice for customization within a home, usually ships within 2-3 days. browse the Emtek Webshop

Quality that you can see and feel is built into each and every Emtek product. It’s about form and function working in beautiful harmony. Our promise is to deliver the best performing hardware, always using quality materials. Because when you touch an Emtek product, we want you to feel safe, confident and impressed.

Manufacturers Website

Emtek Modern 5 1/2” C-C Keyed Sideplate Locksets – Brass

Original price was: $331.00.Current price is: $264.80.

Sleek Style, Strong Security

Enhance your entryway with a streamlined lock design crafted for modern interiors. Its durable brass build delivers lasting performance with a sophisticated touch.

  • Please Add Door Thickness to Comments
Choose the function based on your door’s needs—Single Cylinder, Double Cylinder, Dummy, or EMPowered Upgrade (EMP2)—to match your desired level of security and convenience.
Choose interior handle
Select a knob option
Select a lever option
Select Stem Style
HANDING OF DOOR IS ALWAYS DETERMINED FROM THE OUTSIDE HINGES: E.g. if from the OUTSIDE, hinges are on the left = it is a Left Hand door. If from the OUTSIDE, hinges are on the right = it is a Right Hand door • The outside of an exterior door is the street or entrance side. • The outside of a room door is the hall side.
Select a keyway
Select how you would like your lock keyed
Please enter the 5-digit code of the key number you want to match
Select your latch type based on your door’s requirements, choose between the standard latch or the 28° rotation latch, depending on the type of knob or lever feel you prefer.
Choose Include Interconnect Device if you want the deadbolt and latch to retract together with one interior motion for faster exit. Select Standard Operation if you prefer the latch and deadbolt to function separately.
Please include any comments we should know about your order.
Product total
Options total
Grand total
SKU 8114, 8214, 8014 Categories , Tags , ,

Description

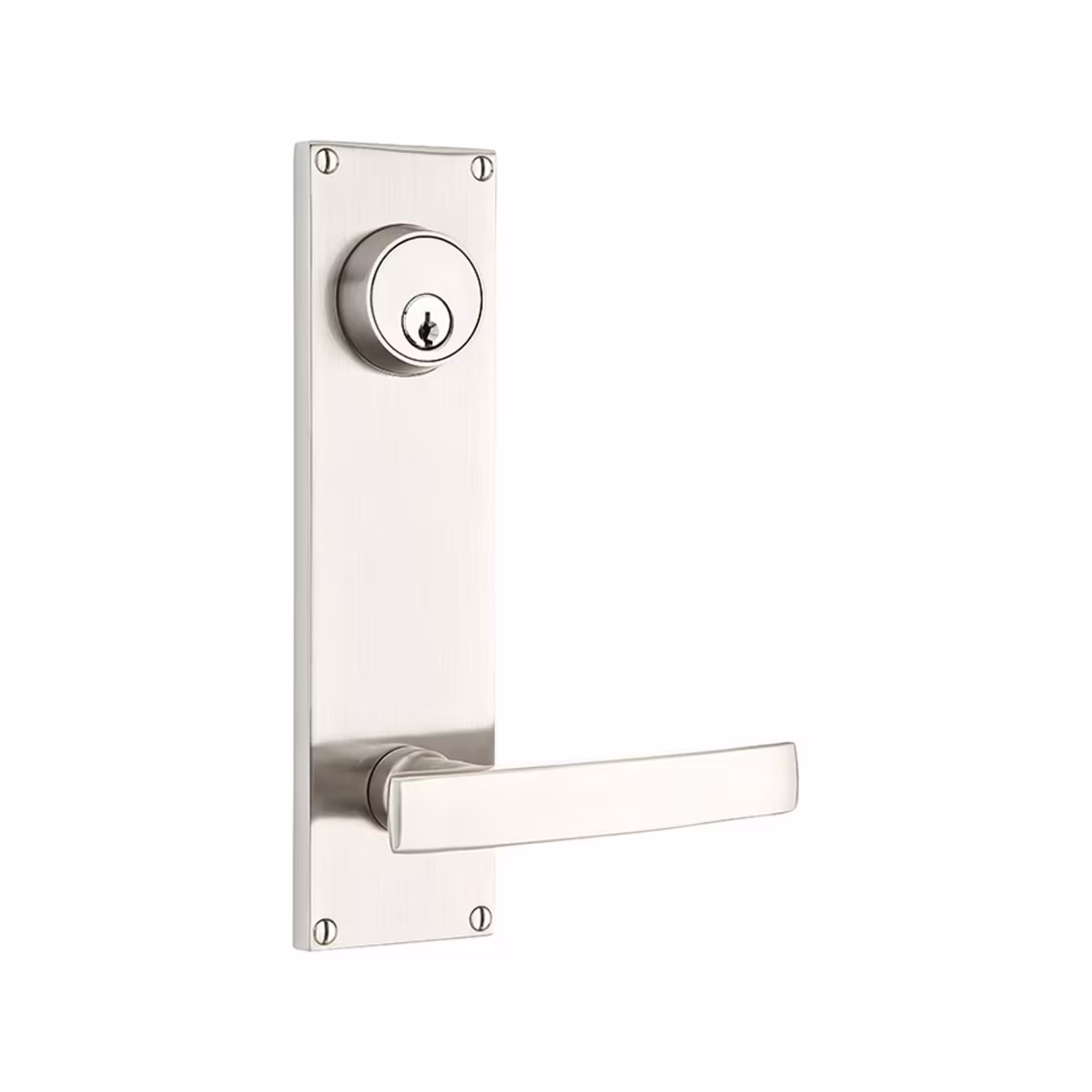

Emtek Modern 5 1/2” C-C Keyed Sideplate Locksets – Brass

The Emtek Modern 5 1/2” C-C Keyed Sideplate Locksets – Brass feature a streamlined 9-inch sideplate height that enhances modern doors with clean geometry and minimalistic styling. Because this design blends solid brass construction with multiple functional and aesthetic options, it provides both contemporary elegance and reliable performance for residential entries.

Available Functions
  • Single Cylinder – Exterior key with interior thumbturn for everyday security.
  • Double Cylinder – Key required on both sides for added protection near glass openings.
  • Dummy – Non-operational trim ideal for double doors or aesthetic-only applications.
  • EMPowered™ Upgrade (EMP2) – Converts the lock into a smart-enabled system controlled through the Yale Access App.
Key Specifications
  • 9-inch sideplate height
  • 5-1/2” Center-to-Center hole spacing
  • Compatible with Brass Knob & Lever interior options
  • 7 finish options
  • Handing required for leversets in keyed functions or when using an interconnect device
  • Two standard 2-1/8” door preps
  • Standard latch for 2-3/8” backset (2-3/4” available upon request)
  • Square-corner latch, strike, and faceplates standard; radius available
  • Standard rotation latch; 28° rotation latch optional
  • Schlage C Keyway standard; Weiser® (WR5) available with no upcharge
  • Can be keyed into existing Weiser® systems
  • Complete set includes latch and strike plate
  • EMPowered™ interior trim comes pre-configured with Square Rosette

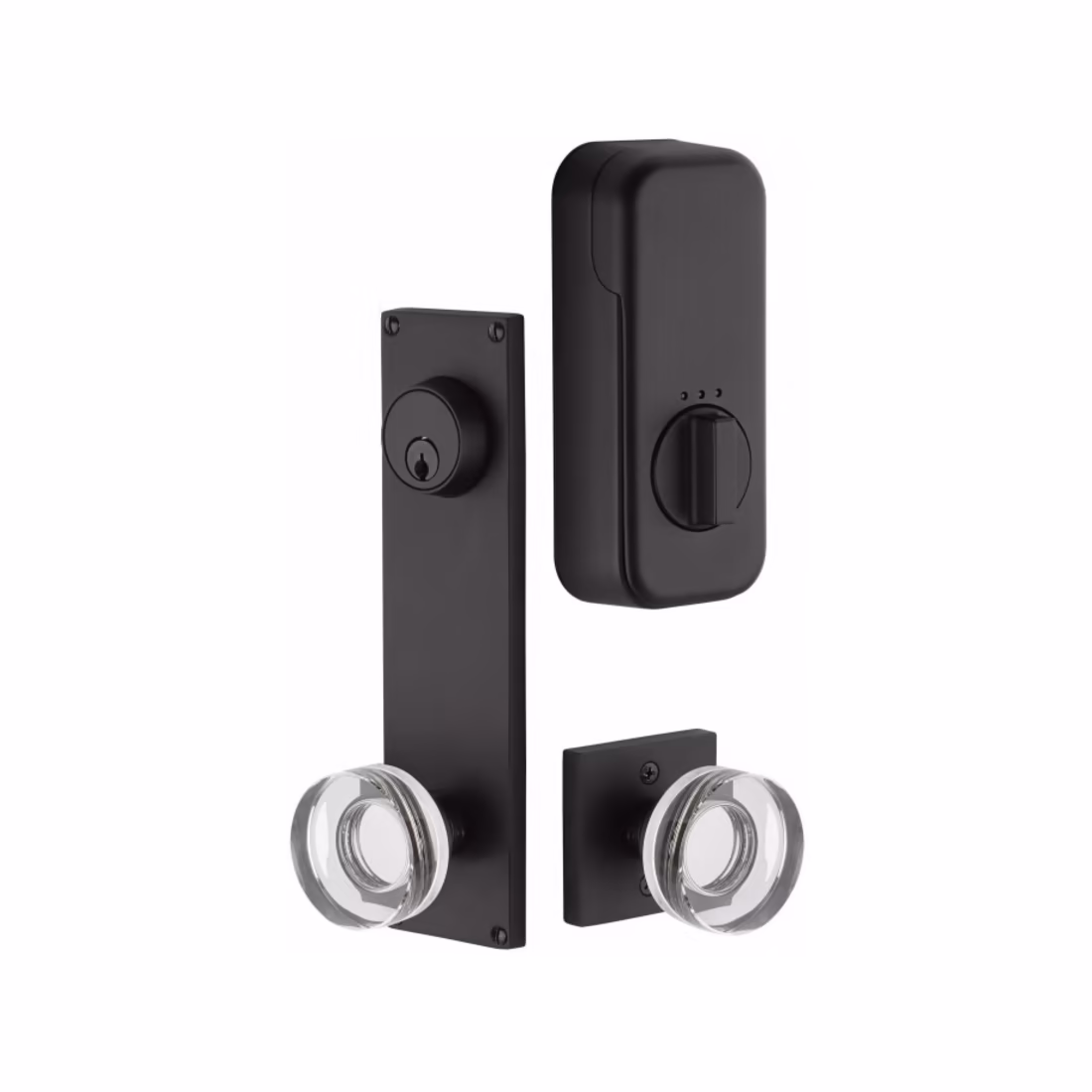

EMPowered™ Smart Lock Upgrade (EMP2)

The EMPowered™ motorized smart lock replaces the interior trim to deliver discreet smart functionality—remote access, auto-unlock, and monitoring through the Yale Access App—while maintaining the exterior design.

Modern Design Inspiration

The Modern Series highlights crisp lines, squared profiles, and an uncluttered aesthetic, offering a timeless contemporary look for any door.

What Is a Sideplate?

A sideplate is a tall backplate alternative—such as this 9-inch design—inspired by vintage mortise hardware but updated with a modern tubular latch. It pairs seamlessly with any Emtek knob or lever style.
