Emtek Manhattan Mortise

Emtek Manhattan Mortise
Emtek Manhattan Mortise - Image 2
Emtek

Emtek™ elegant and decorative innovation is the designers choice for customization within a home, usually ships within 2-3 days. browse the Emtek Webshop

Quality that you can see and feel is built into each and every Emtek product. It’s about form and function working in beautiful harmony. Our promise is to deliver the best performing hardware, always using quality materials. Because when you touch an Emtek product, we want you to feel safe, confident and impressed.

Manufacturers Website

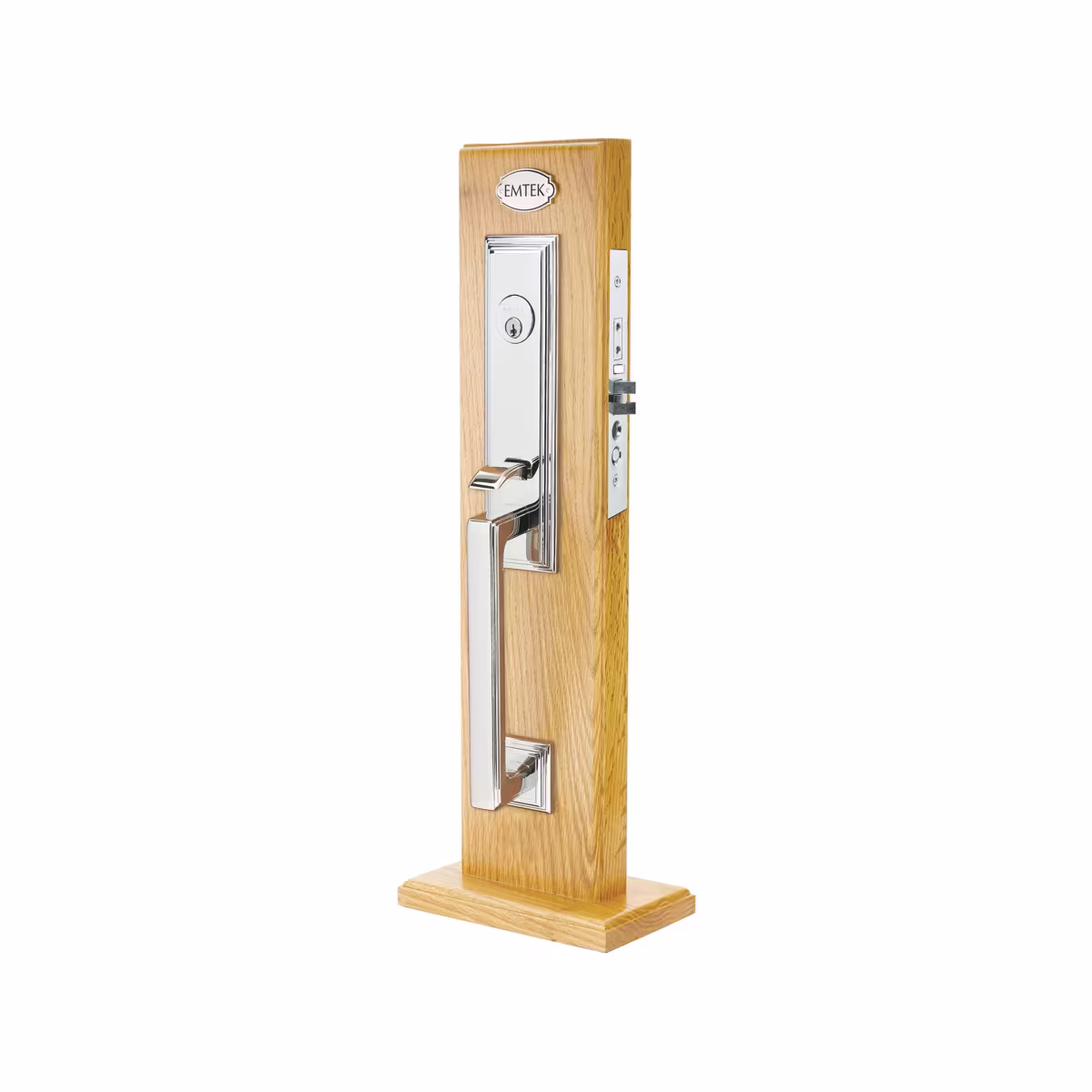

Emtek Manhattan Mortise

Original price was: $986.00.Current price is: $788.80.

Bold Style, Solid Security

The Emtek Manhattan Mortise features clean lines and solid brass construction, delivering modern elegance, reliable strength, and smooth performance for both entry and dummy doors.

  • Add Door Thickness to Comments
Choose interior handle
Select a knob option
Select a lever option
Select Stem Style
HANDING OF DOOR IS ALWAYS DETERMINED FROM THE OUTSIDE HINGES: E.g. if from the OUTSIDE, hinges are on the left = it is a Left Hand door. If from the OUTSIDE, hinges are on the right = it is a Right Hand door • The outside of an exterior door is the street or entrance side. • The outside of a room door is the hall side.
Choose Handleset Function
Backset is the measurement from the edge of the door to the center of the lock.
Select how you would like your lock keyed
Please enter the 5-digit code of the key number you want to match
Please include any comments we should know about your order.
Product total
Options total
Grand total
SKU 3306, 3006 Category Tags , ,

Description

Emtek Manhattan Mortise

The Emtek Manhattan Mortise combines modern precision with timeless design. With its clean lines and bold rectangular form, it delivers both style and strength for contemporary or transitional doors. Crafted from solid brass, this mortise entry set ensures reliable performance, smooth operation, and lasting security.

Available in both entry and dummy configurations, the Manhattan can be paired with any Emtek brass knob or lever for the interior trim. Each set comes complete with a latch, strike plate, and all necessary mounting hardware for straightforward installation.

Functions
  • F13 Mortise – Operates as a standard keyed lock. The exterior key controls both latch and deadbolt, while the interior lever retracts both simultaneously for smooth and secure access.
    F20 Mortise – Always locked from the outside, featuring stop and release buttons that allow temporary override when needed for added convenience.
    Mortise Dummy – A decorative, non-functional trim ideal for double or French doors, providing a cohesive look with active sets.
Key Features
  • Trim Style: Manhattan
  • Available Finishes: Multiple modern finishes to match any décor
  • Backset Options: 2-½” or 2-¾”
  • Standard Door Prep: ANSI A115.1
  • Keyway: Schlage C
  • Handing Required: Must be specified for all orders
  • UL Listed Mortise: Available in ANSI F13 or F20 functions
  • Standard Door Thickness: 1-¾” (specify if thicker)
  • Lock Type: Standard for in-swing doors; specify for out-swing applications
Heavy-Duty Construction
  • UL Listed with a 180-minute fire rating
  • Forged deadbolt latch with anti-saw inserts for superior protection
  • Deadlocking latch bolt prevents forced entry
  • Anti-pick security latches enhance tamper resistance
  • Anti-friction latch trigger ensures smooth, quiet operation
  • Stop and release buttons (F20 models only) for added flexibility
Installation
  • Fits standard mortise door prep (ANSI A115.1)
  • Compatible with wood or metal doors
  • Includes cylinder, spindle, and strike plate for secure fitting
  • Suitable for door thicknesses from 1-¾” to 2-¾”
  • Handing required for all mortise locks
  • In-swing doors are standard; specify for out-swing applications
