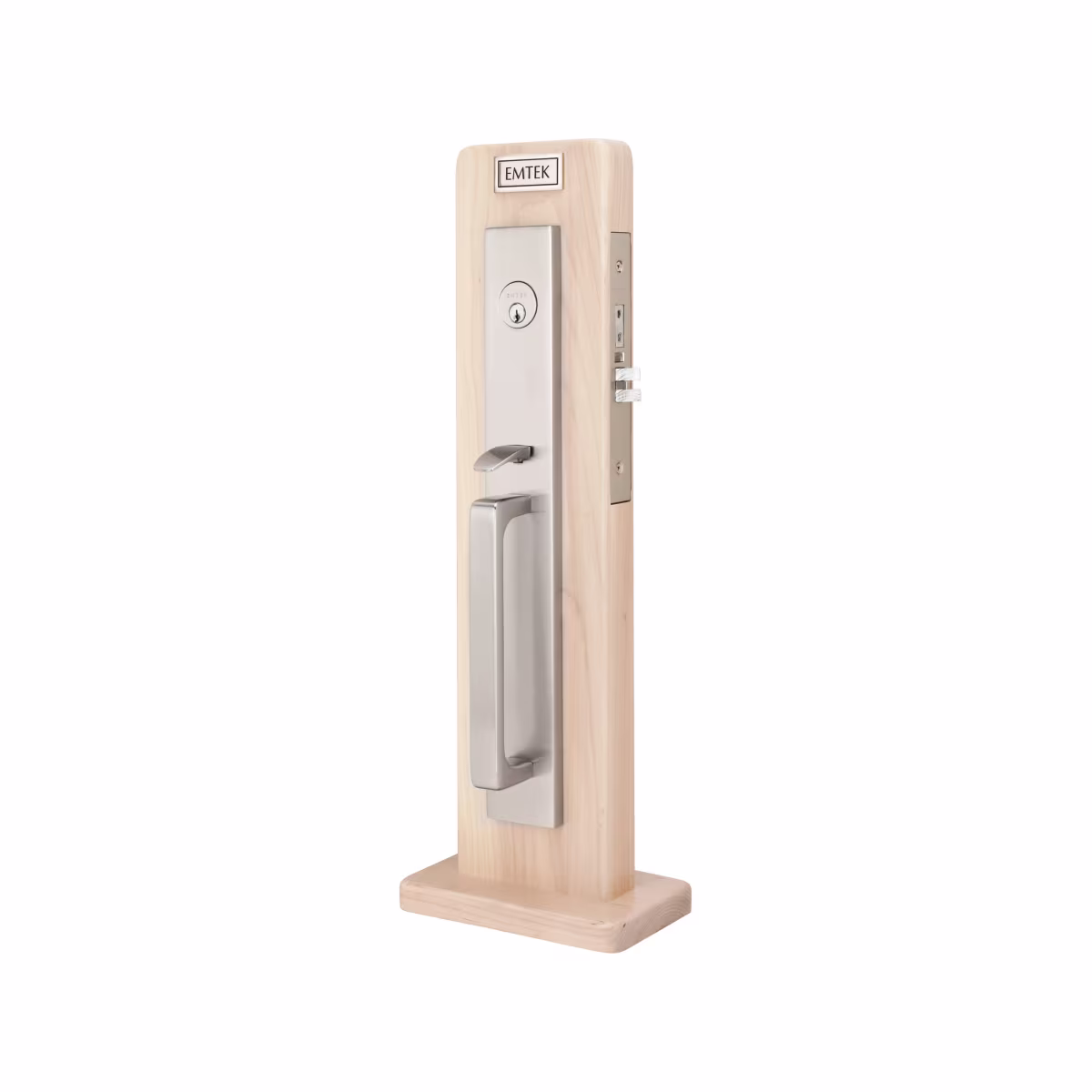

Emtek Lugano Mortise

The Emtek Lugano Mortise blends modern design with exceptional craftsmanship, offering both security and style. With its sleek rectangular shape and solid brass construction, it brings a contemporary yet timeless appeal to any door. Available in entry and dummy configurations, this mortise lock can be paired with any brass knob or lever for the interior trim. Moreover, each set is sold as a complete package, including the latch, strike plate, and all required mounting hardware.

Functions

• F13 Mortise – Operates as a standard keyed lock. The key from the outside controls both latch and deadbolt, while the inside lever retracts both simultaneously for effortless entry.
• F20 Mortise – Always locked from the outside, but includes stop and release buttons that allow temporary override when needed.
• Mortise Dummy – A non-functional decorative trim used on double or French doors, acting as a fixed handle for the inactive door.

Key Features

• Trim Style: Lugano
• Available Finishes: Six elegant finish options to match any décor
• Backset Options: 2-1/2″ or 2-3/4″
• Standard Door Prep: ANSI A115.1
• Keyway: Schlage C
• Handing Required: Must be specified for all orders
• UL Listed Mortise: Available in ANSI F13 or F20 functions

In addition, this model delivers performance and versatility suitable for both residential and commercial applications.

Heavy-Duty Construction

• UL Listed with a 180-minute fire rating
• Forged deadbolt latch with anti-saw inserts for added protection
• Deadlocking latch bolt prevents forced entry
• Anti-pick security latches ensure higher resistance
• Anti-friction latch trigger provides smooth, quiet operation
• Stop and release buttons (on F20 models) add convenience

Furthermore, every component is precision-engineered for lasting reliability.

Installation

• Fits standard mortise door prep (ANSI A115.1)
• Suitable for door thicknesses from 1-3/4” to 2-3/4”
• Includes correct cylinder, spindle, and strikeplate components
• Compatible with wood or metal doors
• Professional installation recommended for optimal alignment and function

The Emtek Lugano Mortise seamlessly combines modern aesthetics, robust engineering, and reliable security, making it an ideal choice for stylish, high-performance doors.
