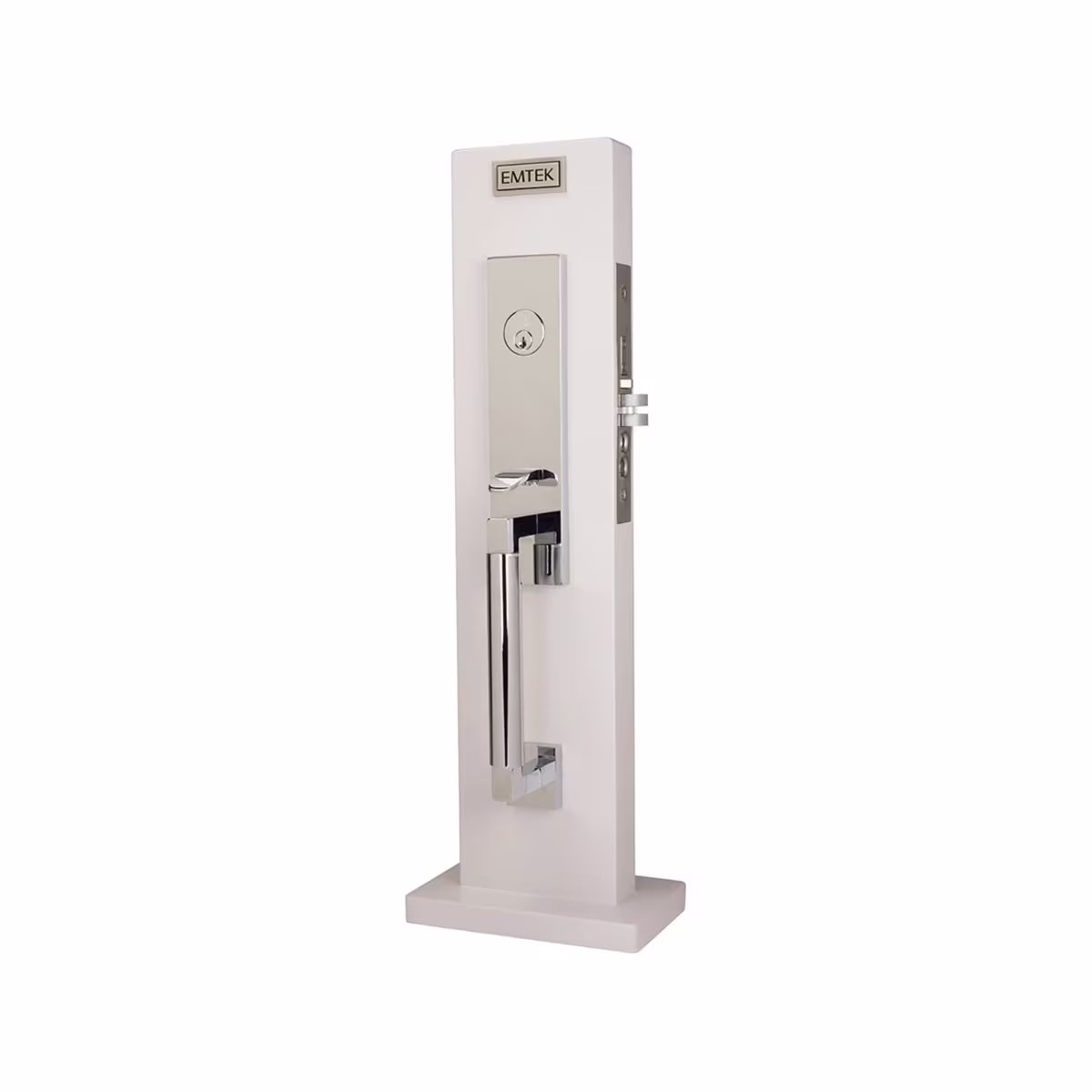

Emtek Hercules Smooth Monolithic Mortise

The Emtek Hercules Smooth Monolithic Mortise combines modern strength with refined simplicity. Crafted from solid brass, it offers exceptional durability, reliable performance, and a sleek profile. Altogether, this entry set makes a bold statement on contemporary doors while ensuring long-lasting quality.

Functions

Available in three functions:

• F20 Mortise Entry Set (High-Security / Classroom Function)

• Remains locked from the outside at all times.
• Features a temporary override activated by pressing the release button on the latch plate.
• Cancel override using the stop button or by projecting the deadbolt.

Includes:

• Forged deadbolt latch
• Anti-saw inserts
• Anti-friction latch trigger

• F13 Mortise Entry Set (Standard Keyed Entry)

• Operates as a traditional keyed entry set. Key (outside) operates both bolts. Inside lever retracts latch and deadbolt simultaneously.

Includes:

• UL 180-minute fire rating
• Forged deadbolt latch with anti-saw inserts
• Anti-friction latch trigger
• Deadlocking latch bolt

• Mortise Dummy (Inactive Function)

• Non-operational; contains no latch or locking mechanism.
• Ideal for double or French doors as the inactive side.
• Includes a strike plate to receive the active door’s latch.

Specifications

• Backset: 2½″ or 2¾″
• Keyway: Schlage C
• Knob / Lever Style: Compatible with any Emtek brass knob or lever for interior trim.
• Handing: Required for lever styles only. Specify LH (Left Hand) or RH (Right Hand) according to door swing.
• Finish Options: Offered in 7 modern finishes to coordinate with a variety of design themes.
• Door Thickness:

• • Standard: 1¾″

  • Extended: 1⅞″ – 2¼″

  • Extended Plus: 2⅜″ – 2¾″

Product Details

• Trim Style: Hercules Smooth Monolithic
• Trim Height: 17 ⅝″
• Trim Width: 2½″
• Handle Grip Height: 10¼″
• Handle Projection: 2″
• Handle Width: 1¾″
• Grip Option: Smooth finish only
• Includes: Latch, strike plate, and mounting hardware

Installation

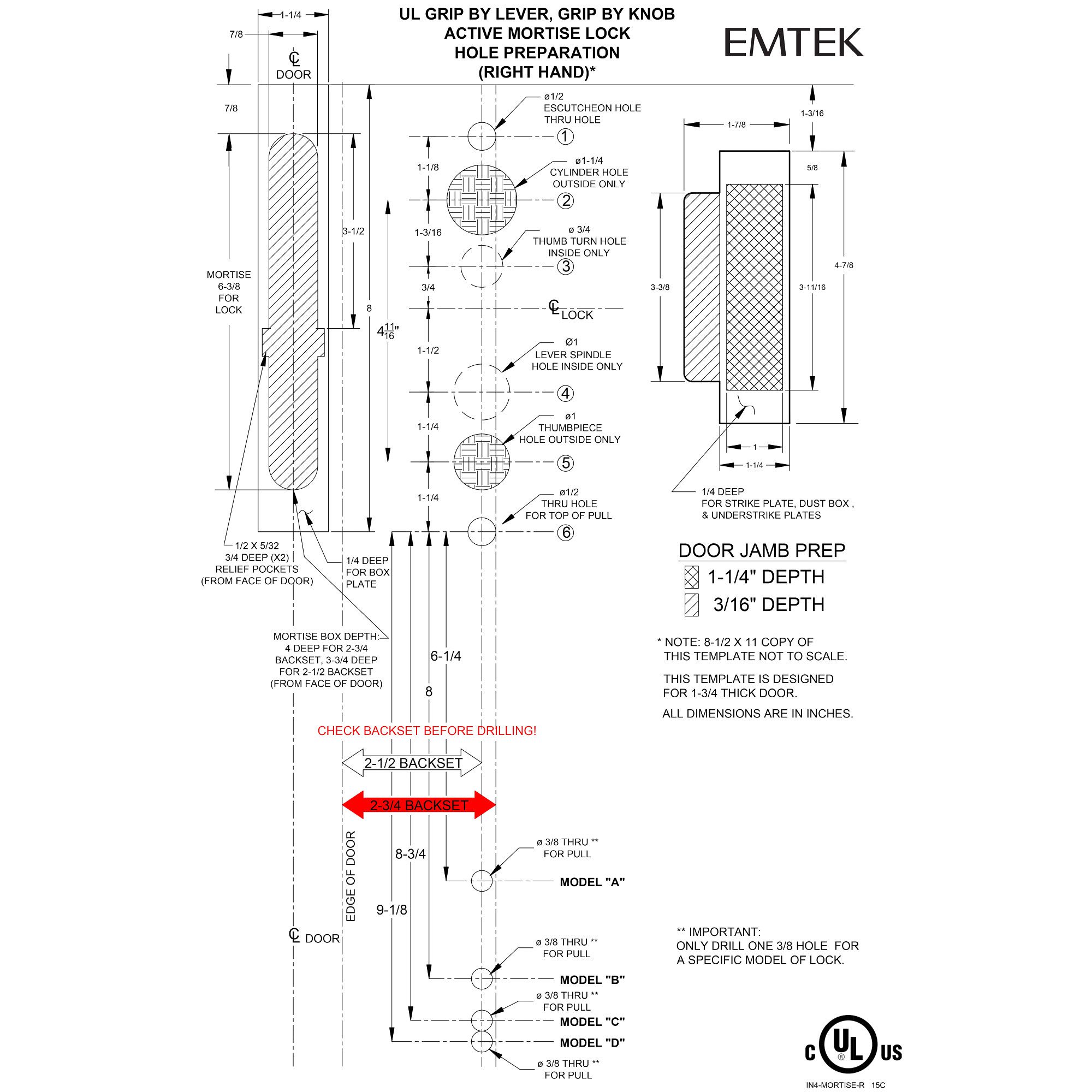

This mortise entry set is designed for standard mortise door prep (ANSI A115.1). It requires a mortise pocket in the door edge to accommodate the lock body. For optimal performance, follow Emtek’s installation guide to ensure proper fit and secure alignment.

Design Highlight

With its clean rectangular trim and solid smooth grip, the Hercules Smooth Monolithic captures the essence of modern design. Precision-machined from solid brass, it provides both refined aesthetics and lasting performance. Ultimately, it stands as a perfect balance of form and function, ideal for today’s modern entryways.
