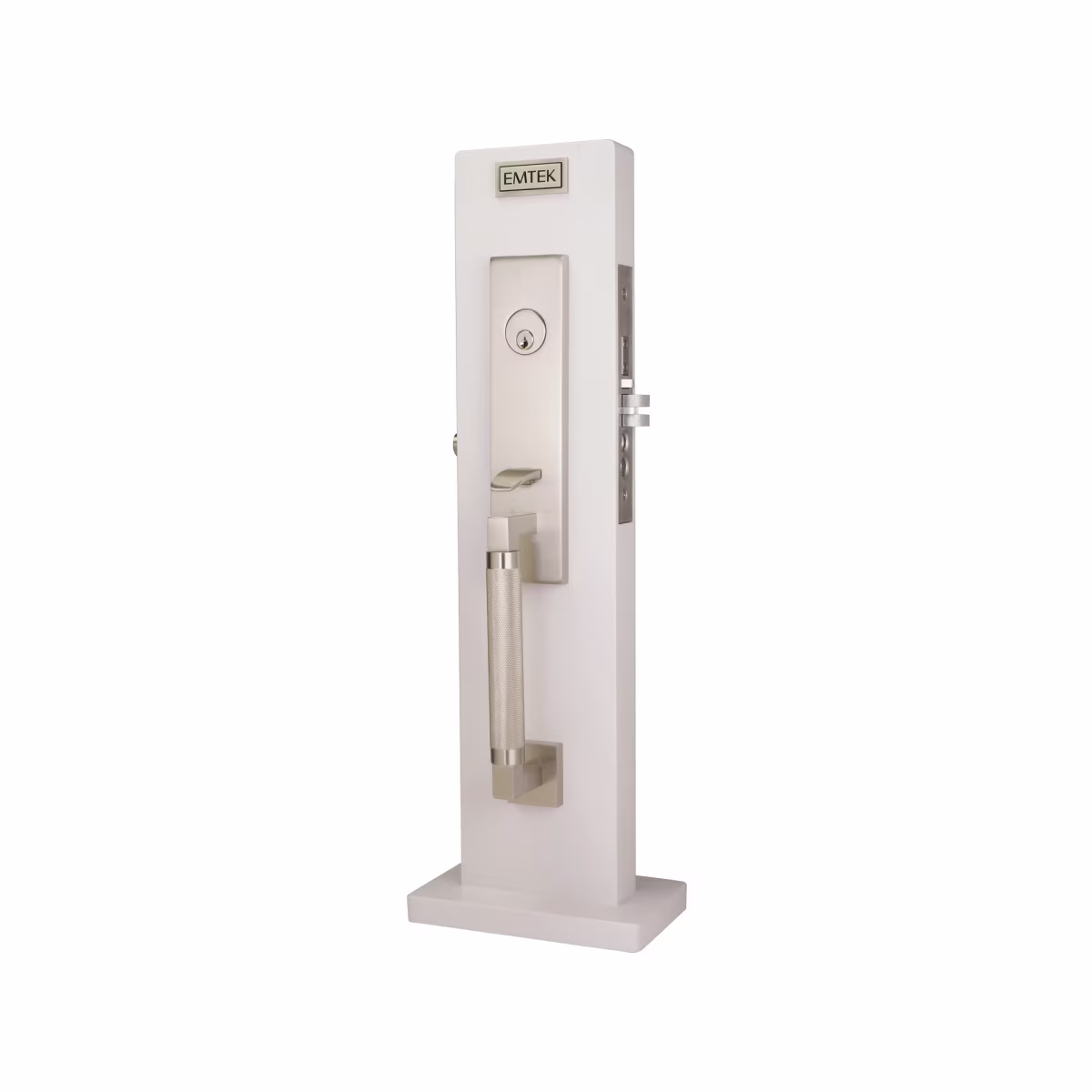

Emtek Hercules Knurled Monolithic Mortise

Emtek Hercules Knurled Monolithic Mortise
Emtek Hercules Knurled Monolithic Mortise - Image 2
Emtek

Emtek™ elegant and decorative innovation is the designers choice for customization within a home, usually ships within 2-3 days. browse the Emtek Webshop

Quality that you can see and feel is built into each and every Emtek product. It’s about form and function working in beautiful harmony. Our promise is to deliver the best performing hardware, always using quality materials. Because when you touch an Emtek product, we want you to feel safe, confident and impressed.

Manufacturers Website

Emtek Hercules Knurled Monolithic Mortise

Original price was: $986.00.Current price is: $788.80.

Industrial Texture, Modern Elegance

The Emtek Hercules Knurled Monolithic Mortise Entry Set pairs solid brass strength with a bold knurled grip for a striking, tactile design. Built to ANSI A115.1 standards and available in multiple functions and finishes, it’s the perfect fusion of durability, security, and contemporary style for modern entry doors.

  • Add Door Thickness to Comments
Choose interior handle
Select a knob option
Select a lever option
Select Stem Style
HANDING OF DOOR IS ALWAYS DETERMINED FROM THE OUTSIDE HINGES: E.g. if from the OUTSIDE, hinges are on the left = it is a Left Hand door. If from the OUTSIDE, hinges are on the right = it is a Right Hand door • The outside of an exterior door is the street or entrance side. • The outside of a room door is the hall side.
Choose Handleset Function
Backset is the measurement from the edge of the door to the center of the lock.
Select how you would like your lock keyed
Please enter the 5-digit code of the key number you want to match
Please include any comments we should know about your order.
Product total
Options total
Grand total
SKU 3337, 3037 Category Tags , ,

Description

Emtek Hercules Knurled Monolithic Mortise

The Emtek Hercules Knurled Monolithic Mortise combines contemporary aesthetics with robust craftsmanship. Constructed from solid brass, this mortise entry set delivers enduring strength and a refined tactile experience. The knurled grip offers a distinctive industrial edge that elevates any modern entryway while providing exceptional comfort and control.

Built for precision and performance, the Hercules Knurled Monolithic is designed to complement Emtek’s Bauhaus-inspired hardware collection, ensuring both visual harmony and long-term reliability.

Function Options
  • F13 Mortise Function (Entry Set): Secure keyed access from the exterior; interior lever retracts both latch and deadbolt simultaneously.
  • F20 Mortise Function (Entry Set): Always locked from the outside; includes a temporary override mechanism for high-security applications.
  • Dummy Function: Non-operational; ideal for inactive or double-door setups where a latch is not required.
Product Details
  • Trim Style: Hercules Knurled Monolithic
  • Material: Solid Brass
  • Keyway: Schlage C for smooth key operation
  • Backset: 2½″ or 2¾″
  • Handing: Left Hand (LH) or Right Hand (RH) — required for lever styles
  • Door Thickness: Standard 1¾″ (specify if thicker)
  • Grip Type: Knurled
  • Available Finishes: 7
  • Includes: Latch, strike plate, cylinder, and mounting hardware
  • Compliance: Compatible with ANSI A115.1 standard mortise door prep
  • Security: UL 180-minute fire rating lock body
Dimensions
  • Trim Height: 17⅝″
  • Trim Width: 2½″
  • Handle Grip Height: 10¼″
  • Handle Projection: 2″
  • Handle Width: 1¾″
  • Exterior Projection: 2½″
  • Grip Thickness: 1″
  • Plate Thickness: ½″
Installation
  • Designed for standard mortise door preparation (ANSI A115.1).
  • Requires a mortise pocket in the door edge to accommodate the lock body.
  • Professional installation recommended for optimal alignment and performance.

The Emtek Hercules Knurled Monolithic Mortise merges industrial precision with timeless design. Its textured grip, sleek profile, and heavy-duty mortise construction make it a sophisticated yet durable choice for modern entryways.
