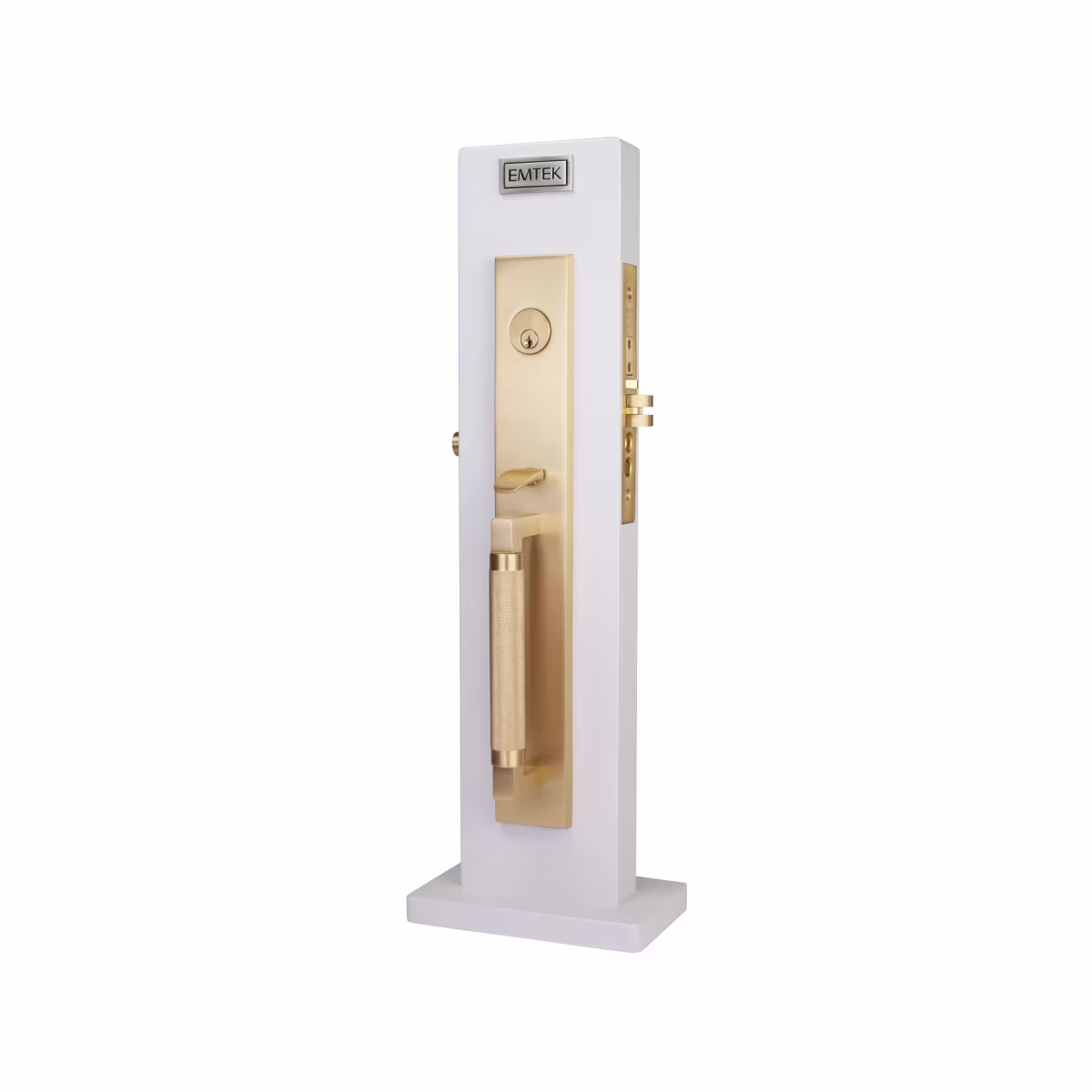

Emtek Hercules Knurled Full Length Mortise

The Emtek Hercules Knurled Full Length Mortise showcases bold design and refined craftsmanship. Featuring a solid brass construction and a knurled grip, it combines industrial character with modern elegance — a durable and stylish solution for contemporary entryways.

FUNCTIONS

• F13 MORTISE – Operates as a standard keyed lock. The key from outside operates both bolts, while the inside lever retracts the latch and deadbolt simultaneously. Built with a heavy-duty lock body, UL180-minute fire rating, forged deadbolt latch with anti-saw inserts, and anti-friction latch trigger.
• F20 MORTISE – Key outside operates both bolts, and the inside lever retracts latch and deadbolt simultaneously. Always locked from outside with a temporary override feature using a release button on the latch plate. Includes heavy-duty lock body, anti-saw inserts, and deadlocking latch bolt.
• MORTISE DUMMY – Dummy sets have no latch but require a bore hole. Used with an active mortise set for double or French doors, acting as a jamb with a strikeplate for the other door’s latch.

PRODUCT DETAILS

• Style: Hercules Full Length
• Keyway: Schlage C for smooth key operation
• Material: Solid Brass
• Grip: Knurled texture for enhanced grip and visual appeal
• Projection: 2-1/2″
• Grip Thickness: 1″
• Plate Thickness: 1/2″
• Clearance between door and grip: 1-1/2″ to 1-7/8″
• Same dimensions apply for dummy function

DIMENSIONS

• Height: 18″
• Width: 2-1/2″
• Interior Trim Height: 10-1/4″
• Interior Trim Width: 2-1/2″

DOOR THICKNESS

• Standard: 1-3/4″
• Extended: 1-7/8″ to 2-1/4″
• Extended Plus: 2-3/8″ to 2-3/4″
• Each configuration includes appropriate cylinder, spindle, screws, thumbpress, and strikeplate

FINISHES

• Available in 7 finishes to match any modern or traditional setting.

INSTALLATION

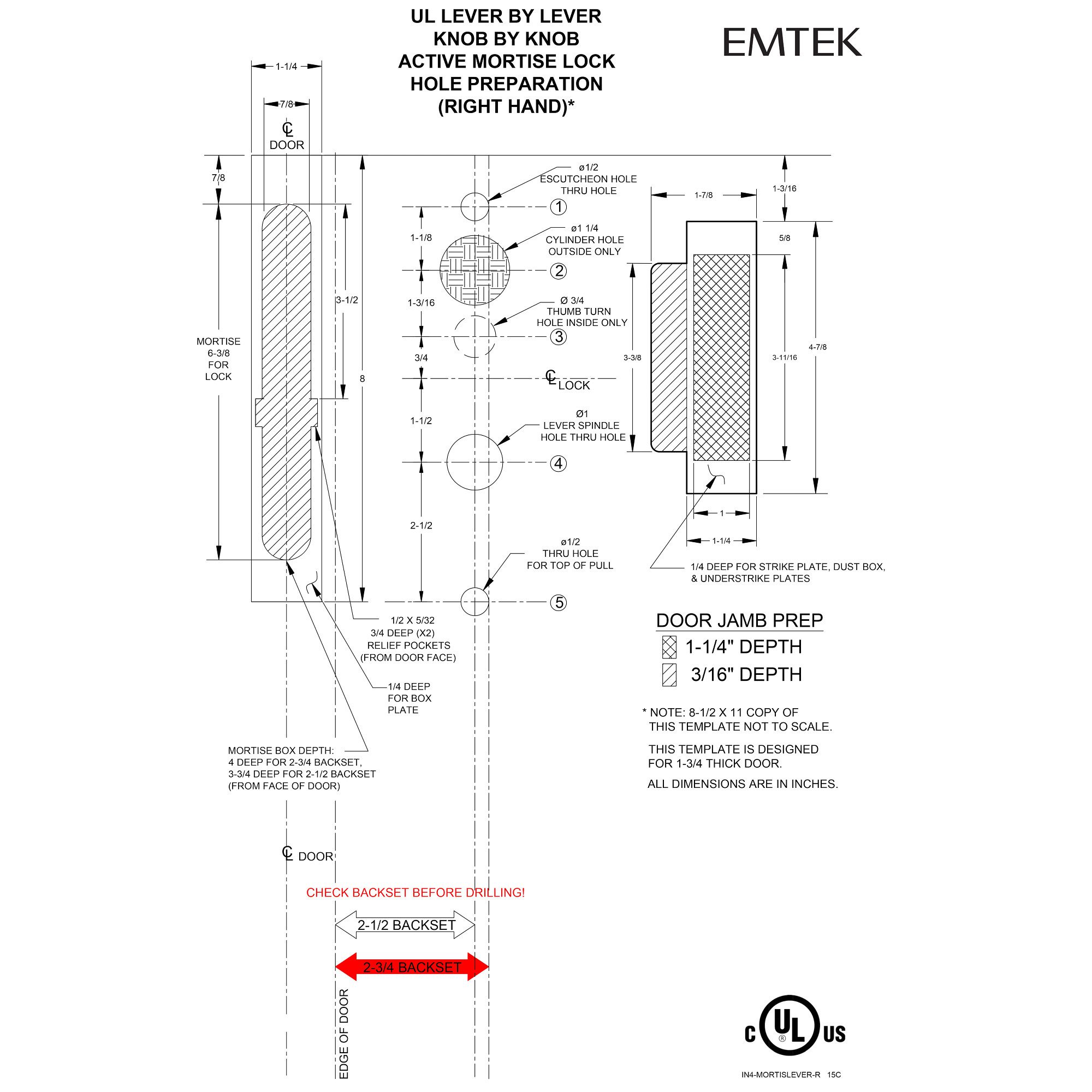

• Door Prep: UL Listed Mortise Door Prep ANSI A115.1
• Backset Options: 2-1/2″ or 2-3/4″
• Handing: Required for all mortise locks (in-swing standard, out-swing optional)
• Specify door thickness when ordering
