Description

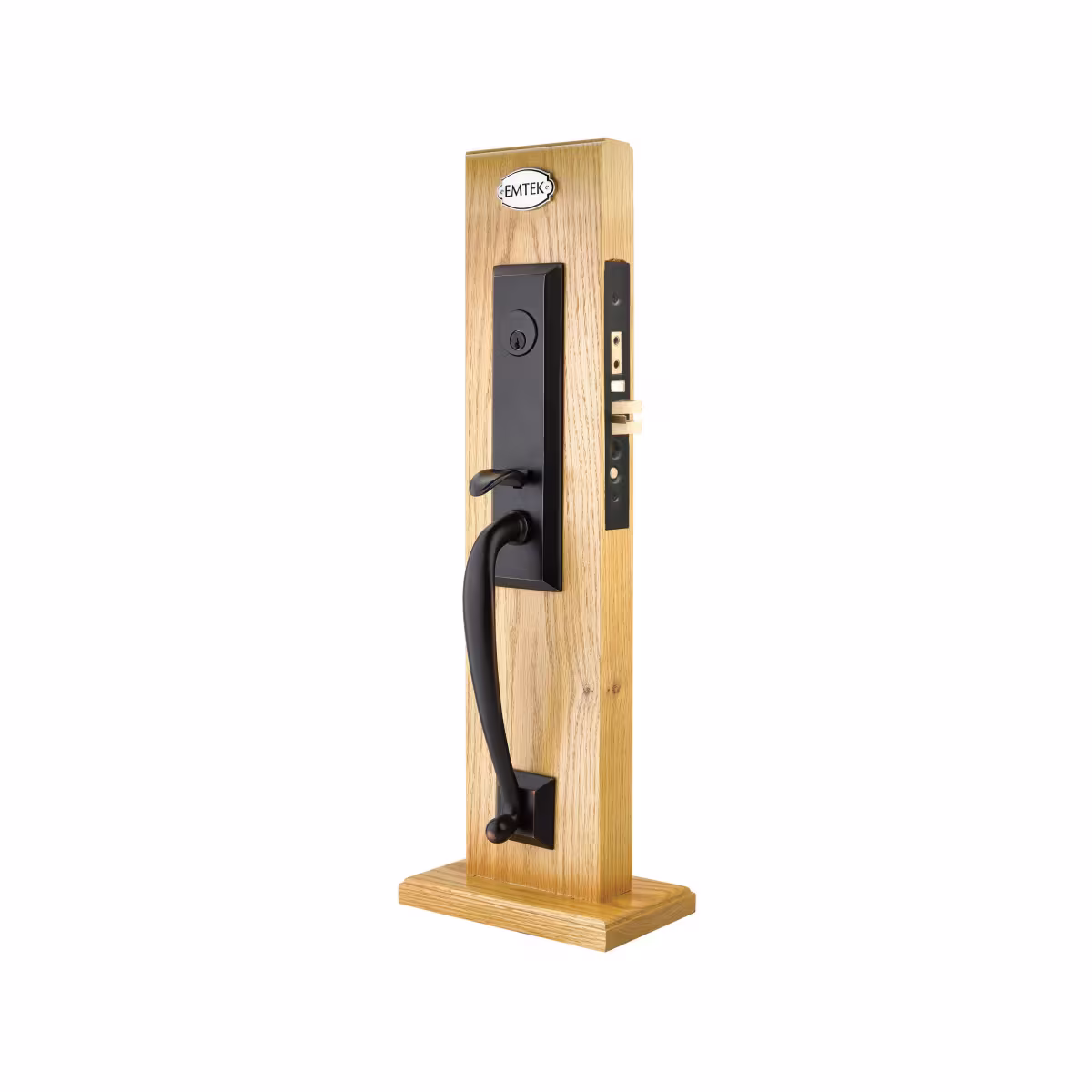

Emtek Harrison Mortise

The Emtek Harrison Mortise showcases refined simplicity with a strong, architectural profile—perfect for transitional or contemporary entryways. Crafted from solid brass, it delivers a clean, balanced look that complements both modern and classic door designs. Designed for durability and smooth operation, the Harrison provides the ideal combination of security, craftsmanship, and style.

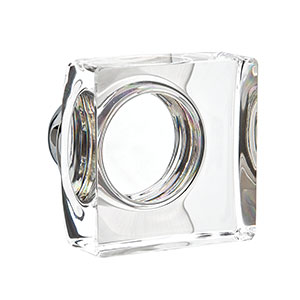

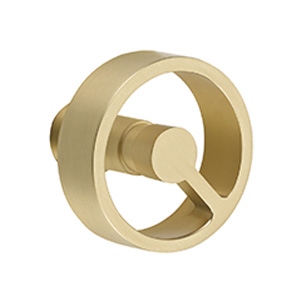

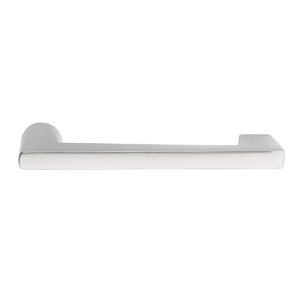

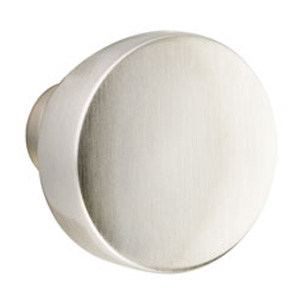

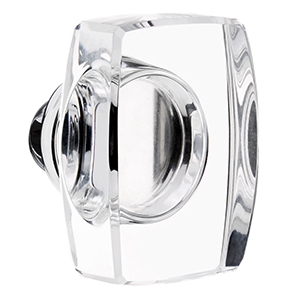

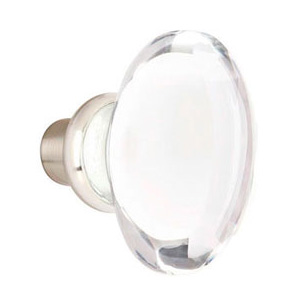

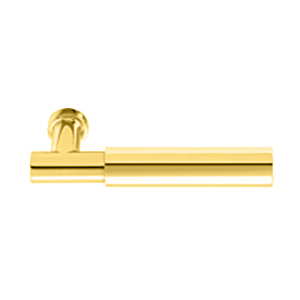

Available in both entry and dummy configurations, the Harrison can be paired with any Emtek brass knob or lever for the interior trim. Each complete set includes a latch, strike plate, and all necessary mounting hardware for straightforward installation.

Functions

• F13 Mortise – Operates as a standard keyed lock. The exterior key controls both latch and deadbolt, while the interior lever retracts both simultaneously for secure and convenient operation.
• F20 Mortise – Always locked from the outside, featuring stop and release buttons that allow temporary override when needed for added flexibility and safety.
• Mortise Dummy – Decorative, non-functional trim ideal for double or French doors, providing a unified look with active sets.

Key Features

• Trim Style: Harrison
• Backset Options: 2-½” or 2-¾”
• Standard Door Prep: ANSI A115.1
• Keyway: Schlage C
• Handing Required: Must be specified for all orders
• UL Listed Mortise: Available in ANSI F13 or F20 functions
• Standard Door Thickness: 1-¾” (specify if thicker)
• Lock Type: Standard for in-swing doors; specify for out-swing applications

Heavy-Duty Construction

• UL Listed with a 180-minute fire rating
• Forged deadbolt with anti-saw inserts for superior strength
• Deadlocking latch bolt prevents forced entry
• Anti-pick security latch for enhanced protection
• Anti-friction latch trigger ensures quiet, smooth performance
• Stop and release buttons (F20 models only) for added functionality

Installation

• Fits standard mortise door prep (ANSI A115.1)
• Compatible with wood or metal doors
• Includes cylinder, spindle, latch, and strike plate
• Suitable for door thicknesses from 1-¾” to 2-¾”
• Handing required for all mortise locks
• In-swing doors are standard; specify for out-swing configurations
