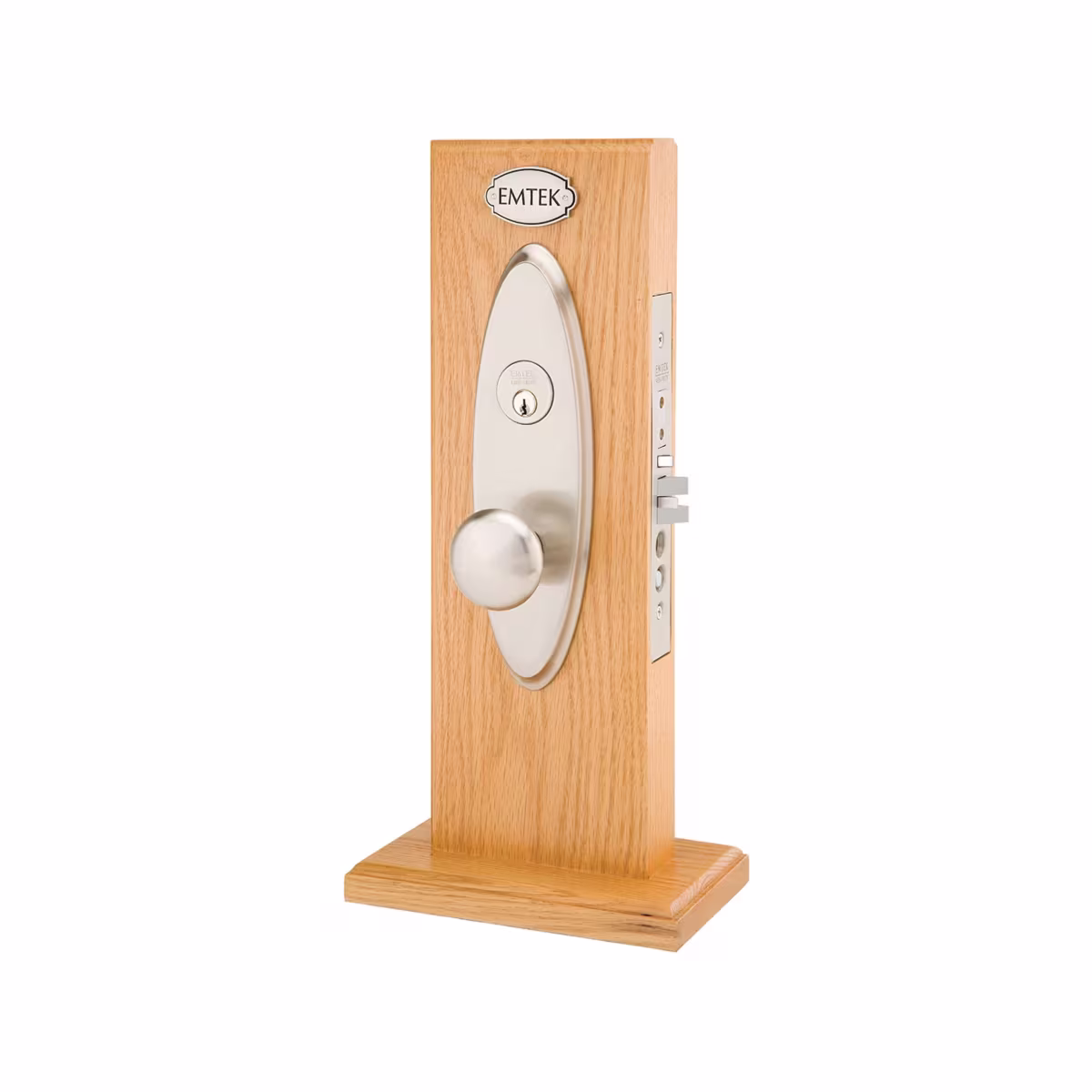

Emtek Entrance Locksets Brass – Memphis Mortise

The Emtek Entrance Locksets Brass – Memphis Mortise features a distinctive oval escutcheon plate. This shape provides a soft, elegant touch. Crafted from solid brass, this Memphis Mortise lockset offers lasting durability and smooth operation. Its refined aesthetic is perfect for both traditional and transitional homes.

Consequently, the Emtek Memphis Mortise is engineered for reliability. It features a UL Listed Mortise with ANSI F20 or F13 functions. It also uses the industry-standard Schlage C Keyway. This set is complete. It includes the latch, strike plate, and components for either 2-1/2″ or 2-3/4″ backsets. Furthermore, the unique oval plate is 10″ in height. It is built to the Standard Mortise Door Prep ANSI A115.1.

Functions

• F20 Function: Heavy-duty lock body designed to remain locked from the outside for maximum security. Specifically, it includes stop and release buttons for temporary override.
• F13 Function: Heavy-duty keyed lock body operating as a standard entry function; however, it does not include stop or release buttons.
• Dummy: Decorative, non-operational handle set. Thus, it ensures a consistent aesthetic on non-latching double doors.

Features and Security

• The heavy-duty mortise lock box ensures exceptional security:
• First of all, it is fully customizable. It can be ordered with any Brass Knob, Crystal & Porcelain Knob, or Lever.
• In addition, it includes UL Listed mortise door prep ANSI A115.1. It also has a robust 180-minute fire rating for safety compliance.
• Moreover, it features a deadlocking latch bolt.
• It utilizes forged deadbolts with anti-saw inserts, anti-pick security latches, and anti-friction triggers.

Specifications

• Handing: Required for all Memphis Mortise locks (Left Hand/LH or Right Hand/RH).
• Door Thickness: Standard 1-3/4″ (specify if thicker, up to 2-3/4″).
• Door Swing: In-swing locks are standard; conversely, specify for out-swing doors.
• Backset Options: 2-1/2″ or 2-3/4″.

The Emtek Entrance Locksets Brass – Memphis Mortise is the ideal choice for a sophisticated entry. Ultimately, it delivers a perfect fusion of graceful, oval trim and robust, dependable mortise strength.
