Description

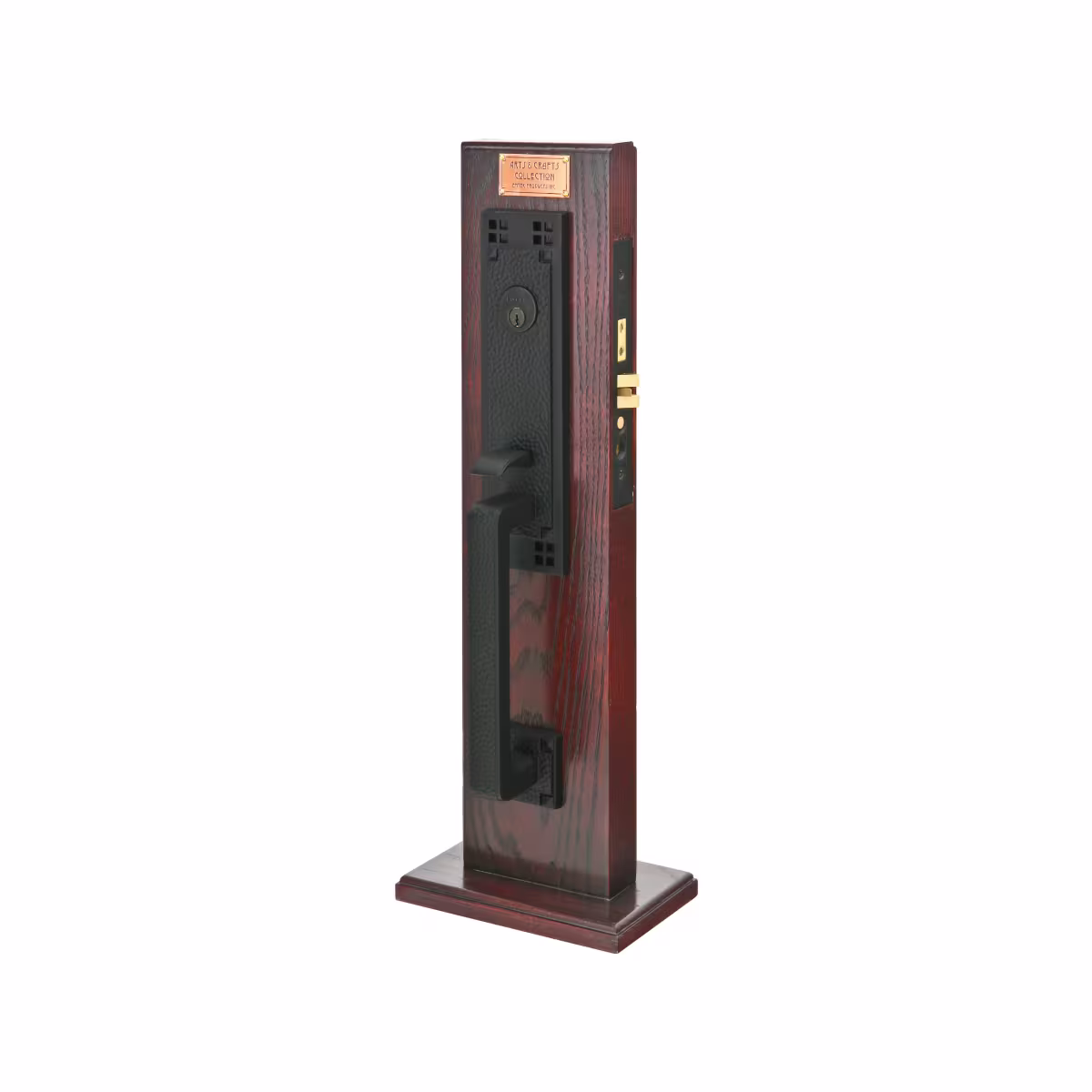

Emtek Craftsman Mortise

The Emtek Craftsman Mortise captures the authentic charm of the Arts & Crafts movement while delivering strong and reliable performance. Inspired by the handcrafted metalwork of early 20th-century design, this mortise set brings a touch of classic artistry to modern doors. Built from solid brass, it offers both timeless style and everyday durability.

Its hammered texture and square detailing create a refined, architectural look that pairs beautifully with craftsman and traditional homes. Moreover, Emtek’s precision mortise mechanism ensures a smooth, secure, and lasting operation every time the door is used.

Functions

• F13 Mortise (Standard Keyed): Works as a traditional keyed entry lock. The exterior key controls both bolts, while the interior lever retracts the latch and deadbolt together for convenience. It includes a UL 180-minute fire rating, a forged deadbolt with anti-saw inserts, an anti-friction trigger, and a deadlocking latch bolt for extra protection.
• F20 Mortise (Always Locked): Stays locked from the outside for maximum security. However, it has a temporary override button and stop/release controls on the latch plate for quick access when needed. The interior lever still retracts both latch and deadbolt to allow an easy exit.
• Mortise Dummy: A decorative, non-operational setup used on double or French doors. It matches the active side for visual balance and requires a bore hole to complete the set.

Product Details & Installation

• Can be ordered with any Emtek brass knob or lever for interior trim
• Complete mortise set includes latch and strike plate
• Backset options: 2-1/2″ or 2-3/4″
• Door prep: Standard mortise ANSI A115.1
• UL Listed with ANSI F13 or F20 functions
• Keyway: Schlage C
• Handing required for all mortise locks
• Standard door thickness: 1-3/4″ (specify if thicker)
• Designed for in-swing doors; out-swing versions available upon request

Installation:
This mortise set fits doors prepared to ANSI A115.1 standards. Each kit comes complete for smooth installation. Before ordering, confirm your handing, backset, and door thickness to ensure a perfect fit. With its solid construction and precise engineering, the Craftsman Mortise blends classic beauty with dependable security—perfect for those who value both design and function.
