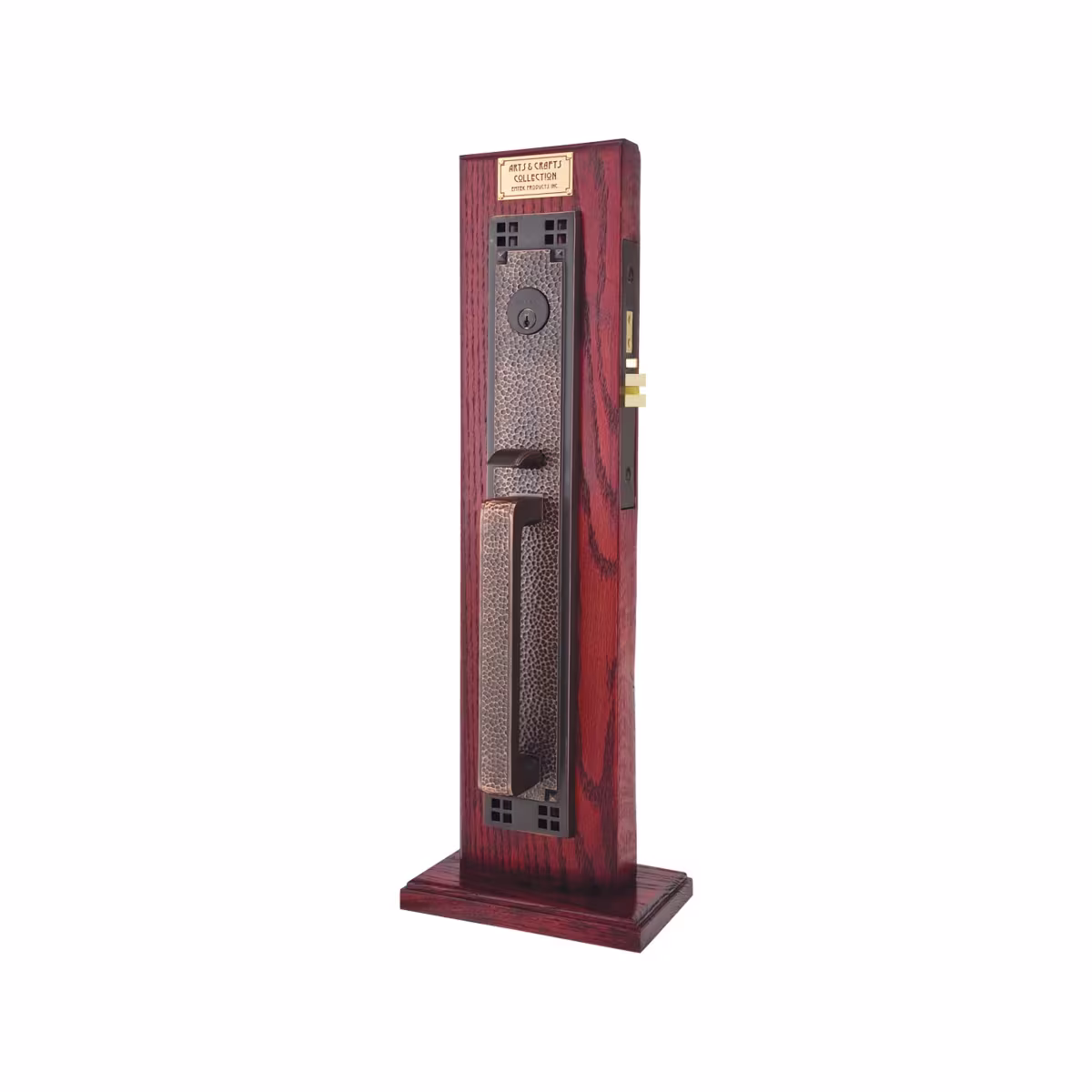

Emtek Craftsman Full Length Mortise

The Emtek Craftsman Full Length Mortise seamlessly blends authentic Arts & Crafts design with modern functionality. Inspired by the fine arts movement of the 1850s, this lock reflects the American Craftsman architectural style—celebrated for its strength, balance, and attention to detail. Crafted from solid brass, it provides not only durability but also timeless beauty for any premium door.

Available Functions:

• F13 Mortise: Functions as a standard keyed lock. The key operates both bolts outside, while the inside lever retracts the latch and deadbolt simultaneously for smooth entry and exit.
• F20 Mortise: Remains locked from the outside, yet includes a temporary override option and stop/release buttons for convenient access when needed.
• Mortise Dummy: Serves as a decorative, non-operational option for inactive doors. It is often paired with an active mortise lock, enhancing the overall design symmetry.

Product Details:

• Can be ordered with any brass knob or lever for the interior trim
• Sold as a complete set — includes latch and strike plate
• Backset options: 2-1/2″ or 2-3/4″
• Standard mortise door prep: ANSI A115.1
• UL Listed mortise lock with ANSI F20, F13, or Dummy function
• Schlage C keyway for consistent compatibility
• Handing required for all mortise locks to ensure correct installation

Technical Specifications:

• UL 180-minute fire rating for superior safety
• Heavy-duty mortise lock body ensures long-lasting reliability
• Forged deadbolt with anti-saw inserts enhances protection against forced entry
• Deadlocking latch bolt provides additional security
• Anti-pick latches and anti-friction trigger allow smoother operation
• Stop and release buttons available for the F20 function
• Plate thickness: ½”
• Exterior projection: 2 5/8″
• Grip thickness: 1 1/8″
• Grip clearance: 1 3/8″
• The dummy function shares the same dimensions for consistent design

Door Specifications:

• Standard door thickness: 1-3/4″ (specify if thicker)
• Locks for in-swing doors are standard; however, please specify if used on out-swing doors
• Function (F13, F20, or Dummy), backset, and handing are required for all mortise lock orders

Installation:

Installation is straightforward and designed for precision. To ensure a smooth process, please follow the details below:

• Fits standard mortise door prep ANSI A115.1
• Includes mounting hardware, latch, and strike plate for a complete setup
• Handing (Left or Right) must be specified before installation
• Confirm door thickness and backset prior to ordering for proper alignment
• Suitable for both in-swing and out-swing doors, offering greater versatility
• Professional installation is recommended, as it ensures accurate fit, secure function, and lasting performance
