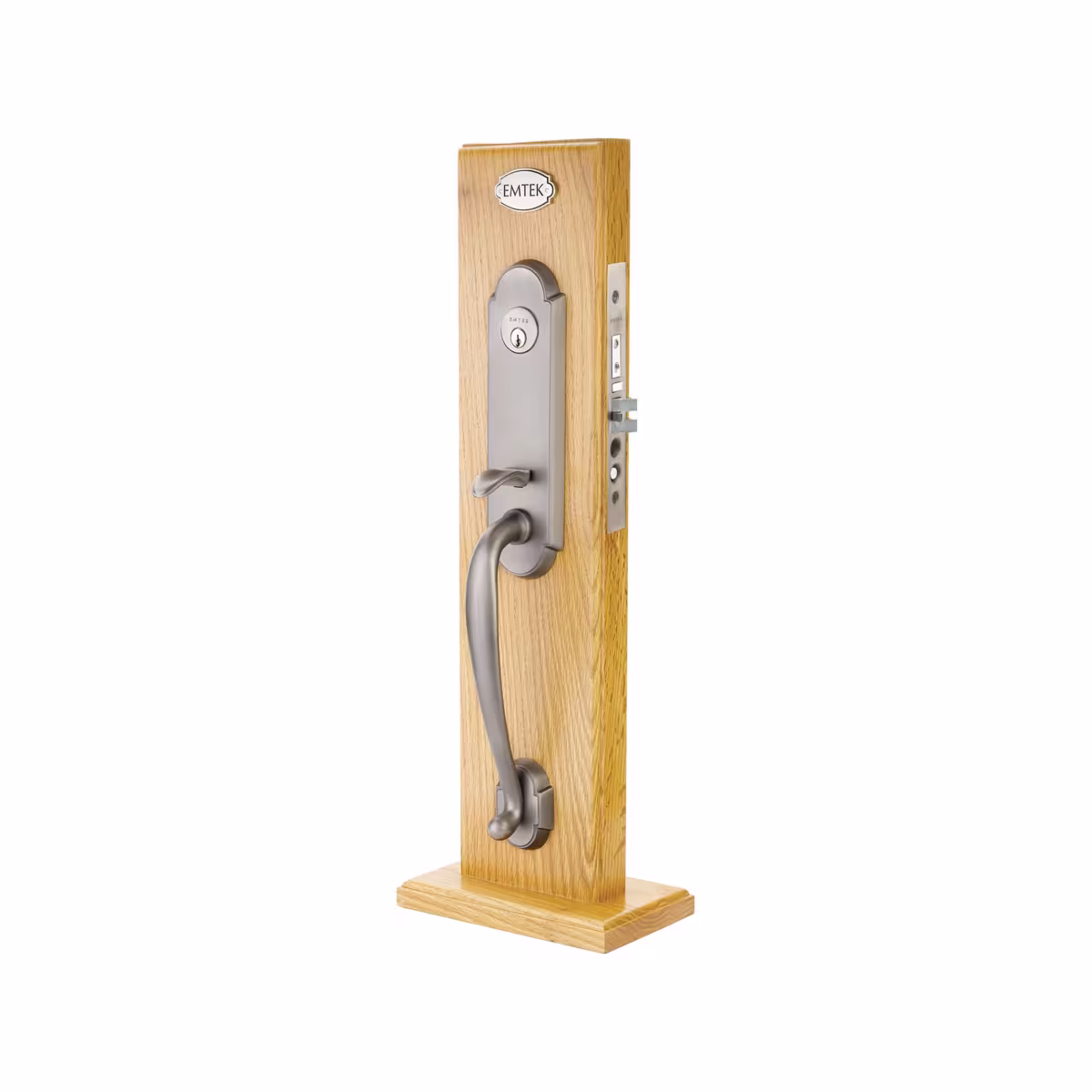

Emtek Charleston Mortise

The Emtek Charleston Mortise Collection beautifully combines traditional elegance with modern engineering. Designed for both residential and commercial use, this collection delivers refined aesthetics and dependable performance. With options for Entry (F20), Privacy/Passage (F13), and Dummy functions, it offers flexibility to suit a wide range of applications.

Product Features

• Compatible with any brass knob or lever for the interior trim
• Sold as a complete set, including mortise lock, latch, and strike plate
• Offered with 2-1/2″ or 2-3/4″ backsets for installation flexibility
• Fits standard mortise door prep ANSI A115.1
• UL Listed mortise lock available in ANSI F20, ANSI F13, or Dummy functions
• Equipped with a Schlage C keyway for standard key compatibility
• Handing is required for all mortise locks (Left Hand, Right Hand, Left Hand Reverse, or Right Hand Reverse)

Functions

• F20 Mortise (Entry Function)
Perfect for exterior entry doors, this function provides maximum security and control. The key outside operates both latch and deadbolt, while the inside lever retracts both simultaneously. Moreover, it remains locked from the outside by default but includes stop and release buttons for temporary override and convenience.

• F13 Mortise (Privacy/Passage Function)
Ideal for interior or connecting doors, the F13 operates as a standard keyed or non-keyed lock. The inside lever retracts the latch and deadbolt at once, ensuring smooth function. In addition, its heavy-duty mortise lock body carries a UL180-minute fire rating for added safety and reliability.

• Dummy Function
For design consistency, the Dummy set replicates the style of active mortise sets but remains non-operational. It is typically used on inactive or double doors and requires a bore hole for dummy entry configurations. As a result, it complements the active hardware to create a uniform, elegant appearance throughout the space.

Heavy-Duty Mortise Lock Box

Engineered with precision, every Emtek mortise lock ensures lasting strength and smooth operation. Furthermore, each lock body includes:

• UL Listed to ANSI A115.1 standards
• 180-minute fire rating
• Deadlocking latch bolt for enhanced security
• Forged deadbolt with anti-saw inserts
• Anti-pick security latches and anti-friction triggers
• Stop and release buttons (available on F20 function only)

Ordering Information

When ordering, please specify the following details to ensure proper configuration:

• Function: F20 (Entry), F13 (Privacy/Passage), or Dummy
• Backset length: 2-1/2″ or 2-3/4″
• Handing: Required for all mortise locks
• Door thickness: Standard 1-3/4″; indicate if thicker
• Door swing: Standard for in-swing; specify for out-swing applications
