Description

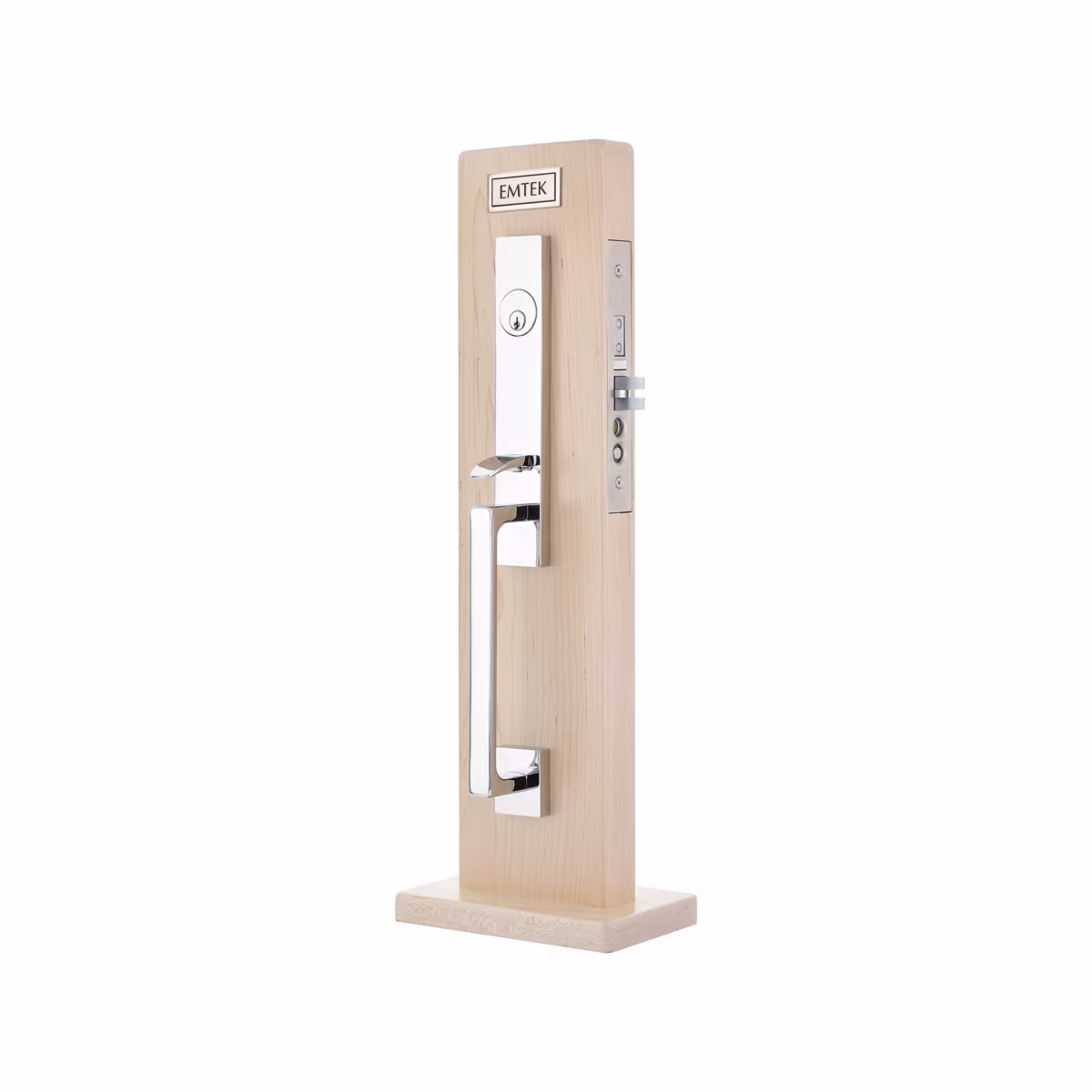

Emtek Brisbane Mortise

The Emtek Brisbane Mortise combines refined minimalism with superior craftsmanship, embodying a sleek, modern aesthetic that enhances any entryway. Featuring a slender 1-¾” wide trim and solid brass construction, the Brisbane offers a clean, monolithic look while ensuring strength, durability, and dependable security. Available in both entry and dummy configurations, this set can be paired with any Emtek brass knob or lever for the interior trim. Each set is sold as a complete package, including the latch, strike plate, and all necessary mounting hardware.

Functions

• F13 Mortise – Operates as a standard keyed lock. The exterior key controls both the latch and deadbolt, while the interior lever retracts both simultaneously for convenient and secure operation.
• F20 Mortise – Always locked from the outside but includes stop and release buttons to temporarily override the lock when needed, offering added flexibility and control.
• Mortise Dummy – A non-functional decorative trim ideal for double or French doors, serving as a fixed handle for the inactive door while maintaining a consistent design aesthetic.

Key Features

• Trim Style: Brisbane
• Available Finishes: Multiple modern finishes to complement any décor
• Backset Options: 2-½” or 2-¾”
• Standard Door Prep: ANSI A115.1
• Keyway: Schlage C
• Handing Required: Must be specified for all orders
• UL Listed Mortise: Available in ANSI F13 or F20 functions

Heavy-Duty Construction

• UL Listed with a 180-minute fire rating
• Forged deadbolt latch with anti-saw inserts for superior security
• Deadlocking latch bolt prevents tampering and forced entry
• Anti-pick security latches for enhanced protection
• Anti-friction latch trigger ensures smooth and quiet operation
• Stop and release buttons (on F20 models) provide added convenience and control

Every component is precision-engineered for reliable performance and long-term durability, ensuring the Emtek Brisbane Mortise stands up to both residential and commercial use.

Installation

• Fits standard mortise door prep (ANSI A115.1)
• Suitable for door thicknesses from 1-¾” to 2-¾”
• Includes correct cylinder, spindle, and strikeplate components
• Compatible with wood or metal doors
• Professional installation recommended for optimal alignment and function

The Emtek Brisbane Mortise delivers a perfect balance of modern design, robust engineering, and high-level security, making it an exceptional choice for today’s stylish and secure entryways.
