Description

Embelle Nova Square Rosette Lever 5800

The Embelle Nova Square Rosette Lever is a standout piece from the knurled collection, combining distinctive texture with refined craftsmanship. Precision-engineered for durability and performance, its knurled lever and clean square rosette create a sophisticated look that enhances both modern and classic interiors.

Designed for everyday functionality, the Nova Square Rosette Lever delivers reliable performance while adding a bold design element to interior wooden doors.

Available Finishes

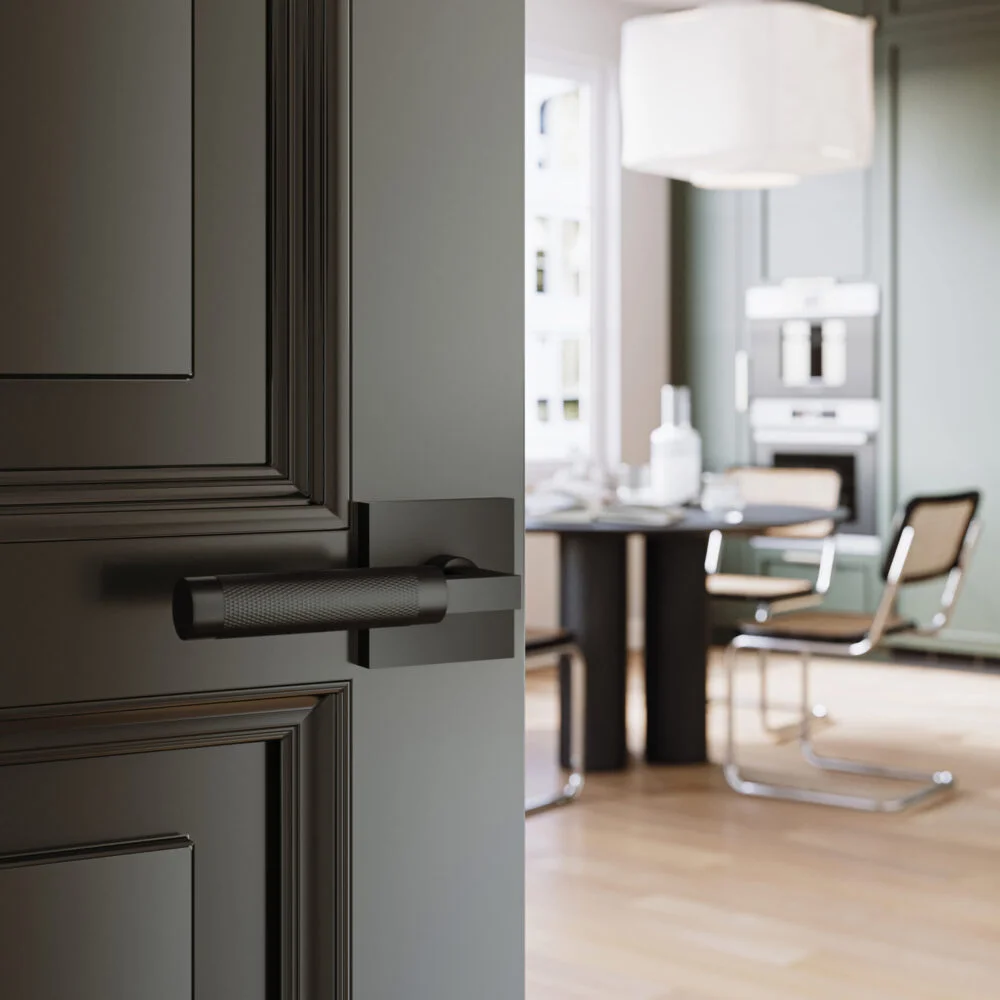

• Dull Black

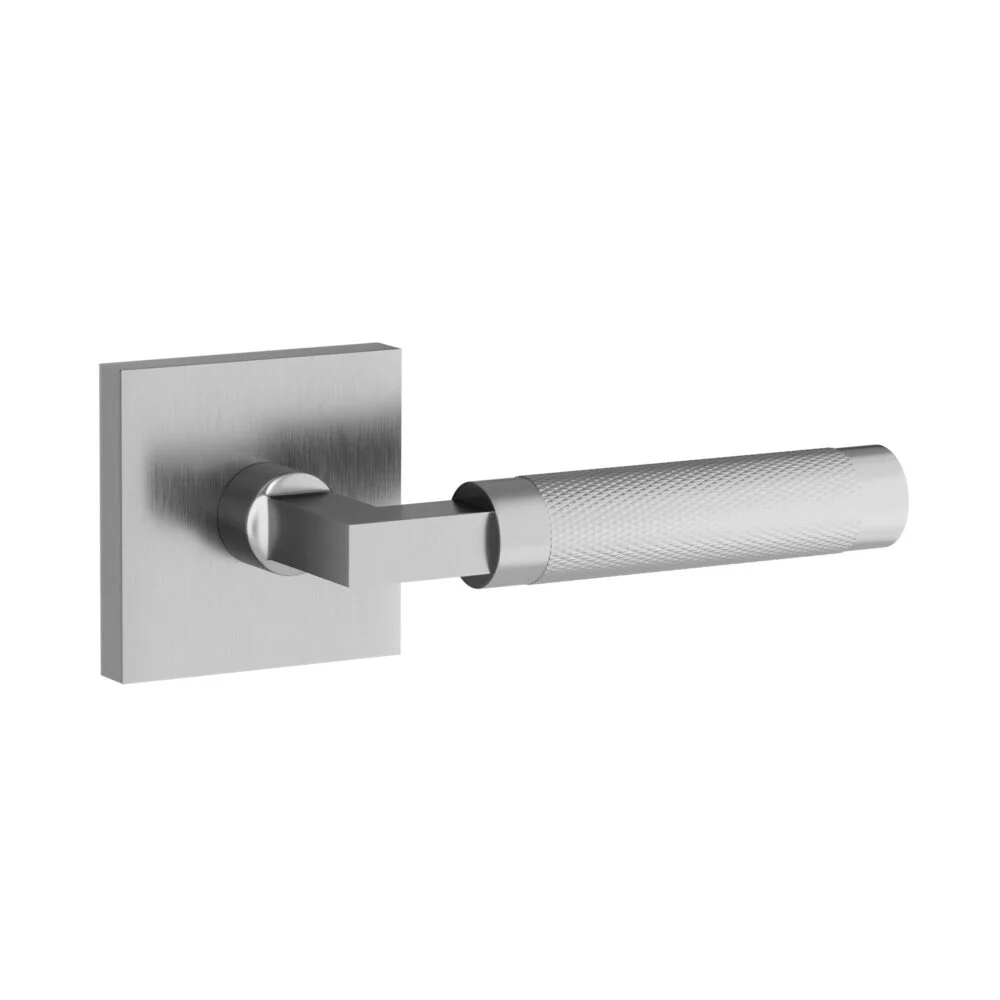

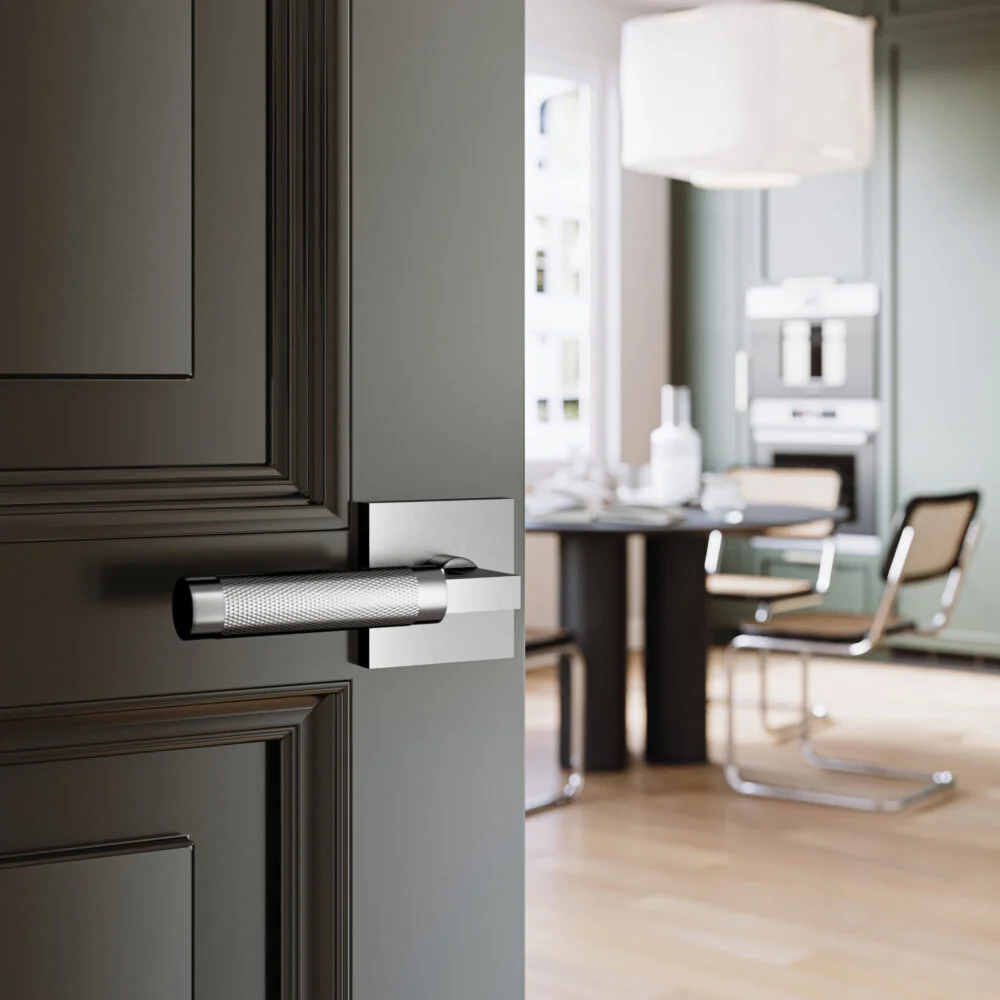

• Satin Nickel

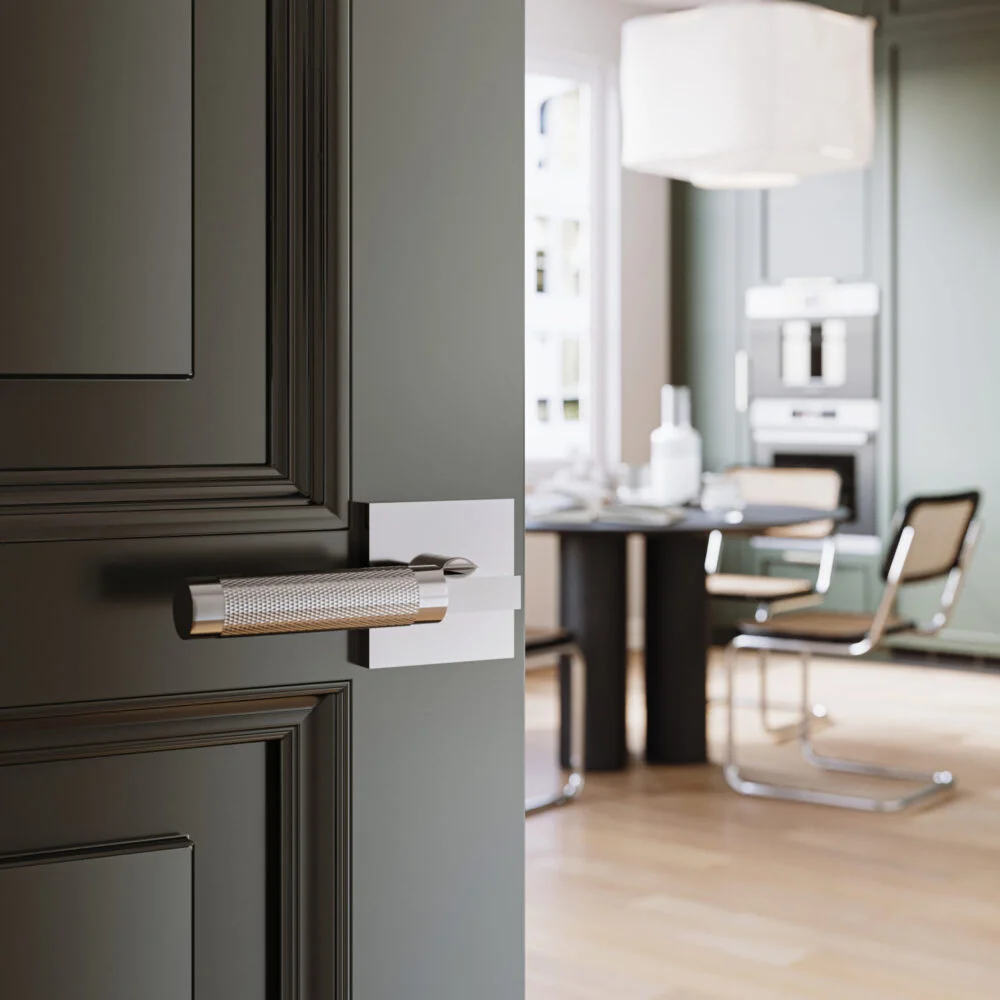

• Bright Chrome

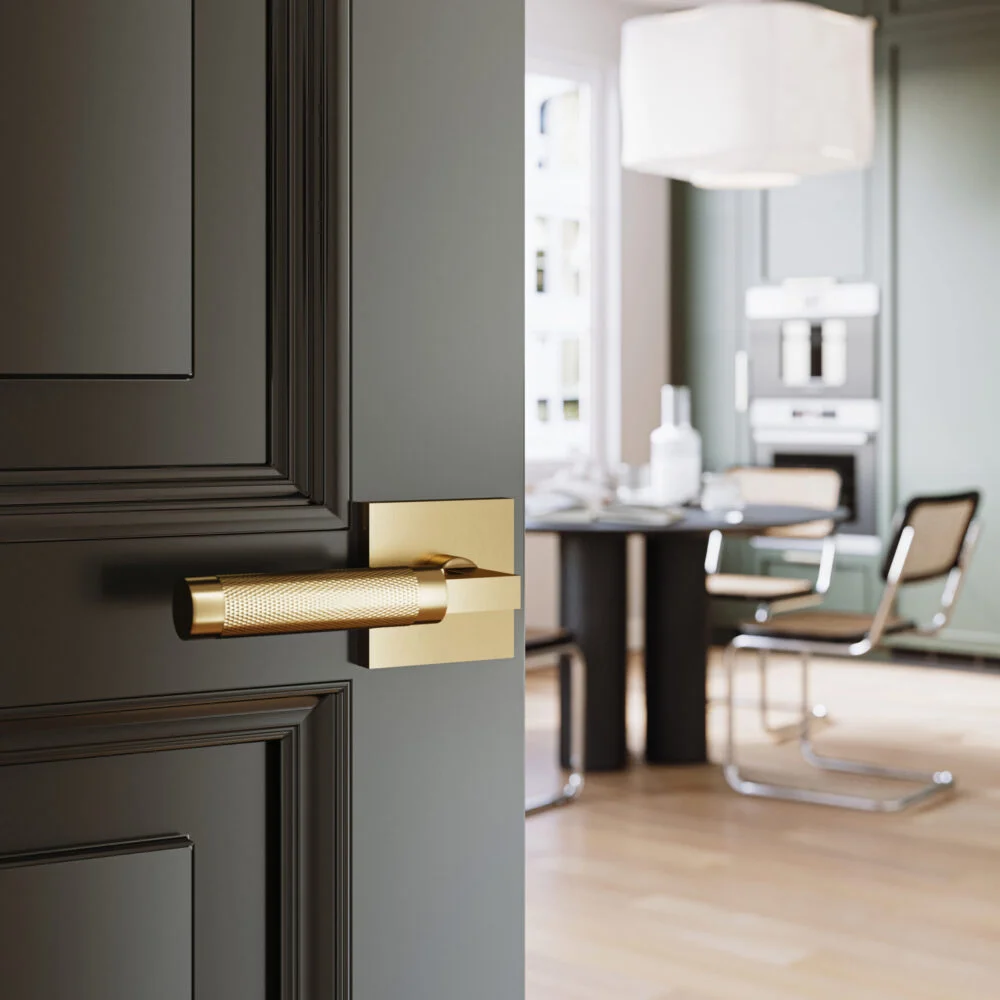

• Satin Brass

Available Functions

• Privacy – Push-button lock on the inside with emergency pin access from the outside; ideal for bedrooms, bathrooms, and dressing rooms.
• Passage – Non-locking lever with turning handles on both sides, providing free access for closets and children’s bedrooms.
• Dummy – Non-functional lever used for decorative purposes or to pull open doors such as double door closets.

Lock Measurements

• Lever Length: 5.18″
• Lever Projection: 2.58″
• Lever Clearance: 1.73″
• Rosette Height: 2.50″
• Rosette Width: 2.50″
• Rosette Depth: 0.39″
• Face Plate: 1″ x 2-1/4″ Radius

Door Measurements

• Backset: Adjustable 2-3/8″ or 2-3/4″
• Cross Bore: 2-1/8″
• Edge Bore: 1″ diameter
• Door Thickness: 1-3/8″ – 1-3/4″

Usage & Features

• Concealed Screws: Yes
• Handing: Reversible for left- or right-hand doors
• Area: Interior
• Door Type: Wooden Doors

Certification

• ANSI: Meets or exceeds ANSI A156.2
• ADA: Compliant
