Description
Accentra TB-4708LN Classroom Lever | TB-Hudson Lever
The Accentra TB-4708LN Classroom Lever is designed for classrooms, utility rooms, and other controlled-access spaces, delivering secure key-controlled entry while ensuring safe, immediate exit. Its deadlocking latchbolt provides reliable security, and either lever operates the latch unless the outside lever is locked by key.
Lever Option
- Reflections Series – TB – Hudson Lever
Available Lever Trims:

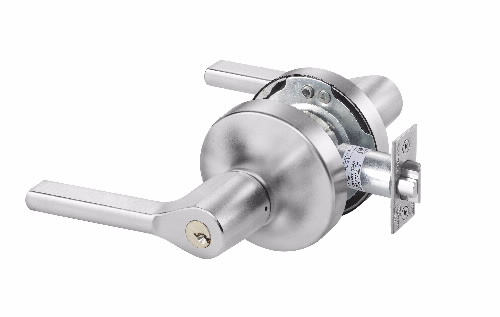

- TB-4708LN x 626 (Satin Chrome)

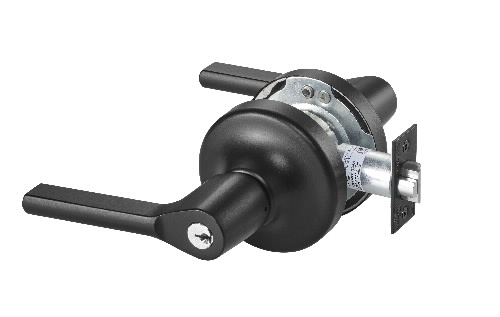

- TB-4708LN x BSP (Black Suede Powder Coat)
- TB-4708LN x 605 (Bright Brass)
- TB-4708LN x 606 (Satin Brass)
- TB-4708LN x 613E (Dark Oxidized Satin Bronze equivalent)
- TB-4708LN x 625 (Bright Chrome)
- TB-4708LN x 612 (Satin bronze)
- TB-4708LN x 619 (Satin Nickel Plated)
- TB-4708LN x WSP (White Suede Powder Coat)
Key Features
- Function: Classroom – ANSI F84
Operation:
- Inside lever always active for safe egress
- Outside lever locked/unlocked by key
- Either lever operates latchbolt when unlocked
- Free-wheeling outside lever when locked to prevent damage
- Applications: Classrooms, utility rooms, restricted-access areas
- Construction: Grade 1 durability for demanding environments
- Handing: Non-handed for easy installation
Benefits
- Provides secure key-controlled entry
- Ensures safe and constant interior egress
- Reduces damage risk with free-wheeling design
- Ideal for schools, institutions, and utility areas
Specifications
- ANSI/BHMA: A156.2, Series 4000, Grade 1
- Backset: 2-3/4″ standard (other options available)
- Cylinder Formats: Conventional, Large Format IC, Small Format IC
- Pins: 6-pin (when keyed cylinder format is used)
- Door Thickness: 1-3/4″ standard (1-3/8″ to 2-1/4″ range)
- Latchbolt Throw: 1/2″
- Strike: ANSI curved lip
- Handing: Non-handed
- Max Backset: 19″
- UL/ULC Listed: Yes, up to 3 hours
- Warranty: 5-year mechanical warranty
Certifications
- ANSI/SDI 250.13
- UL/cUL Fire Rated (Up to 3 Hours)
- ADA Compliant
- NFPA 80
- ASTM E1886, E1996, E330
- Florida Building Code Approved (FL# 3063)
- TAS 201, 202, 203
- ICC A117.1
- ANSI/BHMA A156.2 (Grade 1)
- ANSI/BHMA A156.41
