Description

Accentra Shim Kits for Exit Device

Accentra Shim Kits provide a simple and reliable solution for installing exit devices on doors with interfering or overlapping molding. Each standard shim kit contains two sets of 1/8″ thick shims, allowing adjustments of 1/8″ (3mm) or 1/4″ (6mm) to ensure proper alignment and secure mounting. For shimming greater than 1/4″ (6mm), longer mounting screws (not included) are required. Kits are supplied in durable 693 (Black) finish. Windstorm (WS) kits include three sets of 1/8″ shims for additional flexibility.

Included in each shim kit:

• 2 (or 3 for WS kits) sets of 1/8″ thick shims
• Longer device mounting hardware (user-supplied if needed)
• Installation instructions

Compatibility by Series and Device

6000 Series:

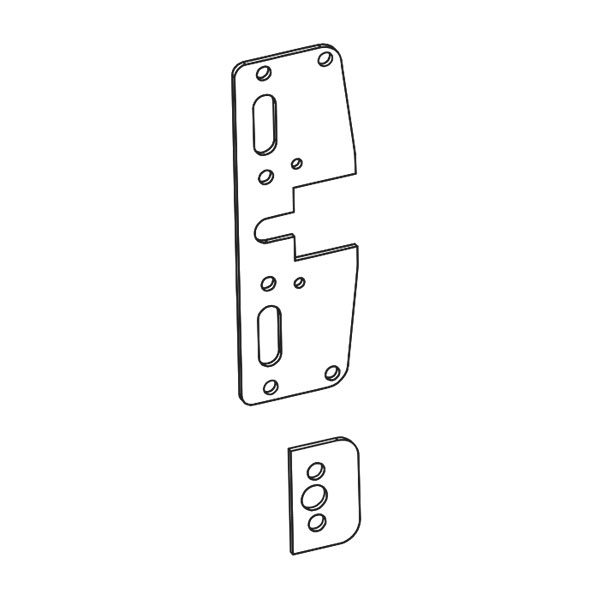

• 623SK – 6100ED Series Rim, Mortise & CVR

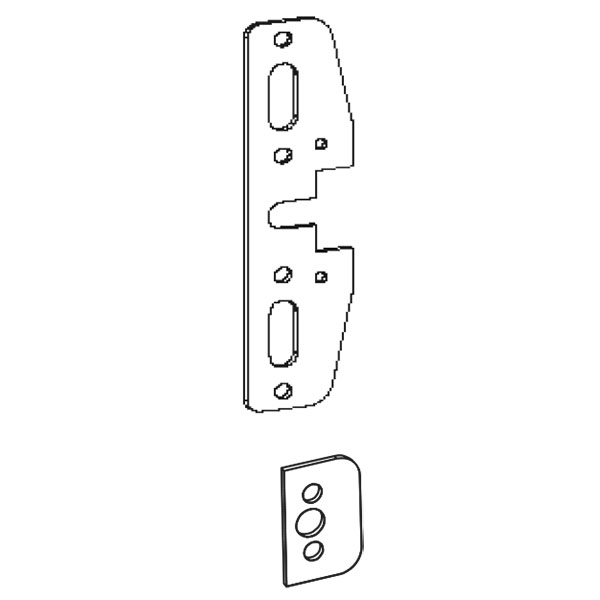

• 623NS – 6200 Series Rim & CVR

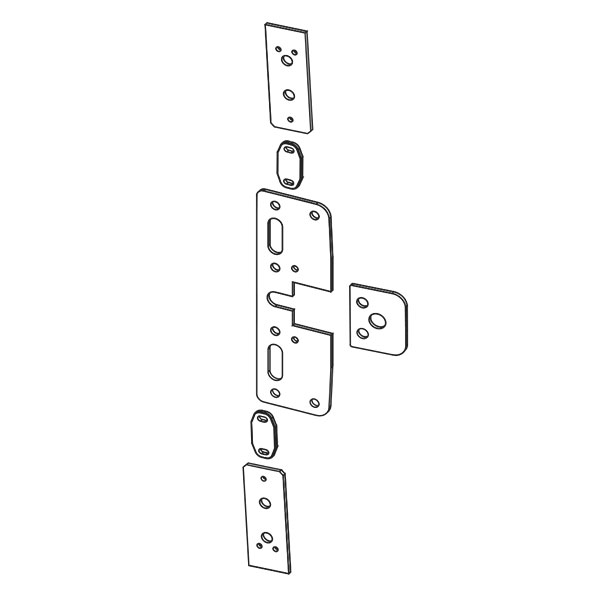

• 624SK – 6110ED, 6170ED Series SVR

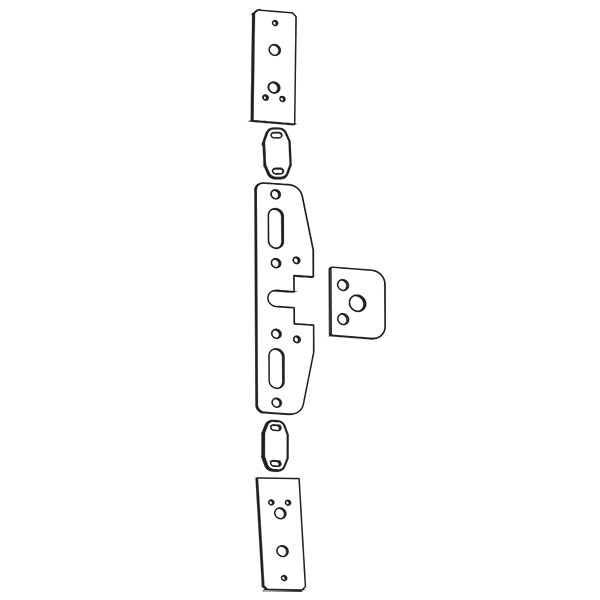

• 624NS – 6210 Series SVR

7000 Series:

• 723 – 7100 Series Rim, Mortise & CVR
• 723NS – 7200 Series Rim & CVR

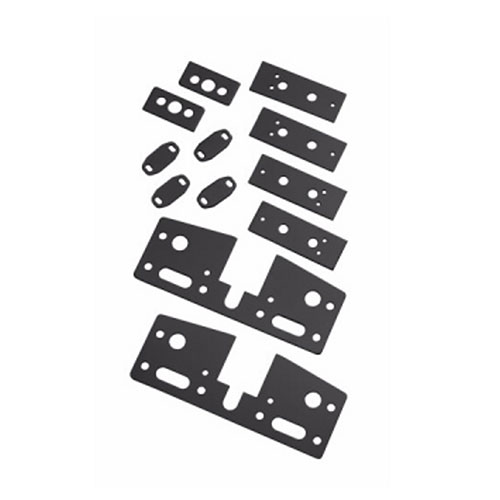

• 724 – 7110, 7170 Series SVR
• 724NS – 7210 Series SVR

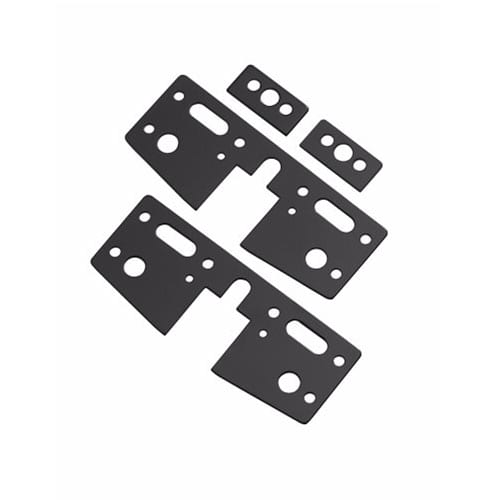

• 723WS – 7150(F)WS Windstorm
• 723NSWS – 7250M(F)WS Windstorm
• 724WS – 7170(F)WS Windstorm

2100 and 1800 Series:

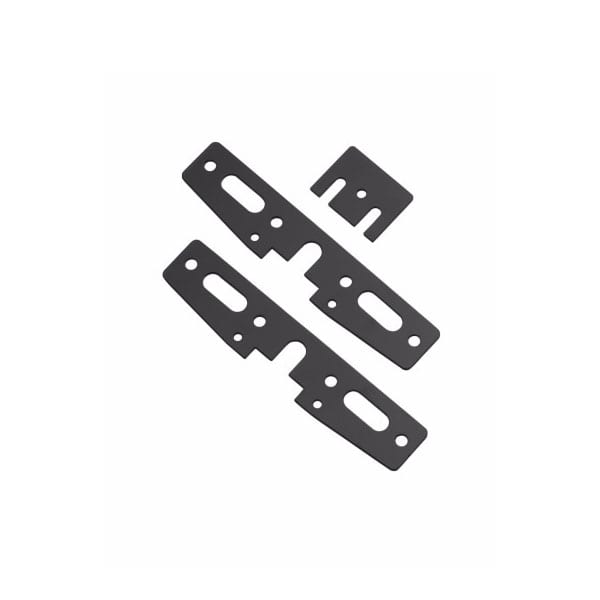

• 223 – 1/4″ Shim Kit for Rim Devices

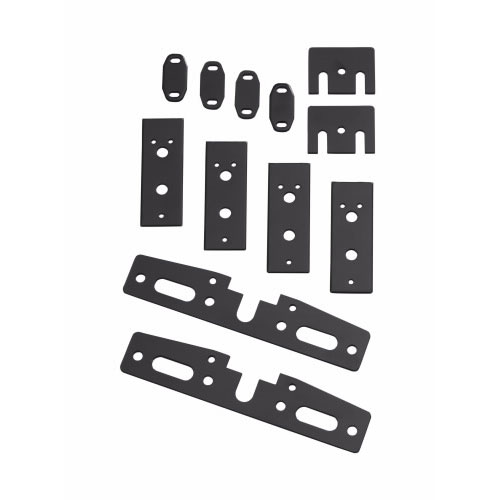

• 224 – 1/4″ Shim Kit for Vertical Rod Devices

*Note: Special mortise or concealed vertical rod components may be required for openings needing more than two shim kits, or for mortise devices on doors thicker than 1-3/4″ (44mm).

Key Features:

• Corrects spacing for exit devices on doors with interfering molding
• Compatible with rim, SquareBolt®, surface vertical rod, and mortise devices across 1800, 2100, 6000, and 7000 Series
• Ensures proper alignment, secure mounting, and reliable operation
• Available in standard and Windstorm (WS) configurations
