Description

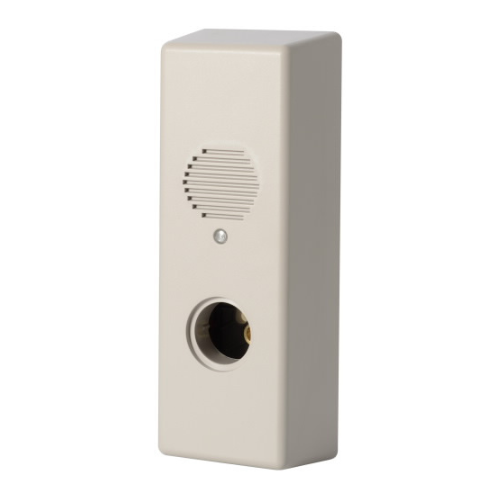

Accentra SDA16 Stand Alone Exit Alarm

The Accentra SDA16 Stand-Alone Exit Alarm is designed to continuously monitor door status and immediately alert unauthorized use. When a protected door is opened without approval, a powerful 105+ dB piezo horn sounds to clearly signal a security violation. As a result, it is ideal for emergency exits, stairwells, and rear doors in retail and commercial environments. Additionally, its flexible mounting and power options allow it to easily complement existing door hardware.

Key Features:

• Stand-alone door alarm with continuous door monitoring
• 105+ dB piezo horn provides loud, clear alerts
• Non-handed unit (field reversible)
• Powered by a 9V battery or optional hardwire connection
• Reverse battery protection to prevent damage from incorrect installation
• Low-battery audible alert every 30 seconds
• LED status indicator flashes every 30 seconds when armed or after violation
• Field-adjustable settings via dip switches, including alarm reset, REX, passage delay, and LED color
• Tamper switch triggers alarm if the cover is removed
• Conformally coated electronics for added weather resistance
• Cam-lock cover protects internal components and mounting screws
• Accepts external, mortise, or rim cylinders (not included; must be specified)

Applications:

• Emergency exit doors
• Stairwell doors
• Rear exit doors in retail and commercial buildings
• Any opening requiring audible exit monitoring

Specifications:

• Dimensions: 8.3″ L × 3.1″ W × 2.0″ D (210 × 79 × 52 mm)
• Finish: Gray
• Power: 9V battery standard or hardwired using WH-11 wire harness
• Sound Output: 105+ decibels
• Mounting: Interior side of door or frame with magnetic contact
• Remote Mounting Option: Up to 6 ft from door (specify SDA16XL)

Accessories & Options:

• WH-11 wire harness for remote power and unlock
• Mortise or rim cylinders for control (sold separately)
• Remote reset/arm switch compatible
