Description

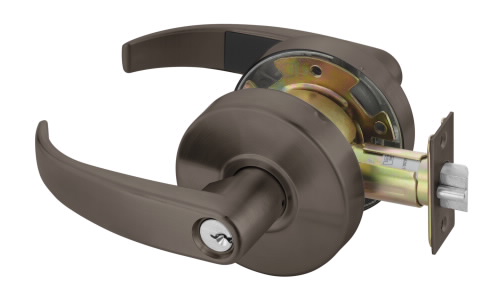

Accentra PB-4607LN Entry Door Lever | ANSI F109 Grade 2 Lockset – Reliable Security for Home, Office, and Entry Doors

The Accentra PB-4607LN Entry Lever is designed for entrance, office, and general-use doors that require reliable, flexible, and high-performance access control. Featuring a deadlocking latchbolt and fully active inside lever, the PB-4607LN allows smooth operation from either side unless the outside lever is locked. Its push-and-turn inside button enables quick locking while offering the option to retain the outside lever in a locked position until manually released—perfect for doors needing extended or continuous security.

Built to ANSI/BHMA Grade 2 commercial standards, the PB-4607LN delivers durability, ease of use, and dependable everyday protection in both residential and commercial settings.

Lever Option

• Standard Series – PB – Pacific Beach

Available Finish:

• PB-4607LN x 626 (Satin Chrome)
• PB-4607LN x BSP (Black Suede Powder Coat)
• PB-4607LN x 605 (Bright Brass)
• PB-4607LN x 606 (Satin Brass)
• PB-4607LN x 613E (Dark Oxidized Satin Bronze equivalent)
• PB-4607LN x 625 (Bright Chrome)

Key Features

• Function: Entrance / Office – ANSI Function No. F109
• Operation:
  • Inside lever always active
  • Latchbolt operated by key on the outside or by rotating the inside lever
  • Outside lever locks when the inside turn button is pushed
• Locking Options:
  • Push-button locking from the inside
  • Push-and-turn feature retains the outside lever in a locked position
  • Lock automatically releases when inside lever is turned or key is rotated (unless retained)
• Latchbolt: Deadlocking design for added security
• Applications: Homes, offices, and general entrance doors
• Construction: Commercial Grade 2 reliability
• Handing: Field reversible for easy installation
• Available Options: 5 trims and 6 finishes for design flexibility
• ADA Compliant: Accessible lever design for universal usability
• UL/cUL Fire Rated: Up to 3 hours for added safety
• Windstorm Certified: Meets stringent local building codes
• Warranty: Backed by a 3-year mechanical warranty

Benefits

• Flexible locking options for daily or long-term security needs
• Reliable operation with automatic lock release when needed
• Durable construction suited for both commercial and residential use
• Easy to install and ADA-friendly lever operation

Specifications

• ANSI/BHMA Code: A156.2, Series 4000LN, Grade 2
• Backset Depth (Standard): 2-3/4″
• Backset Range: 2-3/8″ to 2-3/4″
• Latchbolt Throw: 1/2″
• Door Thickness (Standard): 1-3/4″
• Door Thickness Range: 1-3/8″ to 1-3/4″
• Cylinder Format: Conventional, Small Format
• Cylinder Pins: 6 pin
• Number of Keys: 2
• Strike Type: ANSI Curved Lip
• Handing: Non-handed (Field Reversible)
• UL/ULC Listed: Yes

Certifications

• ANSI/SDI 250.13 Certified
• ASTM E1886 / E1996 / E330 Certified
• Florida Building Code Approved (FL# 3063)
• UL/cUL Fire Rated – Up to 3 Hours
• NFPA 80 Compliant
• TAS 201, TAS 202, TAS 203 Certified
• ICC A117.1 & ADA Compliant
