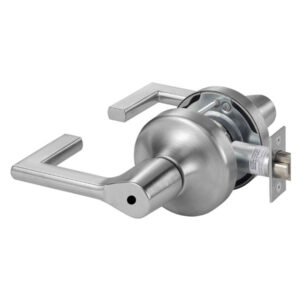

Accentra MO-4725LN Privacy Lever (Non-Key) | Monroe Lever
The Accentra MO-4725LN Privacy Lever is designed for lavatories, bedrooms, or any privacy-focused doors, providing reliable, everyday operation without a keyed cylinder. Either lever operates the latchbolt unless the inside pushbutton is engaged, allowing quick, intuitive privacy control, while the pushbutton automatically releases when the inside lever turns or the door closes, enhancing both safety and convenience.
Lever Options
- Standard Series – MO – Monroe
Available Lever Trims:
- MO-4725LN x 626 (Satin Chrome)
- MO-4725LN x BSP (Black Suede Powder Coat)
- MO-4725LN x 605 (Bright Brass)
- MO-4725LN x 606 (Satin Brass)
- MO-4725LN x 613E (Dark Oxidized Satin Bronze equivalent)
- MO-4725LN x 625 (Bright Chrome)
- MO-4725LN x 612 (Satin bronze)
- MO-4725LN x 619 (Satin Nickel Plated)
- MO-4725LN x WSP (White Suede Powder Coat)
Key Features
- Function: Privacy (Non-Key)
- Operation:
- Additionally, either lever operates latchbolt unless the inside pushbutton is pressed
- Moreover, inside lever always active for safe egress
- Furthermore, pushbutton automatically releases when inside lever turns or door closes
- Unlocking: Outside turnbutton allows optional manual unlocking
- Optional Feature: Flush turnbutton (FTB)
- Safety: Free-wheeling lever prevents forced rotation damage
- Applications: Lavatories, bedrooms, and other privacy-required rooms
- Construction: Grade 1 durability for heavy-duty use
- Handing: Non-handed for easy installation
Benefits
- Provides reliable privacy without the need for a keyed cylinder
- Prevents accidental lock-ins while ensuring simple unlocking from outside
- Free-wheeling mechanism resists tampering and forced rotation
- Suitable for residential, commercial, and institutional use
Specifications
- ANSI/BHMA: A156.2, Series 4000, Grade 1
- Backset: 2-3/4″ standard (other options available)
- Cylinder Formats: Conventional, Large Format IC, Small Format IC
- Pins: 6-pin (when keyed cylinder format is used)
- Door Thickness: 1-3/4″ standard (1-3/8″ to 2-1/4″ range)
- Latchbolt Throw: 1/2″
- Strike: ANSI curved lip
- Handing: Non-handed
- Max Backset: 19″
- UL/ULC Listed: Yes, up to 3 hours
- Warranty: 5-year mechanical warranty
Certifications
- ANSI/SDI 250.13
- UL/cUL Fire Rated (Up to 3 Hours)
- ADA Compliant
- NFPA 80
- ASTM E1886, E1996, E330
- Florida Building Code Approved (FL# 3063)
- TAS 201, 202, 203
- ICC A117.1
- ANSI/BHMA A156.2 (Grade 1)
- ANSI/BHMA A156.41
