Description
Accentra BAU-4708LN SFIC Classroom Lever | Augusta Lever
The Accentra 4708LN Classroom Lever is engineered for classrooms, utility rooms, and similar spaces where controlled entry and safe egress are essential. Additionally, its deadlocking latchbolt ensures dependable security, while either lever operates the latch unless the outside lever is locked by key.
Moreover, the inside lever remains active at all times, guaranteeing safe and immediate exit during emergencies. The outside lever can be unlocked only with a key, providing controlled access for teachers or authorized personnel. Furthermore, the free-wheeling lever design helps prevent damage when the outside lever is locked, ensuring long-term reliability in high-traffic environments.
Lever Options
- Standard Series – BAU – Augusta Lever
Available Lever Trims:
- BAU-4708LN x 626 (Satin Chrome)

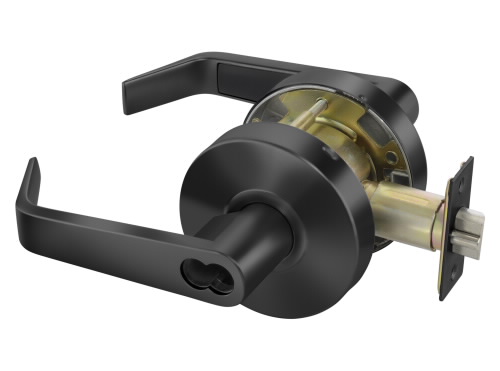

- BAU-4708LN x BSP (Black Suede Powder Coat)
- BAU-4708LN x 605 (Bright Brass)
- BAU-4708LN x 606 (Satin Brass)

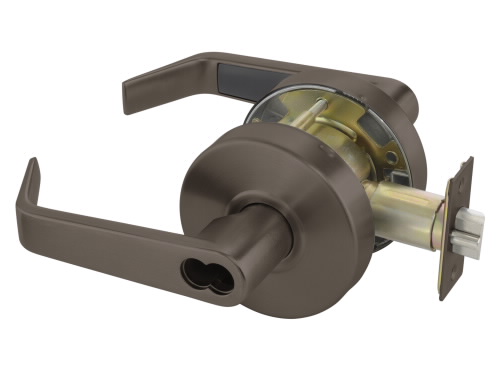

- BAU-4708LN x 613E (Dark Oxidized Satin Bronze equivalent)
- BAU-4708LN x 625 (Bright Chrome)
- BAU-4708LN x 612 (Satin bronze)
- BAU-4708LN x 619 (Satin Nickel Plated)
- BAU-4708LN x WSP (White Suede Powder Coat)
Key Features
- Function: Classroom – ANSI F84
Operation:
- Inside lever always active for safe egress
- Outside lever locked/unlocked by key
- Either lever operates latchbolt when unlocked
- Free-wheeling outside lever when locked to prevent damage
- Applications: Classrooms, utility rooms, restricted-access areas
- Construction: Grade 1 durability for demanding environments
- Handing: Non-handed for easy installation
Benefits
- Provides secure key-controlled entry
- Ensures safe and constant interior egress
- Reduces damage risk with free-wheeling design
- Ideal for schools, institutions, and utility areas
Specifications
- ANSI/BHMA: A156.2, Series 4000, Grade 1
- Backset: 2-3/4″ standard (other options available)
- Cylinder Formats: Conventional, Large Format IC, Small Format IC
- Pins: 6-pin (when keyed cylinder format is used)
- Door Thickness: 1-3/4″ standard (1-3/8″ to 2-1/4″ range)
- Latchbolt Throw: 1/2″
- Strike: ANSI curved lip
- Handing: Non-handed
- Max Backset: 19″
- UL/ULC Listed: Yes, up to 3 hours
- Warranty: 5-year mechanical warranty
Certifications
- ANSI/SDI 250.13
- UL/cUL Fire Rated (Up to 3 Hours)
- ADA Compliant
- NFPA 80
- ASTM E1886, E1996, E330
- Florida Building Code Approved (FL# 3063)
- TAS 201, 202, 203
- ICC A117.1
- ANSI/BHMA A156.2 (Grade 1)
- ANSI/BHMA A156.41
Manufacturers Website
