Description

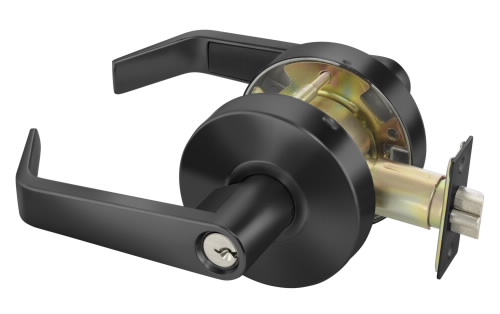

Accentra AU-4605LN Storeroom Door Lever – ANSI F86 Grade 2 Commercial Lockset, Augusta Lever

The Accentra AU-4605LN Storeroom Lever is a Grade 2 commercial lockset designed for controlled-access areas such as storerooms, utility rooms, and exit doors. Its deadlocking latchbolt ensures maximum security, while the interior lever remains active for smooth and immediate egress. The exterior lever stays rigid at all times, allowing entry only with a key, making it ideal for commercial, institutional, and multi-use facilities.

Lever Options

• Standard Series – AU – Augusta

Available Finish:

• AU-4605LN x 626 (Satin Chrome)
• AU-4605LN x BSP (Black Suede Powder Coat)
• AU-4605LN x 605 (Bright Brass)
• AU-4605LN x 606 (Satin Brass)
• AU-4605LN x 613E (Dark Oxidized Satin Bronze equivalent)
• AU-4605LN x 625 (Bright Chrome)

Key Features

• Function: Storeroom – ANSI Function No. F86
• Operation:
  • Inside lever always active, operating the latchbolt for immediate egress
  • Outside lever remains rigid; latchbolt operated by key only
• Handing: Field reversible for easy installation
• Applications: Suitable for commercial, institutional, and multi-use facilities
• Available Options: 5 trims and 6 finishes for design flexibility
• ADA Compliant: Accessible lever design for universal usability
• UL/cUL Fire Rated: Up to 3 hours for added safety
• Windstorm Certified: Meets stringent local building codes
• Warranty: Backed by a 3-year mechanical warranty

Benefits

• High-security performance for controlled-access environments
• Reliable interior egress with always-active inside lever
• Durable, commercial-grade construction for heavy-duty use
• Meets multiple safety and performance certifications
• Designed for ease of use, accessibility, and long-term reliability

Specifications

• ANSI/BHMA Code: A156.2, Series 4000LN, Grade 2
• Backset Depth (Standard): 2-3/4″
• Backset Range: 2-3/8″ to 2-3/4″
• Latchbolt Throw: 1/2″
• Door Thickness (Standard): 1-3/4″
• Door Thickness Range: 1-3/8″ to 1-3/4″
• Cylinder Format: Conventional, Small Format
• Cylinder Pins: 6 pin
• Number of Keys: 2
• Strike Type: ANSI Curved Lip
• Handing: Non-handed (Field Reversible)
• UL/ULC Listed: Yes

Certifications

• ANSI/SDI 250.13
• ASTM E1886 / E1996 / E330
• TAS 201, TAS 202, TAS 203
• NFPA 80 Compliant
• ICC A117.1 & ADA Compliant
