Accentra 8866FL Passage Lock Indicator Mortise Lock

Assa Abloy Accentra

Assa Abloy Accentra a leading brand of commercial hardware, formerly known as Yale Commercial, has been rebranded but using the same great quality products!

Manufacturers Website

Accentra 8866FL Passage Lock Indicator Mortise Lock

Original price was: $929.00.Current price is: $313.37.

Clear Status, Free Access

This passage mortise lock allows free entry from either side while displaying clear occupancy status with an indicator. Moreover, a simple thumbturn updates the indicator without restricting access, making it ideal for high-traffic doors.

Select the correct V-Series code based on your door and function:
Please include any comments we should know about your order.
Product total
Options total
Grand total

Description

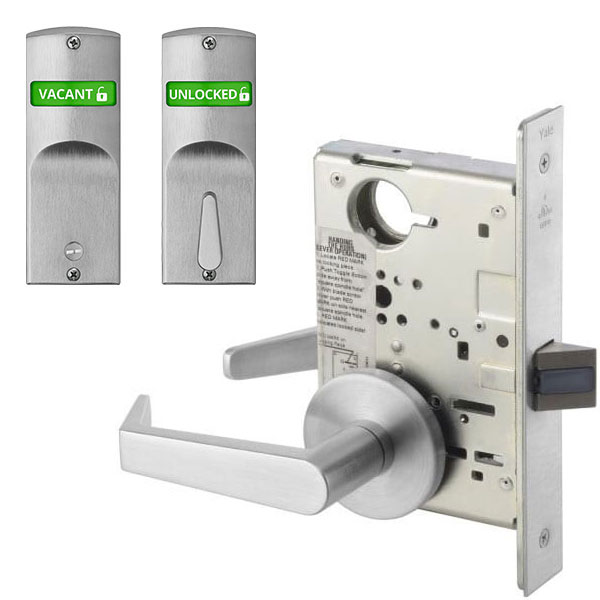

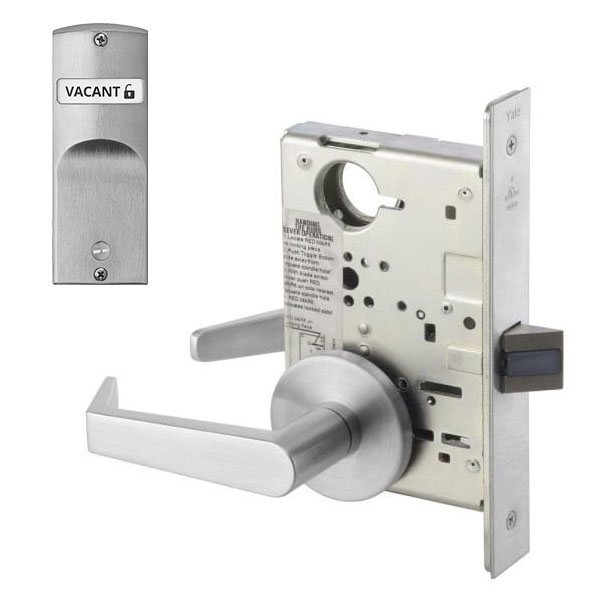

Accentra 8866FL Passage Lock Indicator Mortise Lock

The Accentra 8866FL passage lock with indicator mortise lock is designed for doors that require clear occupancy status without the need for locking. From the start, this passage mortise lock allows the latchbolt to retract freely from either side using the knob or lever at all times, ensuring smooth and uninterrupted access. As a result, it is ideal for applications where traffic flow matters but visual indication is still required.

In addition, turning the inside thumbturn changes the state of the status indicator to show occupancy or availability. However, rotating either knob or lever returns the indicator to its previous state, maintaining intuitive and user-friendly operation. Because of this design, the 8866FL provides clear communication without restricting access. Moreover, this function is available only with V-Series indicators, and the indicator option code must be specified when ordering.

Furthermore, the Accentra 8866FL passage lock with indicator meets ANSI/BHMA Grade 1 standards and features heavy-duty construction for long-term performance. Therefore, it performs reliably in commercial and institutional environments where durability, visibility, and ease of use are essential.

Key Features
  • Passage lock with indicator function
  • Designed for doors that do not require locking
  • Latchbolt retracts by knob or lever from either side at all times
  • Inside thumbturn changes indicator status
  • Rotating either knob or lever returns indicator to previous state
  • Non-keyed, non-cylinder mortise lock

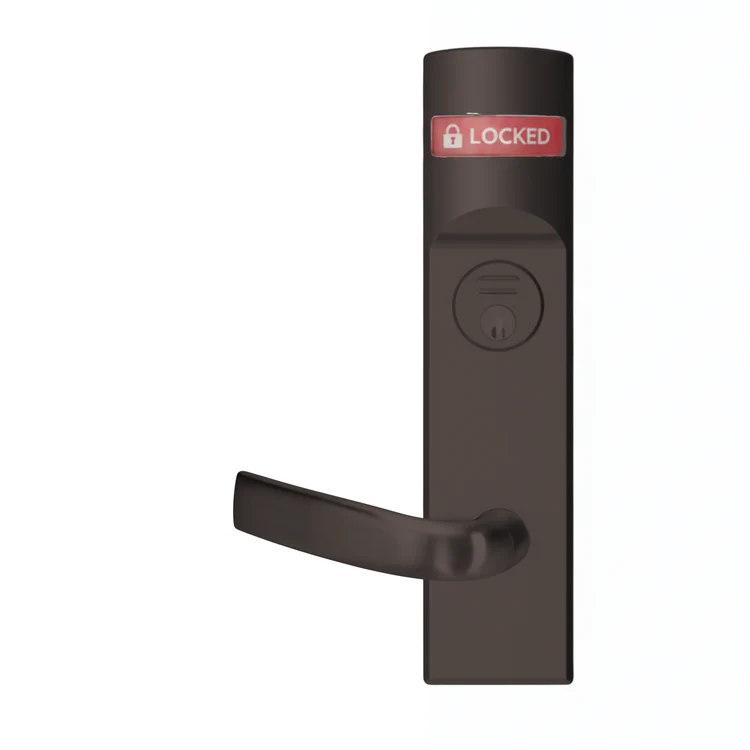

  • Compatible only with V-Series indicators (V code required)
  • Heavy-duty construction for commercial use
Specifications
  • ANSI/BHMA: A156.13, Series 1000
  • Operational Grade: ANSI/BHMA Grade 1
  • Backset: 2-3/4″
  • Door thickness: 1-3/4″ standard, available up to 3-1/4″
  • Latchbolt throw: 3/4″
  • Handing: Field reversible
  • UL / cUL listed for 3-hour fire-rated doors
  • Warranty: 10-year mechanical
