Description

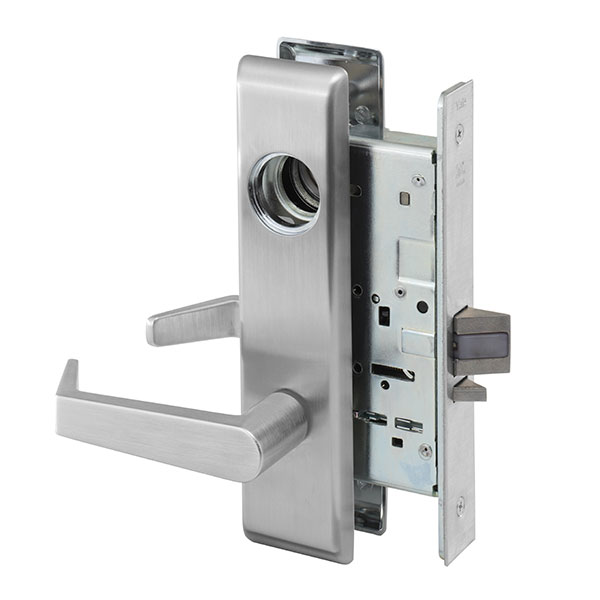

Accentra 8830-2FL Asylum & Institutional Mortise Lock
The Accentra 8830-2FL mortise lock is designed for asylums, institutional buildings, and other high-security areas where strict access control is required. First, users retract the latchbolt by key from either side, ensuring that only authorized personnel can operate the door. At the same time, the rigid knob or lever on both sides serves as a pull only, helping prevent misuse or tampering.
In addition, this lock features a double-cylinder design without a deadbolt, providing controlled entry while maintaining a simple and secure mechanism. Moreover, the deadlocking latchbolt resists forced entry, while the heavy-duty mortise construction supports long-term use in demanding environments. Overall, meeting ANSI/BHMA Grade 1 standards, the 8830-2FL delivers reliable performance for institutional applications.
Key Features
- Asylum or institutional function (F30)
- Latchbolt retracted by key from both sides
- Rigid knob or lever on both sides for pull use only
- Double-cylinder design without deadbolt
- Deadlocking latchbolt for added security
- Heavy-duty mortise construction
Specifications
- ANSI/BHMA: A156.13, Series 1000
- Operational Grade: ANSI/BHMA Grade 1
- Backset: 2-3/4″
- Door Thickness: 1-3/4″ standard, available up to 3-1/4″
- Latchbolt Throw: 3/4″
- Cylinder Formats: Conventional, LFIC, SFIC
- Handing: Field reversible
- Fire Rating: UL / cUL listed for 3-hour fire-rated doors
- Warranty: 10-year mechanical
