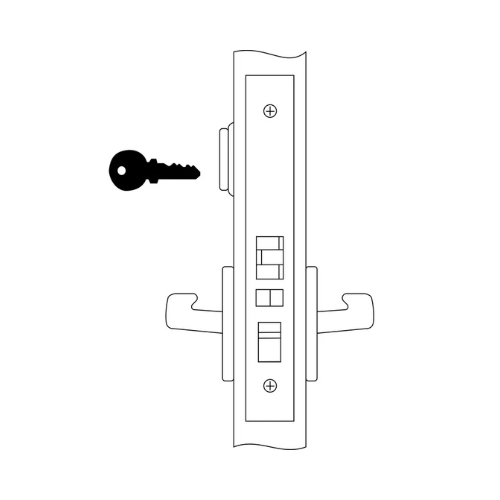

Accentra 8807FL Entry Mortise Lock

The Accentra 8807FL Entry Mortise Lock delivers reliable access control for office and commercial doors. As part of the ASSA ABLOY ACCENTRA® 8800 Series, it performs well in high-traffic spaces.

First, this entry function lets users retract the latchbolt with the knob or lever from either side. However, when the outside knob or lever locks through the stopwork activator, entry changes. In that case, the key operates the latchbolt from the outside, while the inside knob or lever always allows exit.

In addition, the lock uses a deadlocking latchbolt to help block forced entry. Because this single-cylinder mortise lock does not include a deadbolt, it offers simple use while still providing dependable security for office doors.

Moreover, the 8807FL makes installation quick and easy. It features field-reversible handing and standard door preparation. Together with heavy-duty trim, these features help the lock meet ANSI/BHMA Grade 1 standards for strength and long service life.

Key Features

• Entry function (F04)
• Single-cylinder mortise lock without deadbolt
• Latchbolt operated by knob or lever from either side
• Outside knob or lever can be locked by stopwork activator
• Latchbolt operated by key outside when outside trim is locked
• Knob or lever inside always allows free exit
• Deadlocking latchbolt for added protection
• Designed for office and commercial entry doors

Specifications

• ANSI/BHMA: A156.13, Series 1000
• Operational Grade: ANSI/BHMA Grade 1
• Backset: 2-3/4″
• Door thickness: 1-3/4″ standard, available up to 3-1/4″
• Latchbolt throw: 3/4″
• Cylinder formats: Conventional, LFIC, SFIC
• Handing: Field reversible
• UL / cUL listed for 3-hour fire-rated doors
• Warranty: 10-year mechanical
