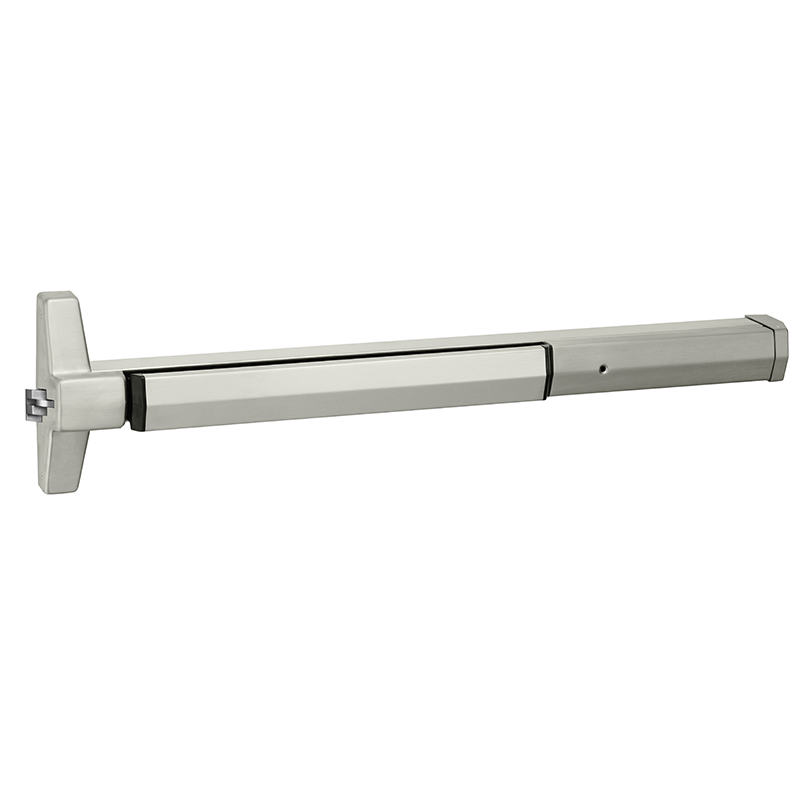

Accentra 7250 SquareBolt Rim Exit Device

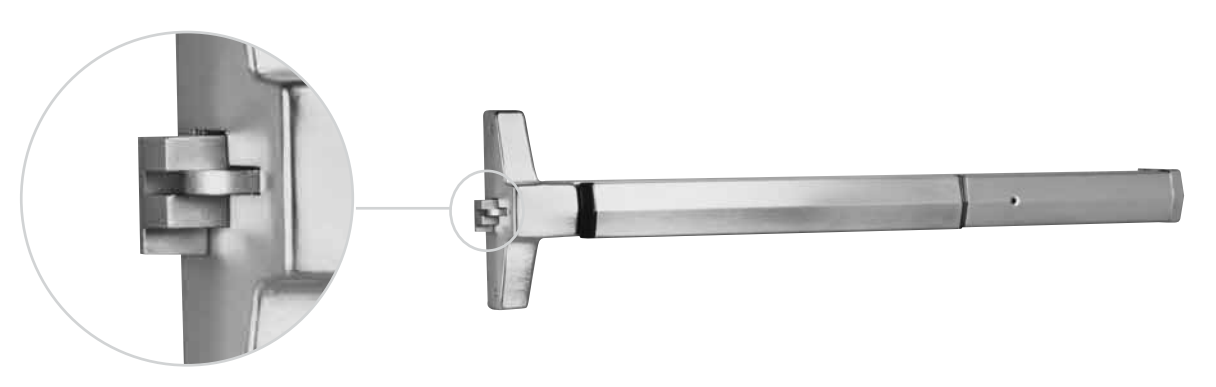

The Accentra 7250 SquareBolt Rim Exit Device delivers advanced security through its innovative SquareBolt latch design, which provides a stronger physical barrier than standard pullman-style latchbolts. As a result, it resists credit card attacks, crowbars, door rattling, and shaking. Therefore, the risk of unauthorized entry is greatly reduced, especially in applications with removable mullions.

Additionally, the 7250 series includes the 7250M(F) SquareBolt model, which offers the same strong security while maintaining the appearance of a narrow stile exit device on wide stile or flush doors. This way, designers can maintain a consistent look with 7200 series exit devices across both interior and exterior doors.

Key Features:

• SquareBolt security deadbolt engineered for maximum holding power
• Non-handed design for fast and easy installation
• Maintains the architectural look of the 7200 series for consistent design and finish
• Fully adjustable surface-mounted 3/8″ diameter roller strike with positive locking plate and shims
• Designed for use with narrow stile trim
• 7250M(F): Available as certified hurricane-resistant hardware (specify 7250M(F)WS; refer to local codes)

Applications:

• Single swing doors
• Pairs of doors with removable mullions
• Metal, aluminum, wood, or composite doors
• Panic-rated doors only (fire-rated options available on 7250M(F))

Specifications:

• Door Widths: 24″, 30″–36″, and 36″–48″ (custom sizes available)
• Door Thickness: 1-3/4″ standard; optional 2″ and 2-1/4″
• Minimum Stile Width: 2″ (51 mm) for 7250 and 4-1/2″ (114 mm) for 7250M(F)
• Projection: 3-1/4″ active, 2-3/4″ dogged
• Deadbolt: 1″ (25 mm) slide bolt with full 3/4″ (19 mm) projection
• Strike:
  • 7250: Standard 759; Optional 793 for double-door panic applications
  • 7250M(F): Standard 757F; Optional 793 for double-door panic applications
• Fasteners:
  • Machine screws standard for panic hardware
  • Wood door fasteners and sex nuts included where required

Compliance & Certifications

• ANSI/BHMA: A156.3, Type 4 or 28, Grade 1
• UL/cUL Listings:
  • FVSR/FVSR7 – Panic hardware
  • GXHX/GXHX7 – Fire exit hardware (7250M(F), 3-hour rating)
  • ZHEM – Latching hardware
  • ZHLA – Windstorm rated assemblies (7250M(F)WS)

Warranty:

• 5-year limited warranty

Exit Only (trim sold separately).
