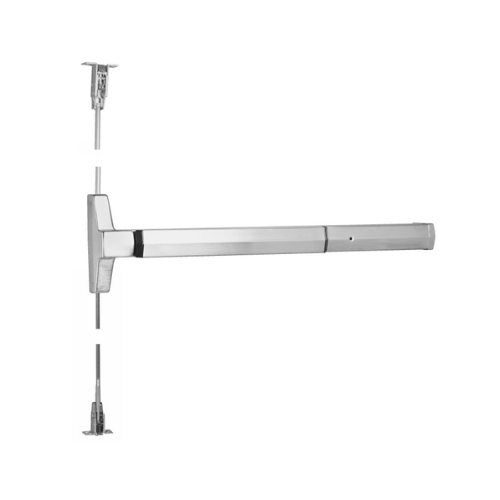

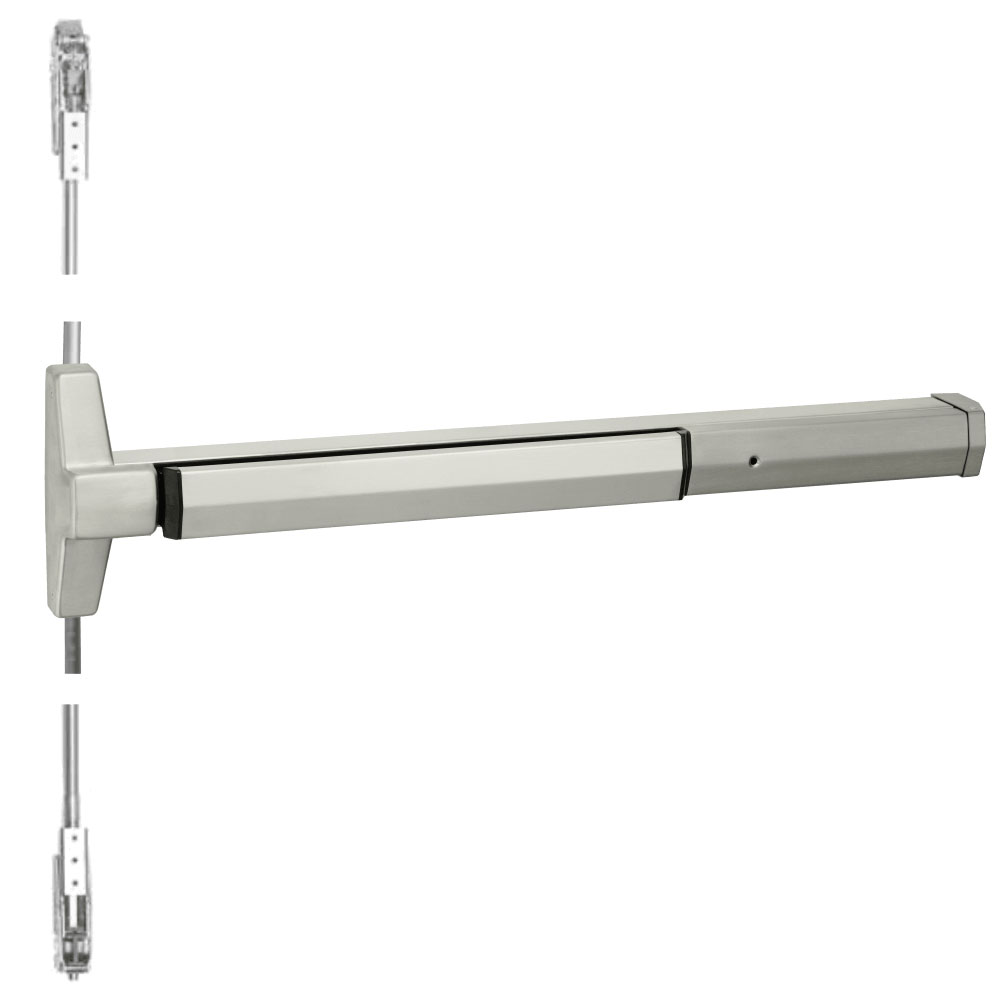

Accentra 7220 Concealed Vertical Rod Exit Device

The Accentra 7220 Concealed Vertical Rod Exit Device is designed for narrow stile aluminum and metal doors where two-point latching is needed. Meanwhile, the 7220M(F) model provides the same strong security while keeping a narrow stile look for wide stile and flush metal doors. As a result, designers can achieve a consistent appearance across different doors. Additionally, both models deliver smooth, panic-rated performance for safe and reliable operation.

Key Features:

• Designed for narrow stile doors (7220) and narrow stile appearance for wide stile doors (7220M(F))
• Handed design (field reversible; specify hand)
• Bottom deadbolt for secure latching
• Fully adjustable roller strike for precise alignment
• Concealed vertical rods for clean appearance
• Moreover, supports both panic-rated and fire-rated applications

Applications:

• Pairs of doors
• Double egress doors (7220M(F))
• Metal and aluminum doors (7220); Metal doors only (7220M(F))
• Panic-rated doors only (fire-rated options on 7220M(F))

Specifications:

• Door Widths: 24″, 30″–36″, and 36″–48″ (custom sizes available)
• Door Opening Height:
  • 7220: Top rod adjustable 7′ to 8′ (213–244 cm); device centerline at 39-15/16″ (101 cm) from floor; optional heights -9, -10
  • 7220M(F): Adjustable to 8′ (244 cm); device centerline at 39-15/16″ (101 cm) from floor; optional heights -9, -10 (panic only)
• Door Thickness: Standard 1-3/4″ (44 mm); optional 2″ (51 mm) and 2-1/4″ (57 mm)
• Minimum Stile Width: 2″ (51 mm) for 7220 and 4-1/2″ (114 mm) for 7220M(F)
• Projection: 3-1/4″ active, 2-3/4″ dogged
• Latchbolt:
  • Top: 3/4″ (19 mm) stainless steel pullman-type with automatic deadlatching
  • Bottom: 5/8″ (16 mm) deadbolt, held retracted during door swing
• Vertical Rods: 1/2″ (13 mm) O.D. telescoping tubular rods
• Strike: Top roller type 791; bottom flush mounted 790; optional 794 floor strike for threshold openings
• Fasteners: Machine screws and wood door fasteners standard; sex nuts supplied for fire exit hardware

Compliance & Certifications

• ANSI/BHMA:
  • 7220: A156.3, Type 6, Grade 1
  • 7220M(F): A156.3, Type 8, Grade 1
• UL/cUL:
  • FVSR/FVSR7 – Panic hardware
  • GXHX/GXHX7 – Fire exit hardware (7220M(F), 3-hour rating, 8′ x 8′ pairs)

Warranty:

• 5-year limited warranty

Exit Only (trim sold separately).
