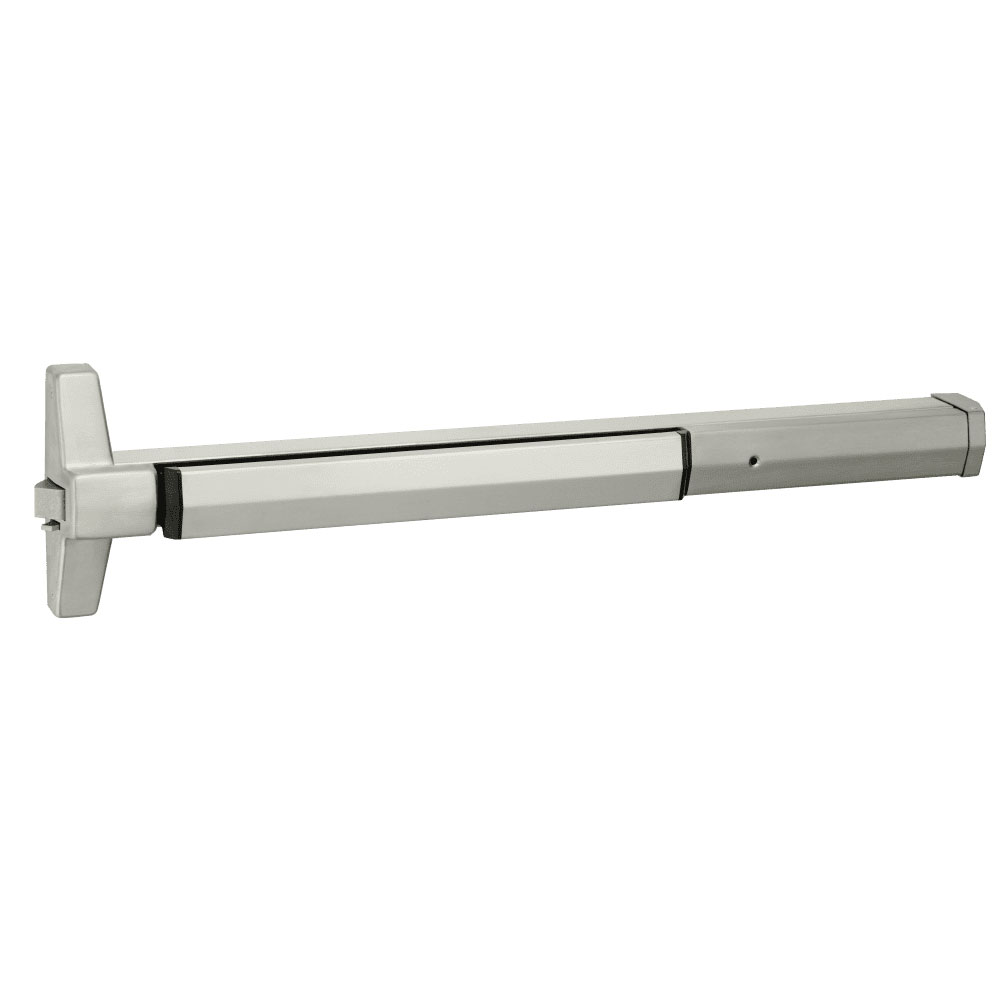

Accentra 7200 Rim Exit Device

The Accentra 7200 Rim Exit Device is a narrow stile panic solution designed to meet the functional and visual demands of modern commercial doors. It delivers reliable life-safety performance while offering flexible design options through multiple finishes and trim styles. Additionally, the 7200 series includes the 7200M(F) model, which provides the appearance of a narrow stile exit device for wide stile or flush doors, ensuring visual continuity throughout a facility.

By using narrow stile trim with the 7200M(F), interior doors can match exterior narrow stile doors, creating a clean and consistent look. As a result, the 7200 series is ideal for projects that require both performance and cohesive design across different door types.

Key Features:

• Designed for narrow stile doors (7200) and narrow stile appearance on wide stile or flush doors (7200M(F))
• 3/4″ throw deadlocking stainless steel pullman latchbolt for enhanced security
• Non-handed design for quick and easy installation
• Fully adjustable surface-mounted roller strike with positive locking plate and shims (7200M(F))
• Rugged construction suited for high-traffic commercial environments

Applications:

• Single swing doors
• Pairs of doors with removable mullions
• Metal, aluminum, wood, or composite doors
• Panic-rated doors only (fire-rated options available on 7200M(F))

Specifications:

• Door Widths: 24″, 30″–36″, and 36″–48″ (custom sizes available)
• Door Thickness: 1-3/4″ standard; optional 2″ and 2-1/4″
• Minimum Stile Width: 2″ (51 mm) for 7200 and 4-1/2″ (114 mm) for 7200M(F)
• Projection: 3-1/4″ active, 2-3/4″ dogged
• Latchbolt: 3/4″ (19 mm) deadlocking stainless steel pullman type
• Strike:
  • 7200: Standard 759; Optional 793 for double-door panic applications
  • 7200M(F): Standard 757F; Optional 793 for double-door panic applications
• Fasteners:
  • Machine screws standard for panic hardware
  • Wood door fasteners and sex nuts included where required

Compliance & Certifications

• ANSI/BHMA: A156.3, Type 4, Grade 1
• UL/cUL Listings:
  • FVSR/FVSR7 – Panic hardware
  • GXHX/GXHX7 – Fire exit hardware (7200M(F), 3-hour rating)

Warranty:

• 5-year limited warranty

Exit Only (trim sold separately).
