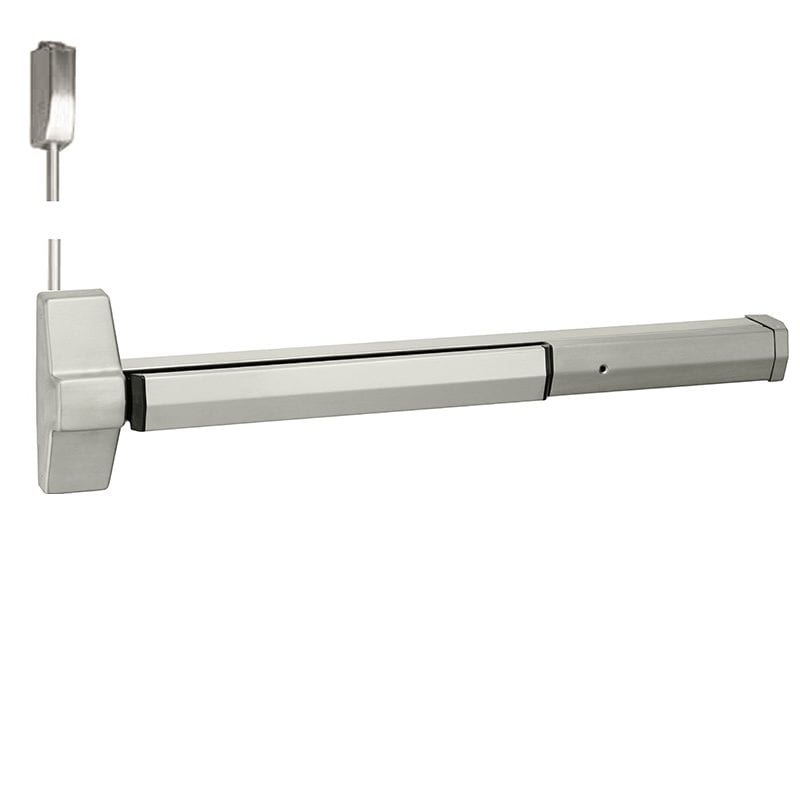

Accentra 7170 Surface Vertical Rod Exit Device

Accentra 7170 Surface Vertical Rod Exit Device is designed for wide stile and flush doors up to 10′ where one- or two-point latching is required. Although it ensures smooth and reliable egress, it also provides secure top and bottom locking for added safety. In addition, a Less Bottom Rod (LBR) option is available for specialized fire exit applications.

Furthermore, this device is ideal for pairs of doors and double egress openings. Because it features an interlocking top strike and latch mounting plate, it ensures consistent latching and dependable performance. Moreover, hurricane-resistant models are available to meet local codes (not approved for LBR; specify 7170(F)WS).

Key Features:

• Designed for wide stile and flush doors
• Handed design; field reversible with specified handing
• Interlocking top strike and latch mounting plate
• Optional Less Bottom Rod (LBR) for specialized applications
• Available hurricane-resistant model (specify 7170(F)WS)
• Standard hex key dogging on panic devices
• Optional upgrades include rod extensions, MicroShield®, and Lumi-lite

Applications:

• Pairs of doors
• Double egress openings
• Metal or wood door materials

Specifications:

• Door Widths: 24″, 30″–36″, and 36″–48″ (custom sizes available)
• Door Height: Standard 7′ (213 cm) with device centerline at 39-15/16″ (101 cm) from floor; optional heights available using suffix -8, -9, -10
• Door Thickness: 1-3/4″ standard; optional up to 3-1/2″
• Minimum Stile Width: 4-1/2″ (114 mm)
• Projection: 3-1/4″ active, 2-3/4″ dogged
• Top Latchbolt: 3/4″ pullman-type with automatic deadlatching
• Bottom Bolt: 5/8″ deadbolt, held retracted during door swing
• Vertical Rods: 1/2″ O.D. tubular brass, bronze, or stainless steel with rod guides
• Strike: Top: 726; Bottom: Flush-mounted 790; Optional 794 floor strike for threshold openings
• Fasteners: Machine screws and wood door fasteners standard for panic hardware; sex nuts and bolts supplied standard for fire exit hardware
• Trims: 620F series escutcheon trim, 630F series pull/thumbpiece trim, 680F series offset pull trim, 540F series rose trim

Compliance & Certifications

• ANSI/BHMA A156.3, Type 2, Grade 1
• UL/cUL listed for panic and fire exit hardware
• Windstorm and hurricane-rated options available

Warranty:

• 5-year limited warranty

Exit Only (trim sold separately).
