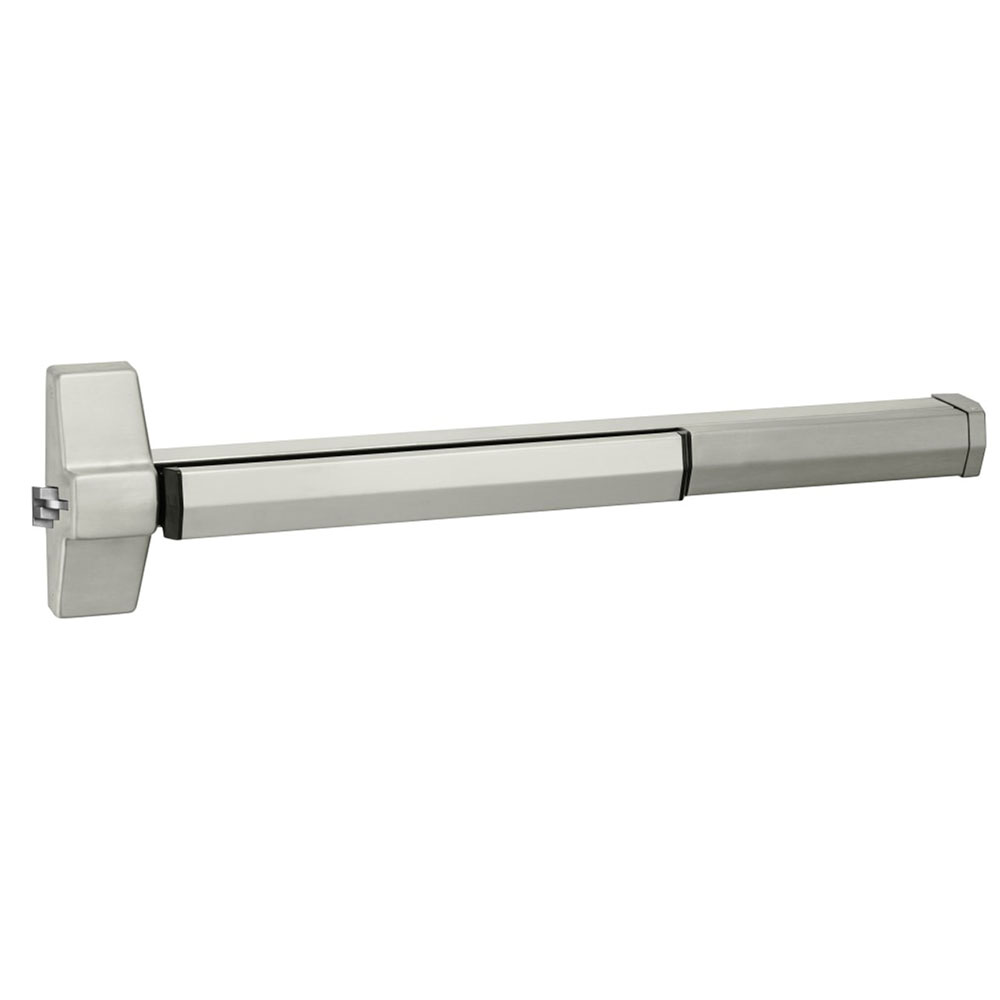

Accentra 7150 SquareBolt Rim Exit Device

Accentra 7150 SquareBolt Rim Exit Device combines smooth operation with added security. While it opens just as easily as a standard latchbolt, its SquareBolt® design provides a stronger barrier against forced entry. As a result, the bolt locks firmly in place and helps prevent carding, prying, shaking, and other common break-in methods.

In addition, this rim exit device is built for easy installation and long-term use. Because it is non-handed, it installs quickly on both left- and right-hand doors. Moreover, it can be retrofitted onto existing 7100 Series templated doors, making it a practical upgrade for improved security.

Key Features:

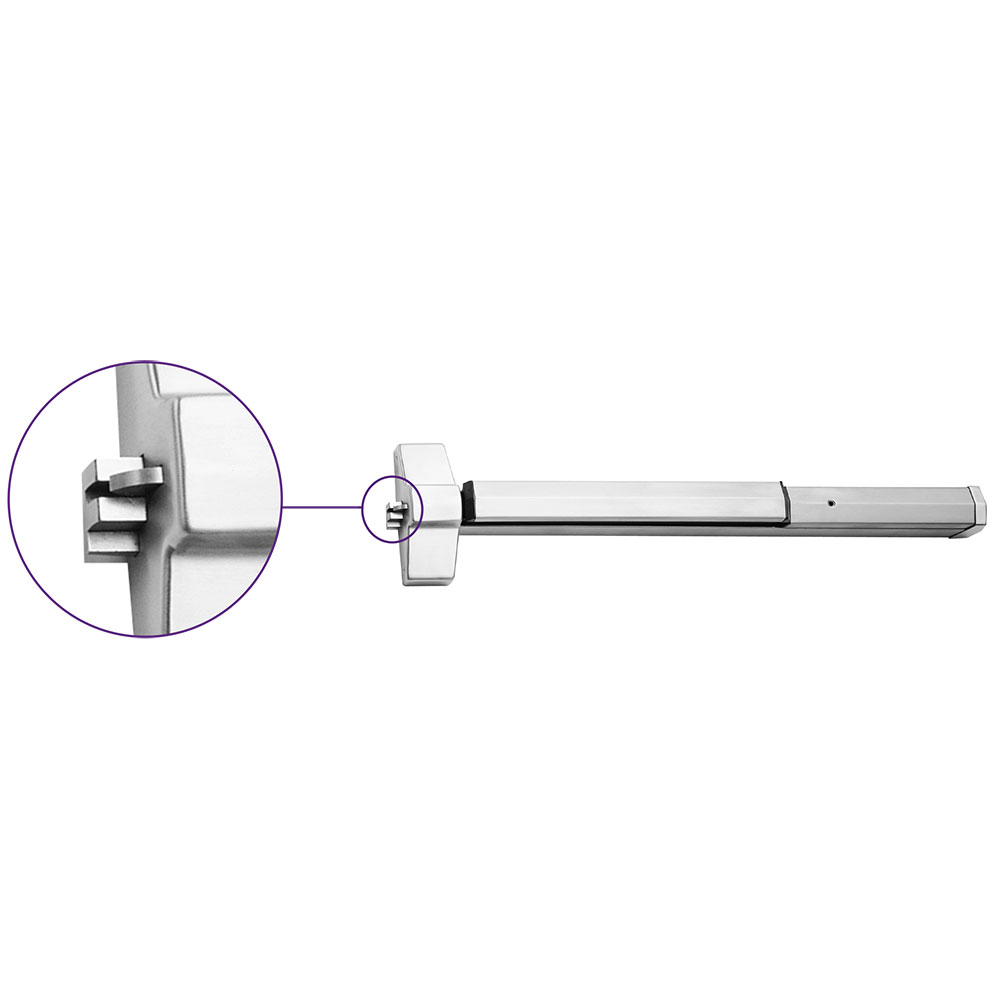

• SquareBolt® security deadbolt engineered for maximum holding power
• Easy-to-install non-handed design
• Retrofittable on existing 7100 Series templated doors
• Fully adjustable surface-mounted roller strike with positive locking plate and shims
• Optional double cylinder function (handing required)
• Available hurricane-resistant model; specify 7150(F)WS
• Standard hex key dogging on panic devices
• Optional finishes and upgrades, including MicroShield® and Lumi-lite

Applications:

• Single swing doors
• Pairs of doors with removable mullions
• Metal, wood, or composite door constructions

Specifications:

• Door Widths: 24″ (60 cm), 30″–36″ (76–91 cm), 36″–48″ (91–122 cm)
  • Optional sizes available by special order
• Door Thickness: 1-3/4″ (44 mm) standard; optional up to 3-1/2″
• Minimum Stile Width: 4-1/2″ (114 mm)
• Projection: 3-1/4″ active; 2-3/4″ dogged
• Deadbolt: 1″ slide bolt with full 3/4″ projection
• Strike: 757F standard; 793 optional for double doors (panic only)

Compliance & Certifications

• ANSI/BHMA A156.3, Type 4 or 28, Grade 1
• UL/cUL listed for panic and fire exit hardware
• Windstorm and hurricane-rated options available

Warranty:

• 5-year limited warranty

Exit Only (trim sold separately).
