Description

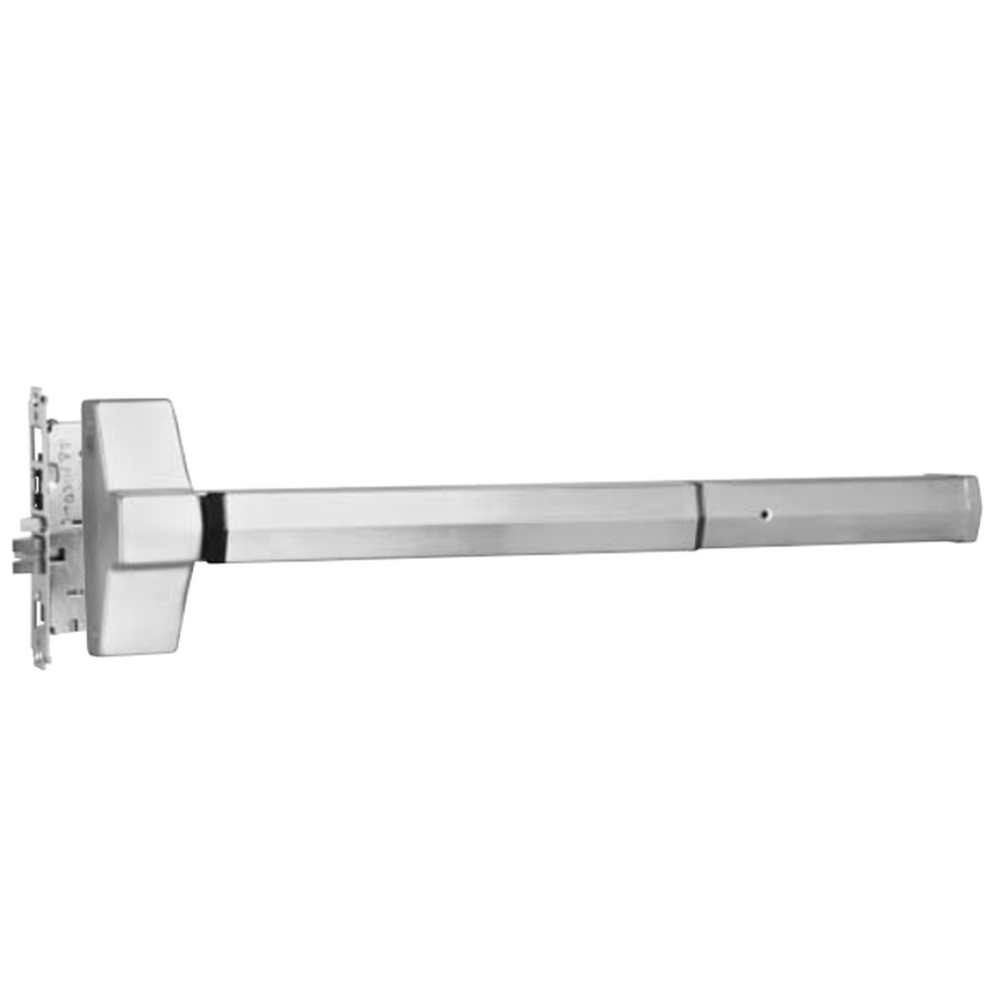

Accentra 7130 Mortise Lock Exit Device

Accentra 7130 Mortise Lock Exit Device integrates an ASSA ABLOY ACCENTRA® 8700 Series Mortise Lock to deliver dependable life safety and added security. While it is designed for smooth and reliable egress, the modified mortise lock also provides enhanced locking strength for single doors or the active leaf of paired doors.

In addition, this exit device is ideal for applications where controlled access and durability are required. Because the 8700 Series mortise lock is specially modified for exit device use only, it ensures consistent performance in high-traffic commercial environments.

Key Features:

• Integrated ACCENTRA® 8700 Series mortise lock
• Designed for single doors or active leaf of paired doors
• Exit-only function for life safety applications
• Two-piece deadlocking stainless steel latchbolt for added security
• Non-handed curved lip strike for flexible installation
• Standard hex key dogging on panic devices
• Optional upgrades including cylinder dogging, MicroShield®, and Lumi-lite

Applications:

• Single swing doors
• Pairs of doors with vertical rod devices or automatic flush bolts
• Metal, wood, or compatible door materials

Specifications:

• Door Widths: 24″, 30″–36″, and 36″–48″ (custom sizes available)
• Door Thickness: 1-3/4″ standard; optional 2″ and 2-1/4″
• Minimum Stile Width: 4-1/2″
• Projection: 3-1/4″ active, 2-3/4″ dogged
• Latchbolt: Two-piece mechanical 3/4″ deadlocking stainless steel with anti-friction insert and auxiliary deadlocking latch
• Strike: Curved lip, non-handed 798; optional 712 for pairs with astragals; optional 718 open back strike
• Fasteners: Machine screws and wood door fasteners standard for panic hardware; sex nuts and bolts supplied standard for fire exit hardware

Compliance & Certifications

• ANSI/BHMA A156.3, Type 3, Grade 1
• UL/cUL listed for panic and fire exit hardware

Dogging

• Hex key dogging supplied standard on panic devices

Warranty:

• 5-year limited warranty

Exit Only (trim sold separately).
