Description

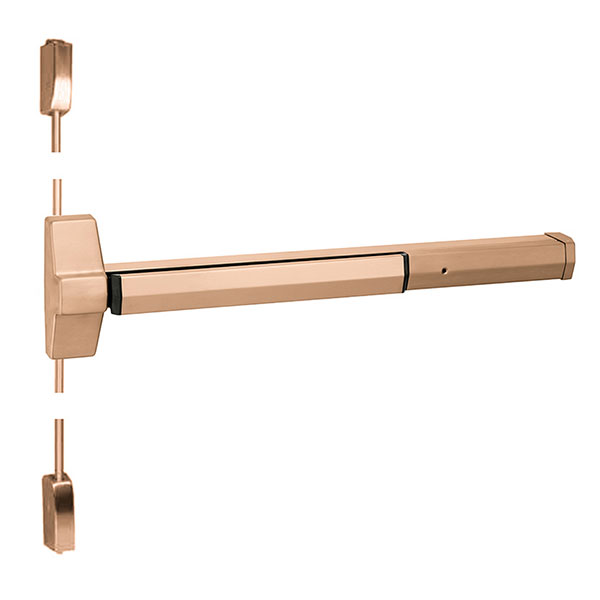

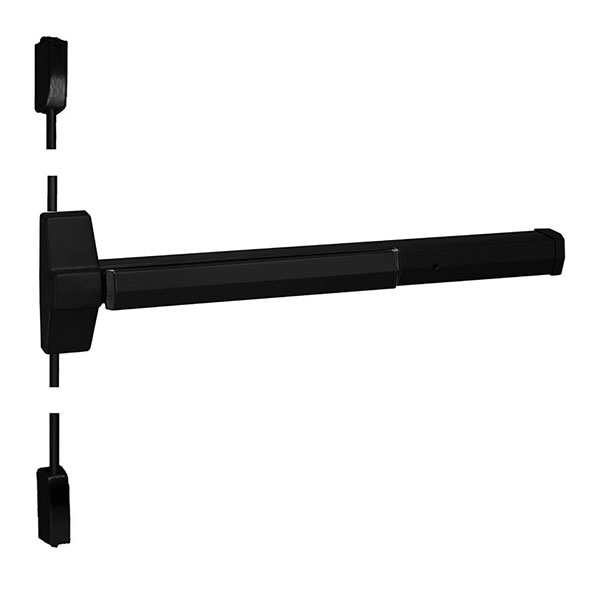

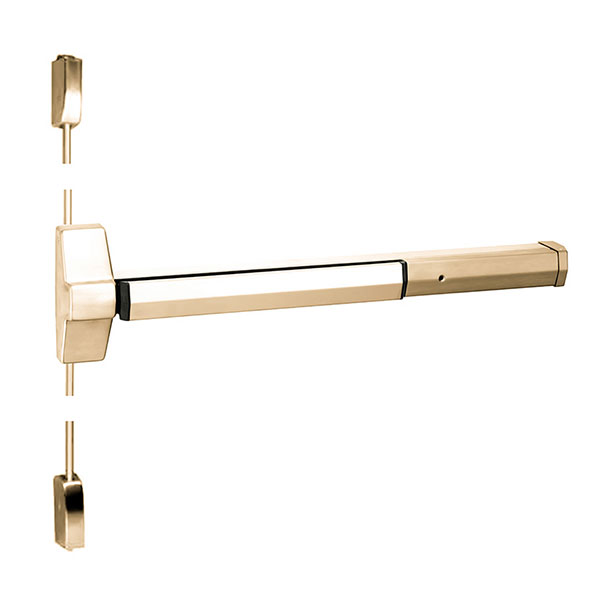

Accentra 7110 Surface Vertical Rod Exit Device

Accentra 7110 Surface Vertical Rod Exit Device is made for wide stile and flush doors where extra security is needed through two-point latching. Although it provides smooth and reliable egress, its surface vertical rod design also ensures secure top and bottom locking for both panic and fire-rated openings.

Furthermore, it works well for pairs of doors and double egress applications. Because it includes a bottom deadbolt and a fully adjustable roller strike, it offers consistent latching and dependable performance in busy commercial spaces. In addition, it is easy to maintain and built to last. Therefore, it is a practical choice for high-traffic areas.

Key Features:

• Designed for wide stile and flush doors
• Handed design; field reversible with specified handing
• Bottom deadbolt for secure two-point latching
• Fully adjustable roller strike for proper alignment
• Standard hex key dogging on panic devices
• Optional upgrades including cylinder dogging, rod extensions, MicroShield®, and Lumi-lite

Applications:

• Single swing doors
• Pairs of doors with removable mullions
• Metal, wood, or composite door materials.

Specifications:

• Door Widths: 24″, 30″–36″, and 36″–48″ (custom sizes available)
• Door Height: 7′ standard; up to 8′ (fire) and 10′ (panic) with rod extensions
• Door Thickness: 1-3/4″ standard; optional up to 3-1/2″
• Minimum Stile Width: 4-1/2″
• Projection: 3-1/4″ active, 2-3/4″ dogged
• Top Latchbolt: 3/4″ pullman-type with automatic deadlatching
• Bottom Bolt: 5/8″ deadbolt, held retracted during door swing

Compliance & Certifications

• ANSI/BHMA A156.3, Type 2, Grade 1
• UL/cUL listed for panic and fire exit hardware

Warranty:

• 5-year limited warranty

Exit Only (trim sold separately).
