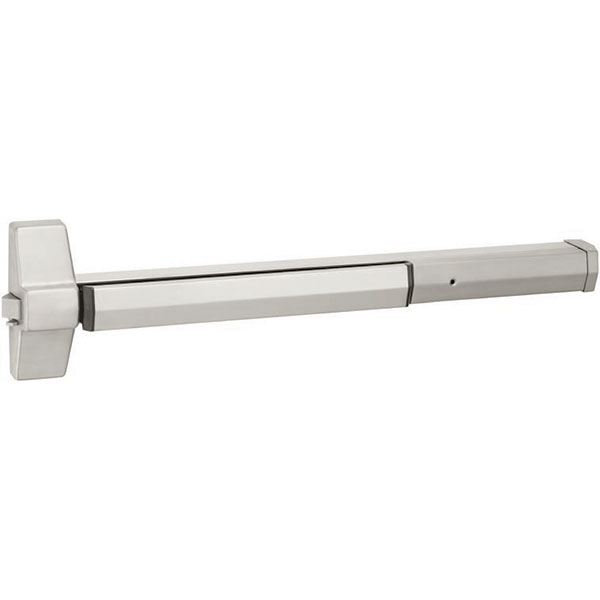

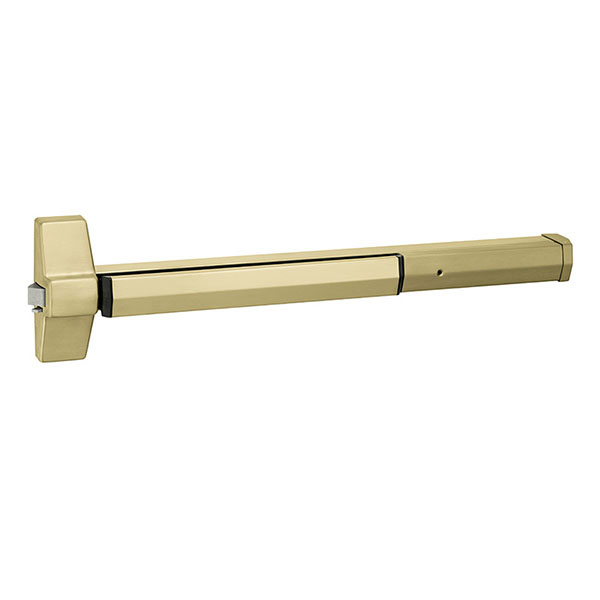

Accentra 7100 Rim Exit Device

The Accentra 7100 Rim Exit Device is designed for single doors or pairs of doors made from metal, wood, or composite materials. Most importantly, it provides safe and reliable egress in high-use areas. In addition, its flexible design works with various trims and finishes, so it can complement any style. At the same time, the device is non-handed, which makes installation quick and simple. Furthermore, it offers an optional double cylinder function, giving extra flexibility and security. As a result, this device is ideal for commercial, educational, and high-traffic spaces. Moreover, its corrosion-resistant components help ensure long-lasting performance.

Key Features:

• Designed for wide stile doors, so it fits larger openings easily
• Includes a 3/4″ throw deadlocking stainless steel pullman latchbolt, which improves security
• Electroplated ferrous components resist corrosion, therefore increasing durability
• Optional double cylinder function is available, and handing must be specified
• Non-handed design simplifies installation, making it faster and easier for installers

Applications:

• Suitable for single swing doors, as well as pairs of doors with removable mullions
• Works with metal, wood, or composite doors
• Intended specifically for high-use, panic-rated openings

Specifications:

• Door Opening Width: 24″ for 24″ doors, 36″ for 30″–36″ doors, 48″ for 36″–48″ doors
  (Alternate sizes available by special order)
• Door Thickness: 1-3/4″ standard; optional up to 3-1/2″
• Minimum Stile Width: 4-1/2″ (114mm)
• Projection: 3-1/4″ active; 2-3/4″ dogged
• Latchbolt: 3/4″ deadlocking stainless steel pullman-type
• Strikes: 757F standard; 793 optional for double doors (panic only)
• Fasteners: Machine screws and wood fasteners standard; sex nuts and bolts standard for fire exit hardware
• Trims: 620F escutcheon, 630F pull/thumbpiece, 680F offset pull, 540F rose, 121NL cylinder only
• Handing: Non-handed
• Dogging: Hex key dogging standard on panic devices; optional cylinder dogging
• ANSI/BHMA: A156.3 Type 1, Grade 1 certified
• UL/cUL: FVSR/FVSR Panic hardware; GXHX/GXHX7 Fire exit hardware (F)

Options:

• 5CH – 5LB pressure release
• Cylinder dogging
• Shim kit #723
• Sex nuts and bolts
• MicroShield®
• Lumi-lite

Warranty:

• 5-year limited warranty

Exit Only (trim sold separately).
