Description

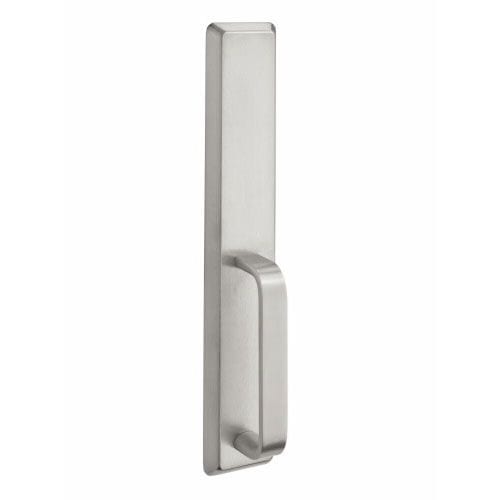

Accentra 634F Pull Dummy Exit Device Trim

The Accentra 634F Pull Dummy Exit Device Trim is designed for doors that require a fixed pull handle rather than an operating lever. Intended for dummy applications, this trim allows the door to be pulled open when the exit device is dogged, making it ideal for controlled or inactive door leaves in commercial settings. Built for strength and long-term use, it meets ANSI/BHMA Grade 1 standards for durability and performance.

This pull trim through-bolts directly to the exit device for added strength and stability. In addition, beveled plate edges improve resistance to tampering and abuse, while the solid construction supports reliable use in high-traffic environments. The trim is ADA compliant and integrates seamlessly with Accentra and Yale exit devices.

Designed for standard 1-3/4″ (44mm) doors, the trim can also accommodate doors up to 2-1/4″ (57mm) thick or shim-mounted devices when specified at the time of order. Multiple finish options allow easy coordination with existing door hardware.

Key Features

• Function: Dummy Pull Trim (ANSI 02) – pull to open when device is dogged
• Certification: ANSI/BHMA A156.3 Grade 1
• Compliance: ADA compliant
• Construction: Through-bolted pull plate for added strength
• Security Design: Beveled sides improve attack resistance
• Door Thickness:
  • Standard: 1-3/4″ (44mm)
  • Optional: Up to 2-1/4″ (57mm) or shim-mounted (specify on order)
• Plate Dimensions: 2-3/4″ x 15-1/2″ x 5/8″ (70mm x 394mm x 16mm)
• Pull Dimensions: 6-7/16″ (164mm) on centers x 2-1/8″ (54mm) projection
• Cylinder: Not included; 1-1/2″ mortise cylinder required for mortise trim (if applicable)

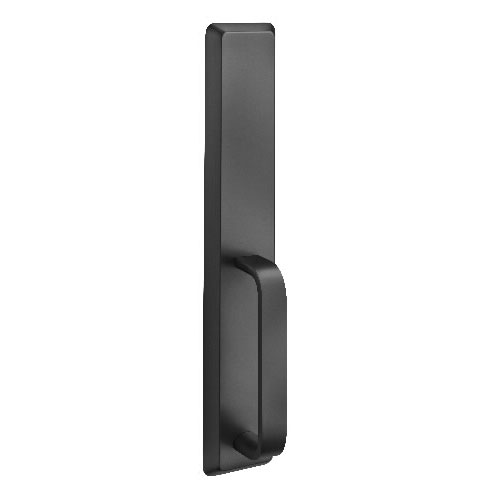

• Finishes: 605, 606, 613E, 629, 630, BSP, WSP
• Warranty: 5-year limited warranty

Compatibility

• For use with Accentra 7000, 6100, and 2100 Series exit devices

The Accentra 634F Pull Dummy Exit Device Trim is well suited for commercial buildings, schools, healthcare facilities, and offices where durable, non-operational exterior trim is required. It offers a clean appearance, dependable strength, and code-compliant performance for demanding environments.
