Description

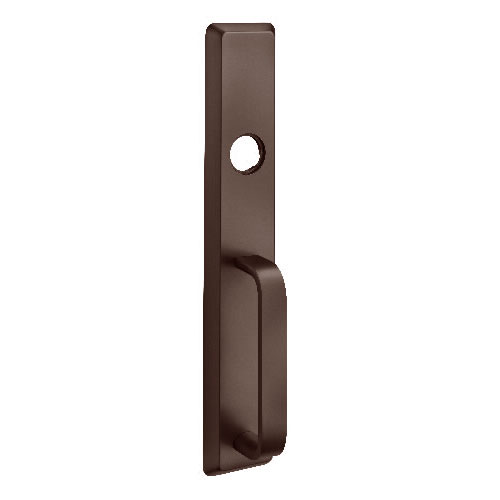

Accentra 632F Pull Nightlatch Exit Device Trim

The Accentra 632F Pull Nightlatch Exit Device Trim provides controlled exterior access for doors that require a pull handle with keyed entry. Designed for nightlatch applications, this trim allows the key to retract the latchbolt, while the interior exit device always provides free egress. Built for strength and long-term use, it meets ANSI/BHMA Grade 1 standards for durability and reliable performance in commercial environments.

This pull trim through-bolts directly to the exit device for added strength and stability. In addition, beveled plate edges help improve resistance to tampering and abuse, while the solid construction supports dependable operation in high-traffic locations. The trim is ADA compliant and integrates seamlessly with Accentra and Yale exit devices.

Designed for standard 1-3/4″ (44mm) doors, the trim can also accommodate doors up to 2-1/4″ (57mm) thick or shim-mounted devices when specified at the time of order. A 1-1/8″ rim cylinder (sold separately) provides keyed nightlatch control, allowing secure entry without compromising safe exit.

Key Features

• Function: Pull Nightlatch (ANSI 03) – key retracts latchbolt
• Certification: ANSI/BHMA A156.3 Grade 1
• Compliance: ADA compliant
• Construction: Through-bolted pull plate for added strength
• Security Design: Beveled sides improve attack resistance
• Door Thickness:
  • Standard: 1-3/4″ (44mm)
  • Optional: Up to 2-1/4″ (57mm) or shim-mounted (specify on order)
• Plate Dimensions: 2-3/4″ x 15-1/2″ x 5/8″ (70mm x 394mm x 16mm)
• Pull Dimensions: 6-7/16″ (164mm) on centers x 2-1/8″ (54mm) projection
• Cylinder: 1-1/8″ rim cylinder required (sold separately)
• Finishes: 605, 606, 613E, 629, 630, BSP, WSP
• Warranty: 5-year limited warranty

Compatibility

• For use with Yale Accentra 7000, 6000, 2100, and 1500 Series exit devices

The Accentra 632F Pull Nightlatch Exit Device Trim is ideal for commercial buildings, schools, healthcare facilities, and offices where keyed exterior access and durable pull hardware are required. It delivers secure entry, dependable strength, and code-compliant exit performance for demanding applications.
