Description

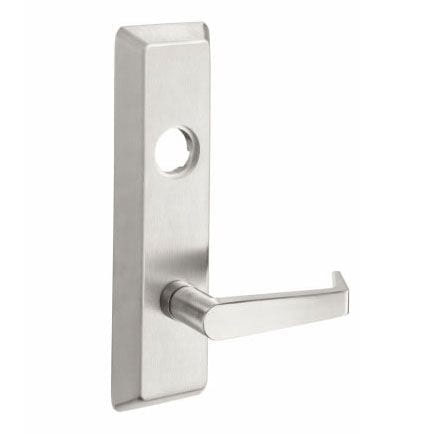

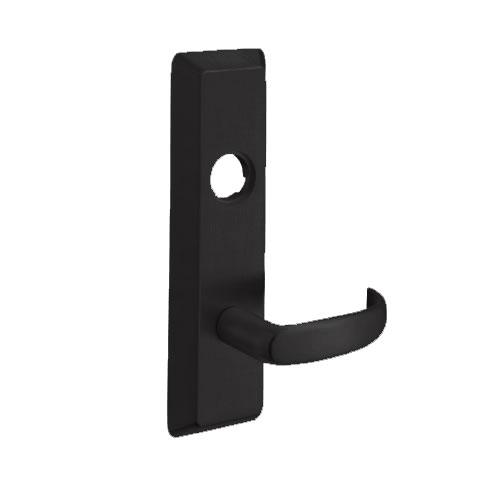

Accentra 626F Escutcheon Lever Trim Exit Device
The Accentra 626F Escutcheon Lever Trim delivers high-level security and durability for exit device applications requiring Classroom or Storeroom functions (ANSI 08/09). Part of the 620F Series, this trim is engineered for demanding commercial and institutional environments where strength, vandal resistance, and long-term performance are critical.
This trim through-bolts directly to the exit device for enhanced strength and stability. In addition, its beveled escutcheon edges improve attack resistance, while the solid forged/cast escutcheon and free-wheeling lever design help resist vandalism and abuse. Certified to ANSI/BHMA A156.3 Grade 1, the 626F meets rigorous standards for safety and reliability.
Designed for standard 1-3/4″ (44mm) doors, the trim can accommodate doors up to 2-1/4″ (57mm) thick or shim-mounted devices when specified at the time of order. A flush-mounted cylinder in 6-pin applications further enhances security, while the classroom or storeroom cylinder function provides controlled access as needed.
Key Features
- ANSI Function: Classroom or Storeroom (ANSI 08 & 09)
- Certification: ANSI/BHMA A156.3 Grade 1
- Construction: Solid forged/cast escutcheon with free-wheeling trim
- Security Design: Beveled sides improve attack resistance; flush cylinder for added protection
- Mounting: Through-bolted to exit device for superior strength
- For use with all Accentra 7000, 6000, 2100, 1500 Series Exit devices
- Door Thickness:
- Standard: 1-3/4″ (44mm)
- Optional: Up to 2-1/4″ (57mm) or shim-mounted (specify on order)
- Projection: 2-5/8″
- Dimensions: 3″ x 10-1/4″ x 13/16″ (76mm x 260mm x 19mm)
- Warranty: 5-year limited warranty
Function Options
- Classroom (ANSI 08): Cylinder controls lever
- Storeroom (ANSI 09): Cylinder controls lever
The Accentra 626F Escutcheon Lever Trim is ideal for schools, healthcare facilities, offices, and other high-traffic environments requiring controlled access and vandal-resistant exit hardware.
