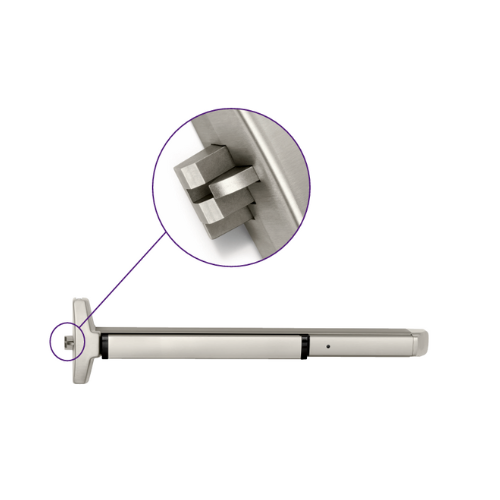

Accentra 6250ED SquareBolt Panic Rim Exit Device

The Accentra 6250ED SquareBolt Panic Rim Exit Device is a high-security solution designed specifically for narrow stile doors. With its innovative SquareBolt construction, this device delivers superior latch engagement and reliable performance, making it ideal for both single doors and paired doors in panic-rated applications.

Key Features:

• Innovative SquareBolt design for larger bolt engagement and maximum holding power
• Delivers higher security than standard rim devices
• Non-handed for easy installation
• Retrofittable onto existing 7200 Series templated doors
• Fully adjustable 3/8″ diameter roller strike with positive locking plate and shims
• Compatible with narrow stile trim

Applications:

• Single swing narrow stile doors
• Pairs of narrow stile doors with removable mullions
• Metal and aluminum doors
• Panic-rated doors only

Specifications:

• Rail Sizes: 36, 42, 48 (special sizes available)
• Door Thickness: 1-3/4″ standard (optional up to 2-1/4″)
• Minimum Stile Width: 2-5/8″ single / 3-1/8″ pair
• Projection: 3-1/4″ active, 2-1/2″ dogged
• Latchbolt: 1″ slide projection bolt with full 3/4″ projection
• Strikes: 759 standard; 793 optional for pairs
• Fasteners: Machine screws or wood door screws standard
• Handing: Non-handed
• ANSI/BHMA Certified: A156.3 Type 4 & 28 Grade 1
• Dogging: Hex key standard; optional cylinder dogging (-5)
• Shim Kit: #623NS optional

Standards & Performance:

• ANSI/BHMA A156.3 Type 4 and 28 Grade 1 standards

Options:

• Anti-pry bracket #625AP
• Various finish options available

Warranty:

• 10-year limited warranty.

Exit Only (trim sold separately).
