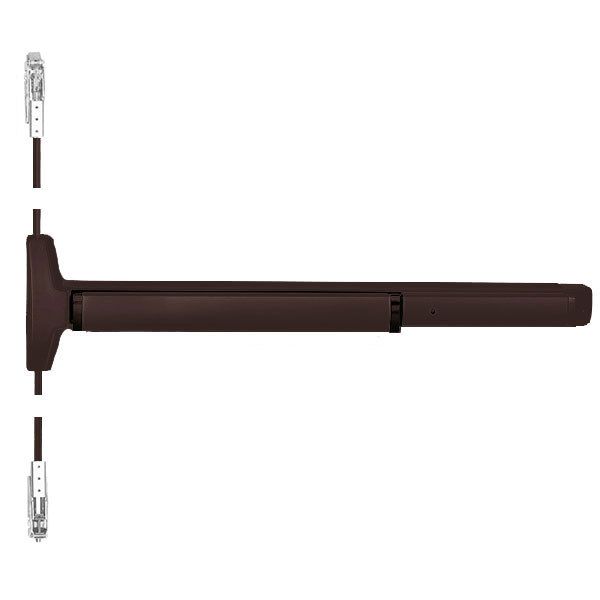

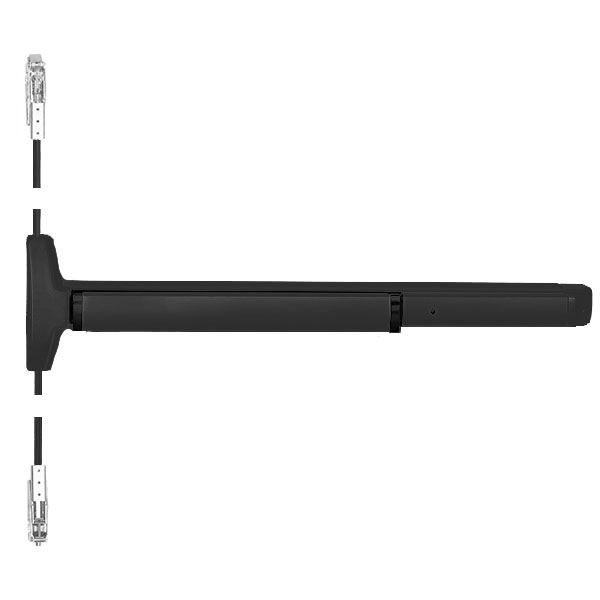

Accentra 6220ED Concealed Vertical Rod Exit Device

The Accentra 6220ED Concealed Vertical Rod Panic Exit Device is designed for narrow stile aluminum and metal doors where secure two-point latching is needed. Most importantly, its concealed vertical rod design provides a clean look while ensuring reliable panic-rated performance. At the same time, it allows smooth operation for fast and safe egress. Additionally, the device is field reversible, which makes installation easier and more flexible.

Key Features:

• Concealed vertical rod design provides secure top and bottom latching
• Designed specifically for narrow stile doors
• Bottom deadbolt improves holding strength and security
• Top pullman latch includes automatic deadlatching
• Fully adjustable roller strike ensures smooth and consistent engagement
• Handed design with field-reversible capability for installation flexibility

Applications:

• For pairs of narrow stile doors
• Suitable for metal and aluminum doors
• Intended for panic-rated doors only

Specifications:

• Rail Sizes: 36 for 30″–36″ doors, 42 for 36″–42″ doors, 48 for 42″–48″ doors
  (Alternate sizes available by special order)
• Door Thickness: 1-3/4″ standard; optional 2″ and 2-1/4″
• Minimum Stile Width: 2-3/4″ (70mm), not including glass stop
• Projection: 3-1/4″ active; 2-1/2″ dogged
• Latchbolt: Top 3/4″ pullman style with auto deadlatching; bottom 5/8″ deadbolt held retracted during door swing
• Strikes: Top 791 roller type; bottom 790 flush-mounted (794 floor strike optional for threshold openings)
• Fasteners: Machine screws or wood door screws standard for panic
• Handing: Handed; field reversible
• Vertical Rods: 1/2″ (13mm) OD telescoping tubular rods
• Door Height: Standard adjustable to 8′; optional 9′ and 10′

Standards & Performance:

• ANSI/BHMA A156.3 Type 6, Grade 1 certified

Options:

• Rod extensions
• Bottom pullman latch (panic only)
• Shim kit (#623NS optional)

Warranty:

• 10-year limited warranty.

Exit Only (trim sold separately).
