Description

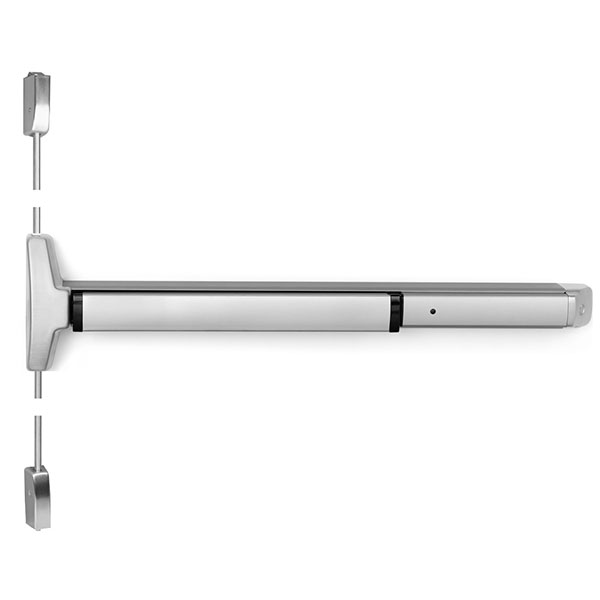

Accentra 6210ED Surface Vertical Rod Panic Exit Device

The Accentra 6210ED Surface Vertical Rod Panic Exit Device is designed for narrow stile doors that require safe and reliable exit hardware. Most importantly, it provides secure two-point latching to support fast egress during emergencies. At the same time, its surface vertical rod design ensures smooth operation on aluminum and metal doors. In addition, field-reversible handing helps make installation easier and more flexible.

Key Features:

• Surface vertical rod design for secure two-point latching
• Designed for narrow stile doors with field-reversible handing
• Top pullman latch with automatic deadlatching for improved security
• Bottom deadbolt provides added holding strength
• Fully adjustable roller strike ensures smooth and consistent operation
• Hex key dogging standard on panic devices; optional cylinder dogging (-5)
• Compatible with rod extensions and bottom pullman latch

Applications:

• Pairs of narrow stile doors
• Metal and aluminum doors
• Panic-rated doors only

Specifications:

• Rail Sizes: 30–36″, 36–42″, 42–48″
• Door Thickness: 1-3/4″ standard (optional 2″ and 2-1/4″)
• Minimum Stile Width: 2-3/4″ (70mm)
• Projection: 3-1/4″ active, 2-1/2″ dogged
• Latchbolt: Top 3/4″ pullman style; bottom 5/8″ deadbolt
• Strikes: Top 791 roller strike; bottom 790 flush-mounted (794 optional for threshold openings)
• Vertical Rods: 1/2″ (13mm) OD tubular brass, bronze, or stainless steel with rod guides
• Door Height: Standard 7′ (optional 8′, 9′, or 10′)

Standards & Performance:

• ANSI/BHMA A156.3 Type 5, Grade 1 certified

Options:

• Rod extensions
• Bottom Pullman Latch (#624NS optional)

Warranty:

• 10-year limited warranty.

Exit Only (trim sold separately).
