Description

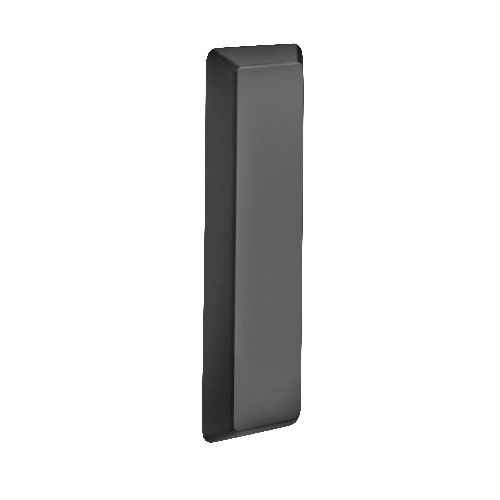

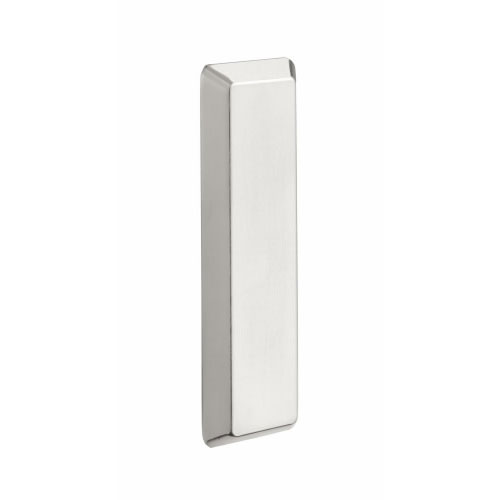

Accentra 620F Exit Only Blank Plate Exit Device Trim
The Accentra 620F Exit Only Blank Plate Exit Device Trim is designed for use with Accentra and Yale 7000, 6000, 2100, and 1500 Series exit devices, providing a durable solution for doors where lever or knob preparation needs to be covered. This exit-only trim features a solid blank escutcheon plate with ANSI Function 01 and is certified ANSI/BHMA A156.3, Grade 1 for superior strength and reliability.
The trim through-bolts to the exit device for added security, while beveled sides improve resistance to forced entry. Its solid forged and cast construction, combined with free-wheeling trim, offers optimal protection against tampering. For applications requiring a 6-pin cylinder, the flush cylinder design adds another layer of security. The trim fits standard 1-3/4″ (44mm) doors, and thicker doors up to 2-1/4″ (57mm) or shim-mounted devices can be specified at the time of order.
Key Features:
- Exit Only Blank Plate for Accentra/Yale 7000, 6000, 2100, 1500 Series
- ANSI Function: 01, ANSI/BHMA A156.3 Grade 1 certified
- Through-bolted trim for strength and durability
- Beveled sides improve attack resistance
- Solid forged/cast escutcheon with free-wheeling trim
- Flush cylinder for added security in 6-pin applications
- Standard door thickness: 1-3/4″ (44mm); specify for doors up to 2-1/4″ (57mm) or shim-mounted
- Dimensions: 3″ x 10-1/4″ x 13/16″ (76mm x 260mm x 19mm)
- 5-year limited warranty
