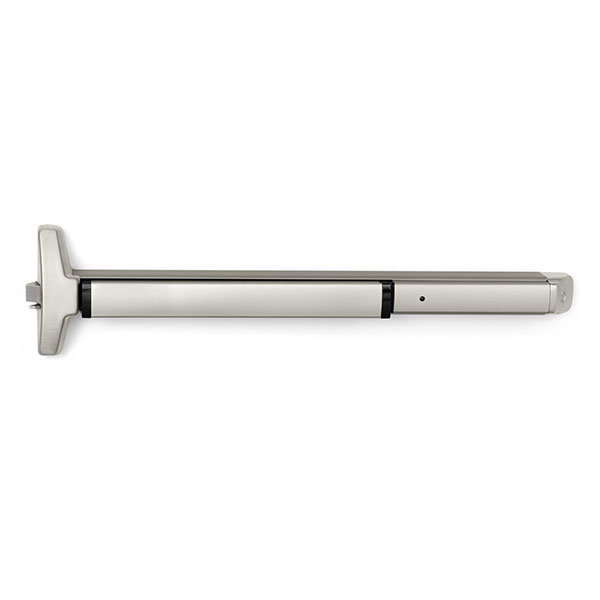

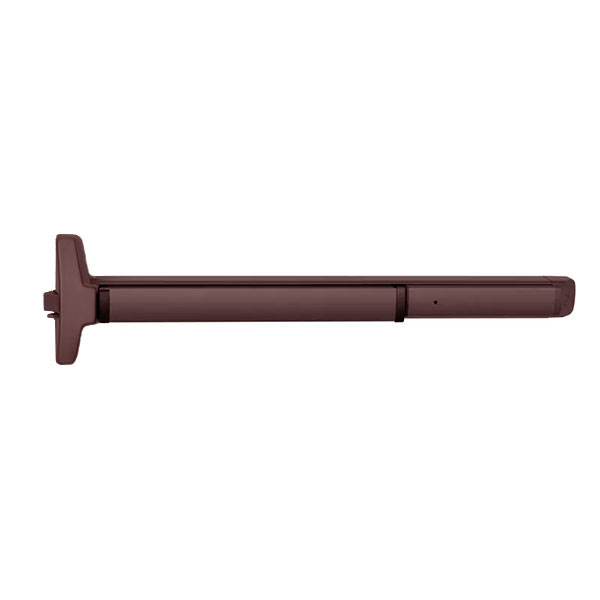

Accentra 6200ED Narrow Style Panic Rim Exit Device

The Accentra 6200ED Narrow Style Panic Rim Exit Device is built for modern narrow stile doors that require safe and reliable egress. From the start, it supports panic-rated applications while maintaining a clean, contemporary look for metal and aluminum doors.

In addition, the device uses a stainless steel Pullman latch with a 3/4″ deadlocking throw to provide consistent security. Because the design is non-handed, installation is faster and more flexible. Moreover, the 6200ED works with narrow stile trim and comes in several finishes. As a result, it blends easily with many door styles.

Key Features:

• Narrow stile rim exit device for panic-rated doors
• Designed to match modern, contemporary door aesthetics
• 3/4″ deadlocking stainless steel Pullman latchbolt
• Non-handed design for easier installation
• Compatible with narrow stile trim options
• Hex key dogging supplied standard on panic devices

Applications:

• Single swing narrow stile doors
• Paired narrow stile doors with removable mullions
• Metal and aluminum door materials

Specifications:

• Rail sizes: 30″–36″, 36″–42″, 42″–48″ (custom sizes available)
• Door thickness: 1-3/4″ standard; optional 2″ and 2-1/4″
• Minimum stile width:
  • Single door: 2-5/8″ (67mm), glass stop not included
  • Paired doors: 3-1/8″ (79mm), glass stop not included
• Projection: 3-1/4″ active; 2-1/2″ dogged
• Latchbolt: Stainless steel Pullman style, 3/4″, deadlocking
• Strikes: 759 standard; 793 optional for paired doors (panic only)
• Fasteners: Machine or wood door screws standard for panic use
• Handing: Non-handed

Standards & Performance:

• ANSI/BHMA A156.3 Type 3, Grade 1

Options:

• Optional cylinder dogging (-5)
• Anti-pry bracket #625AP
• Shim kit #623NS

Warranty:

• 10-year limited warranty.

Exit Only (trim sold separately).
