Description

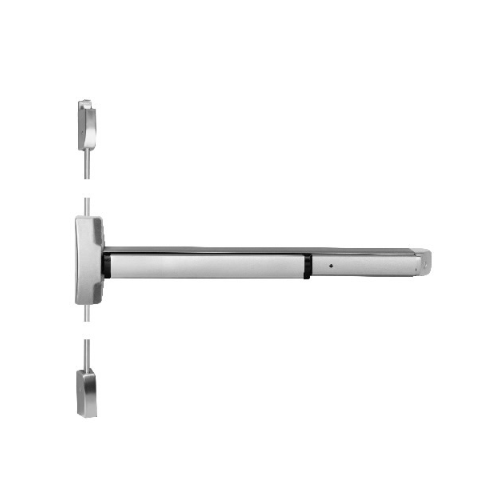

Accentra 6170ED Surface Vertical Rod Exit Device

The Accentra 6170ED Surface Vertical Rod Exit Device provides reliable and secure egress for commercial doors. In addition, it fits wide stile and flush doors up to 10 feet high, supporting one- or two-point latching, which makes it suitable for many applications. Moreover, the device offers a Less Bottom Rod (LBR) option, which is ideal when bottom rod hardware is not needed.

Because it is designed for heavy-duty use, the device features an interlocking top strike and latch mounting plate, which enhances stability. When you choose the LBR option on fire-rated doors, a heat-activated door bolt (thermal pin) ensures compliance with fire codes. Although the device is handed, you can reverse it in the field, allowing for flexible installation. Furthermore, the exit device combines strength, durability, and ease of use. Overall, it delivers consistent performance for high-traffic commercial environments.

Key Features:

• Flexible design: Supports one- or two-point latching
• Wide compatibility: Works on wide stile and flush doors
• Easy installation: Handed device, field-reversible
• Added stability: Interlocking top strike and latch mounting plate

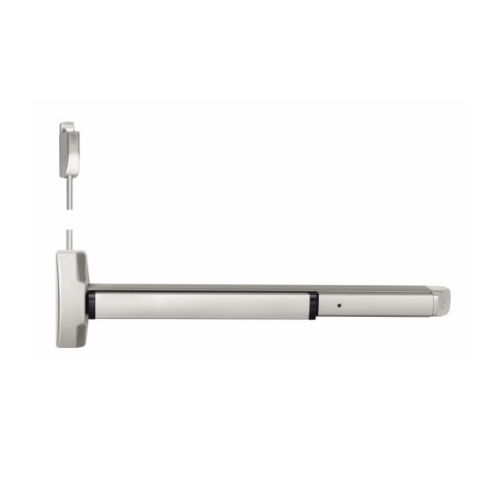

• Optional LBR: Less Bottom Rod available for specific applications
• Fire-rated support: Thermal pin ensures compliance when LBR is used

Applications:

• Single swing doors
• Pairs of doors with removable mullions
• Wide stile metal, wood, aluminum, or composite doors

Specifications:

• Door height: 7′ standard; optional heights 8′, 9′, 10′
• Door thickness: 1-3/4″ standard; optional up to 3-1/2″
• Rail sizes: 24″, 36″, 42″, 48″ (alternate sizes available)
• Minimum stile width: 4-1/2″ (114mm)
• Projection: 3-1/4″ active, 2-1/2″ dogged
• Latchbolt: Top 3/4″ Pullman-style with auto-deadlatching; Bottom 5/8″ deadbolt, retracted during door swing
• Strikes: Top 726, Bottom flush-mounted 790; optional 794 floor strike for threshold openings
• Vertical rods: 1/2″ O.D. brass, bronze, or stainless steel with rod guides
• Fasteners: Machine or wood screws standard; sex nuts and bolts supplied for fire-rated applications

Standards & Performance:

• ANSI/BHMA A156.3 Type 2, Grade 1 certified
• Hex key dogging standard on panic devices; optional cylinder dogging available

Options:

• Rod extensions
• Less Bottom Rod (LBR)
• Shim kit #624SK
• Multiple finishes available

Warranty:

• 10-year limited warranty.

Exit Only (trim sold separately).
