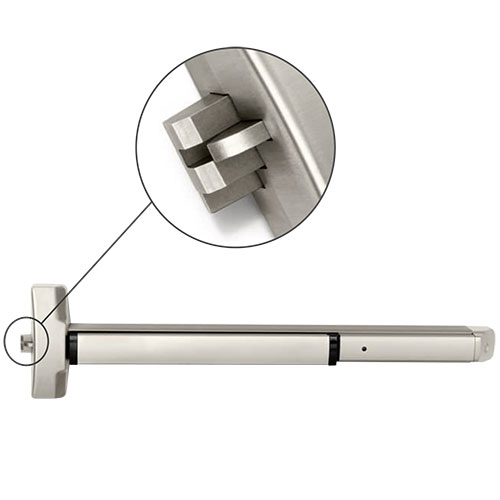

Accentra 6150ED Rim Squarebolt Exit Device

The Accentra 6150ED Rim SquareBolt Exit Device delivers strong security for busy commercial doors. Unlike standard rim devices, its SquareBolt® design creates deeper latch contact; as a result, it resists prying, carding, rattling, and forced entry more effectively.

In addition, this rim-mounted device supports both single doors and paired doors with removable mullions. Because it features a non-handed design, installation is quicker and easier. Moreover, retrofit capability allows it to mount on existing 7000 Series templated doors. Together with an adjustable roller strike, the device ensures smooth alignment and dependable locking in daily use.

Key Features:

• Enhanced security with larger SquareBolt® latch engagement
• Designed for maximum holding power and higher resistance to forced entry
• Non-handed design for easier installation
• Retrofit compatible with existing 7000 Series templated doors
• Adjustable surface-mounted roller strike with positive locking plate and shims
• Optional double cylinder function for added control
• Hex key dogging standard on panic devices

Applications:

• Single swing doors
• Pairs of doors with removable mullions
• Wide stile aluminum, metal, wood, or composite doors

Specifications:

• Door sizes: 24″, 30″–36″, 36″–42″, 42″–48″ (alternate sizes available by special order)
• Door thickness: 1-3/4″ standard (optional up to 3-1/2″)
• Minimum stile width: 4-1/2″ (114mm)
• Projection: 3-1/4″ active, 2-1/2″ dogged
• Latchbolt: 1″ slide bolt with full 3/4″ projection
• Strikes: 757F standard; 793 optional for paired doors (panic only)
• Handing: Non-handed
• Fasteners: Machine or wood screws for panic; sex nuts and bolts standard for fire

Options:

• Double cylinder function (-2), specify hand
• Anti-pry bracket #625AP
• Shim kit #623SK

Warranty:

• 10-year limited warranty.

Exit Only (trim sold separately).
