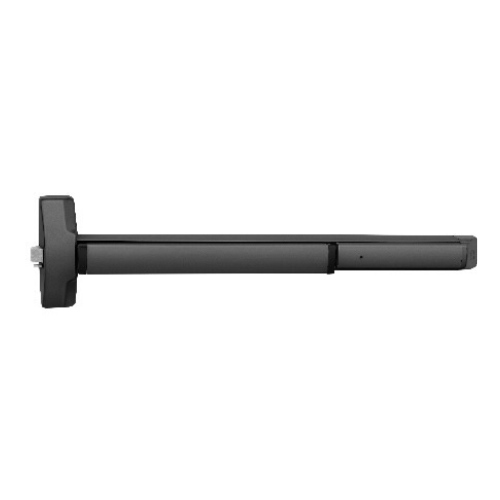

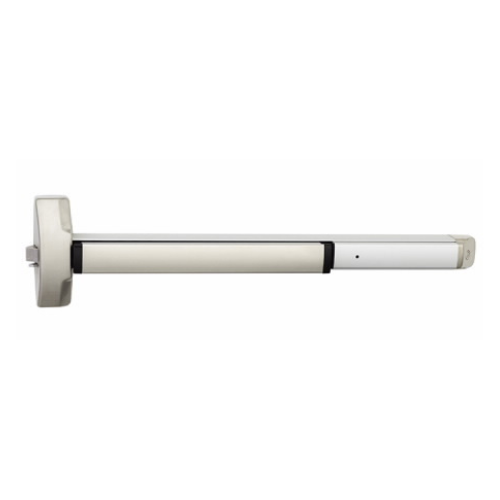

Accentra 6100ED Rim Exit Device

The Accentra 6100ED Rim Exit Device is built for high-traffic commercial spaces where strength and safe egress matter most. In addition, it works on single doors or pairs of doors made of metal, wood, or composite materials, making it a flexible choice for many facilities. Because it is designed for wide stile doors, it also supports multiple trim options to match different needs.

Key Features:

• Certified performance: Meets ANSI/BHMA A156.3 Type 1, Grade 1 standards for commercial use
• Secure latching: Features a 3/4″ deadlocking stainless steel Pullman latchbolt for dependable locking
• Heavy-duty design: Built for frequent use in high-traffic areas
• Easy installation: Non-handed design allows quicker and simpler setup
• Added security options: Available with double cylinder function when required
• Simple operation: Hex key dogging is standard on panic devices

Applications:

• Single swing doors
• Pairs of doors with removable mullions
• Wide stile metal, wood, aluminum, or composite doors

Specifications:

• Door thickness: 1-3/4″ standard; optional sizes up to 3-1/2″
• Rail sizes: 24″, 36″, 42″, 48″ (alternate sizes available)
• Minimum stile width: 4-1/2″ (114mm)
• Projection: 3-1/4″ active, 2-1/2″ dogged
• Latchbolt: 3/4″ stainless steel deadlocking Pullman-type
• Strikes: 757F standard; 793 optional for paired doors (panic only)
• Fasteners: Machine or wood screws standard; sex nuts and bolts for fire-rated openings

Options:

• Double cylinder function
• Anti-pry bracket
• Shim kit #623SK
• Pressure release options

Warranty:

• 10-year limited warranty.

Exit Only (trim sold separately).
