Description

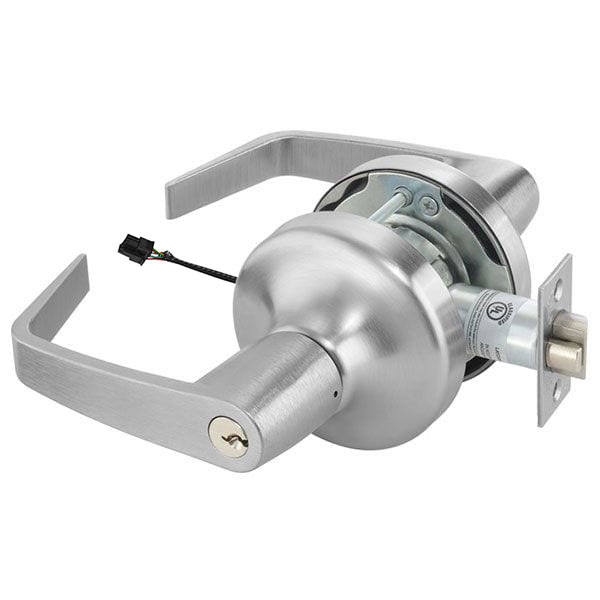

Accentra 5491LN Fail Secure Electrified Lever
The Accentra 5491LN Fail Secure Electrified Lever delivers steady, power-controlled security for commercial and institutional doors. It uses a deadlocking latchbolt that works from either lever, yet when power is off, the outside lever locks to keep the door secure. When power returns, the outside lever unlocks for normal entry, while the inside lever stays free at all times to allow quick and safe exit. In addition, the latchbolt can be retracted by key when power is off, giving you simple manual control whenever needed.
Available Options
- Cylinder Override (Complete Lockset): Includes a mechanical key cylinder for backup manual access in addition to electronic operation.
- Lockbodies (Lockbody-Only Version): Includes only the internal locking mechanism without cylinder or external hardware; requires compatible power and access control.
Lever Options
- Standard Series
- AU – Augusta, MO – Monroe, PB – Pacific Beach, B AU – Augusta
Key Features

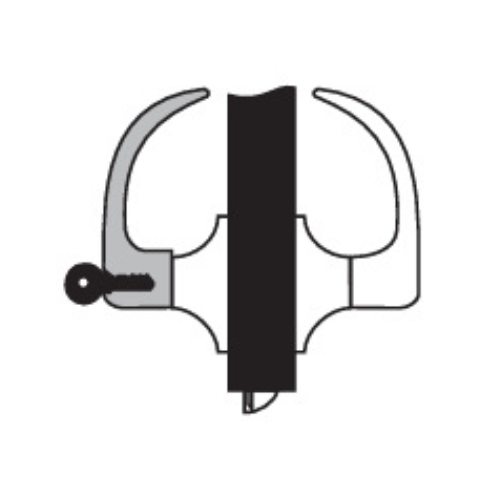

- Function: Fail Secure Electrified Lever
- Operation:
- Deadlocking latchbolt operates by lever from both sides
- Power off locks the outside lever for secure access
- Power on unlocks the outside lever for normal entry
- Inside lever always free for safe egress
- Latchbolt retracts by key when power is off for manual override
- Free-wheeling lever mechanism resists forced rotation
- Self-contained, continuous-duty integral solenoid fits standard cylindrical prep
- Available in Fail Safe or Fail Secure configurations
- Supports 12V or 24V DC
- Construction: Heavy-duty Grade 1 performance for long-term durability
- Connectivity: 8-position ElectroLynx plug connector for simplified wiring
- Compatibility: Fits all 5400LN cylinder options; optional rectifier for AC
- Warranty: 2-year limited warranty
- Applications: Perfect for offices, commercial buildings, secure rooms, and any area that needs power-controlled locking with safe exit.
Benefits
- Provides dependable fail-secure performance during power outages
- Ensures safe exit at all times through the inside lever
- Offers reliable, long-term operation in high-traffic settings
- Installs easily in standard cylindrical door preparations
- Supports multiple voltage and electrified configurations for flexibility
- Backed by Grade 1 durability and UL certification for added confidence
Specifications
- Brand: Accentra (Formerly Yale)
- Usage: Heavy Duty
- ANSI/BHMA Standard: A156.2, Series 4000 Grade 1
- Latch: 1/2″ throw – 1-1/8″ x 2-1/4″ face
- Backset: 2-3/4″
- Strike: 4-7/8″ x 1-1/4″ ASA/ANSI with curved lip (ANSI A115.2 prep)
- Handing: Non-Handed
- Door Thickness: 1-3/4″ to 2-1/4″
- ADA Compliance: Meets A117.1 Accessibility Code
Certifications
- ANSI/BHMA Grade 1 certified for heavy-duty commercial use
- Compliant with ANSI A156.2 (Series 4000) and ANSI A156.41 standards
- ADA and ICC A117.1 accessible design compliant
- UL/cUL fire-rated for up to 3 hours
- Florida Building Code approved (FL# 3063)
- NFPA 80 compliant for fire door applications
- Windstorm and impact resistant (ASTM E330, E1886, E1996)
- Certified to TAS 201, TAS 202, and TAS 203 standards
Manufacturers Website
