Description

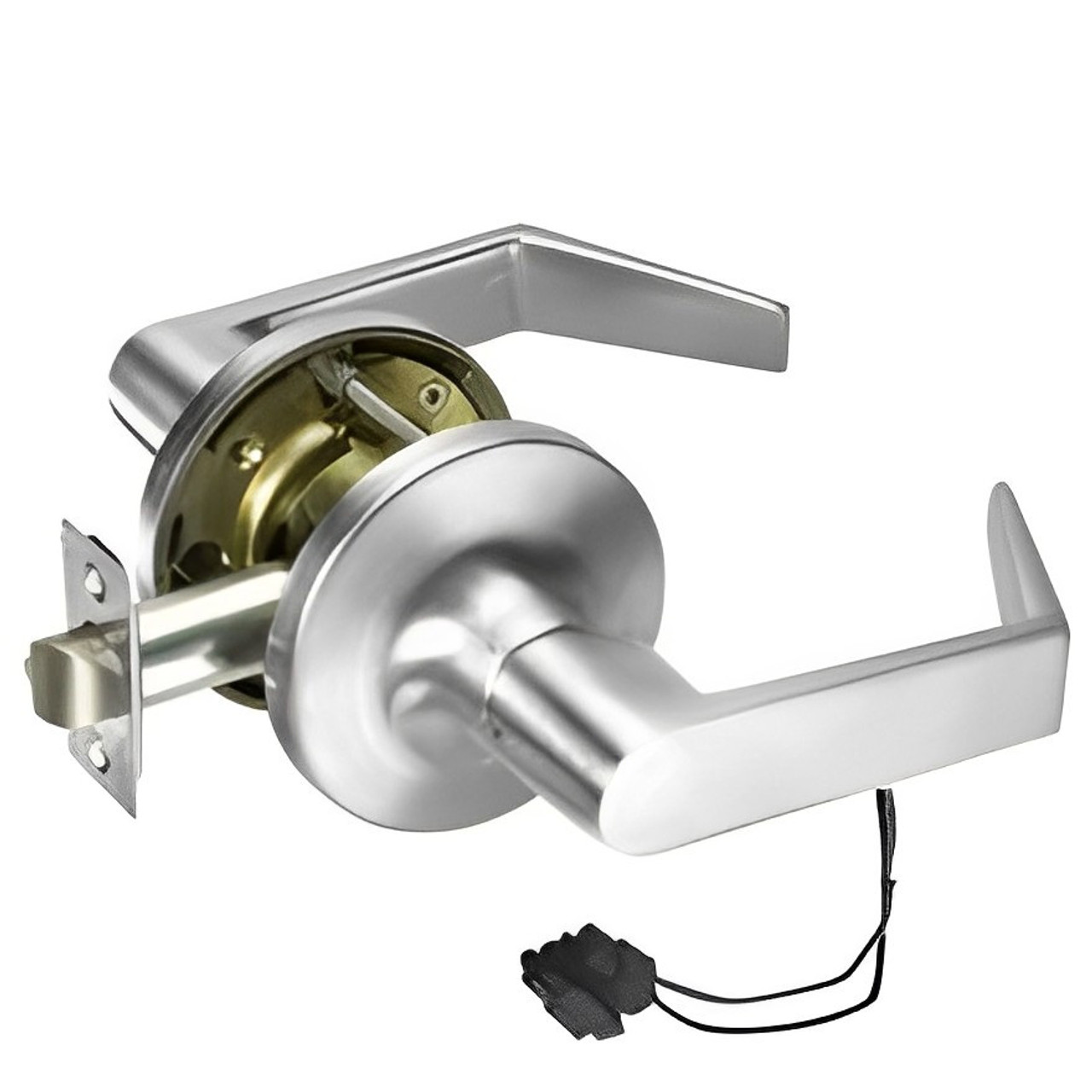

Accentra 5481LN Fail Secure Electrified Lever

The Accentra 5481LN Fail Secure Electrified Lever provides controlled, power-driven security for commercial and institutional doors. It features a deadlocking latchbolt operated by either lever, except when power is off and the outside lever locks for added protection. When power is restored, the outside lever unlocks to allow normal entry, while the inside lever stays free at all times for safe and immediate exit. Designed for high-use environments, this electrified lever supports dependable performance where secure access is essential.

Available Options

• No Cylinder Override (Complete Lockset)
• Lockbodies (Lockbody-Only Version)

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach, B AU – Augusta

Key Features

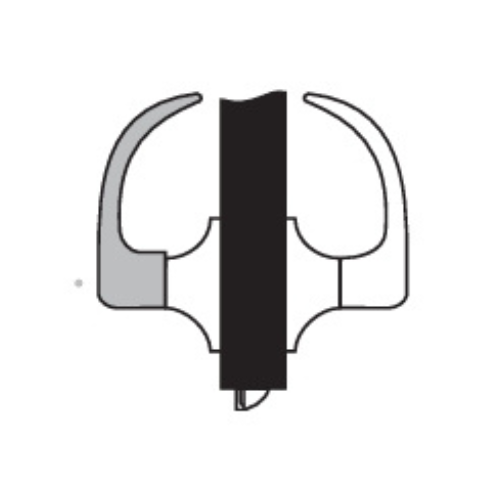

• Function: Fail Secure Electrified Lever
• Operation:
  • Deadlocking latchbolt operates by lever from both sides
  • Power off locks the outside lever for secure access control
  • Power on unlocks the outside lever for normal entry
  • Inside lever always free for safe egress
  • Free-wheeling handles help reduce forced-entry attempts
  • Self-contained, continuous-duty integral solenoid allows installation in standard cylindrical prep
  • Available in Fail Safe or Fail Secure configurations
  • Supports 12V or 24V DC
  • Mechanical cylinder override for manual control during power loss
• Construction: Heavy-duty Grade 1 performance for long-term durability
• Connectivity: 8-position ElectroLynx plug connector for simplified wiring
• Compatibility: Fits all 5400LN cylinder options; optional rectifier for AC
• Warranty: 2-year limited warranty
• Applications: Office doors, commercial buildings, secure rooms, and openings requiring power-controlled security with safe egress

Benefits

• Provides steady, power-controlled security for high-traffic areas
• Delivers reliable performance under frequent use
• Free-wheeling lever helps prevent tampering
• Installs easily in standard cylindrical door preps
• Offers flexible options for voltage and electrified operation
• Backed by Grade 1 and UL certifications for added safety and confidence

Specifications

• Brand: Accentra (Formerly Yale)
• Usage: Heavy Duty
• ANSI/BHMA Standard: A156.2, Series 4000 Grade 1
• Latch: 1/2″ throw – 1-1/8″ x 2-1/4″ face
• Backset: 2-3/4″
• Strike: 4-7/8″ x 1-1/4″ ASA/ANSI with curved lip (ANSI A115.2 prep)
• Handing: Non-Handed
• Door Thickness: 1-3/4″ to 2-1/4″
• ADA Compliance: Meets A117.1 Accessibility Code

Certifications

• ANSI/BHMA Grade 1 certified for heavy-duty commercial use
• Compliant with ANSI A156.2 (Series 4000) and ANSI A156.41 standards
• ADA and ICC A117.1 accessible design compliant
• UL/cUL fire-rated for up to 3 hours
• Florida Building Code approved (FL# 3063)
• NFPA 80 compliant for fire door applications
• Windstorm and impact resistant (ASTM E330, E1886, E1996)
• Certified to TAS 201, TAS 202, and TAS 203 standards
