Description

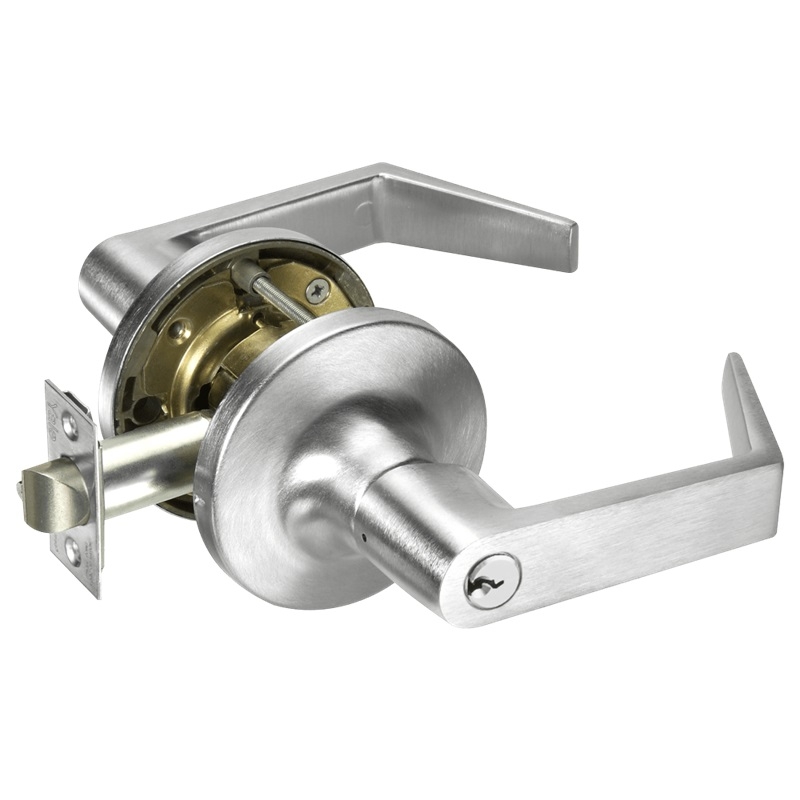

Accentra 5430LN Utility & Institutional Lever

The Accentra 5430LN Utility & Institutional Lever is designed for utility, asylum, and institutional doors where maximum security is required. It features a deadlocking latchbolt, operated by a key in the lever from either side. Both levers remain locked at all times to ensure controlled access. Free-wheeling lever handles in the locked position increase security and resist forced entry. Note: This lever is not compatible with IC core cylinders.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach, B AU – Augusta

Key Features

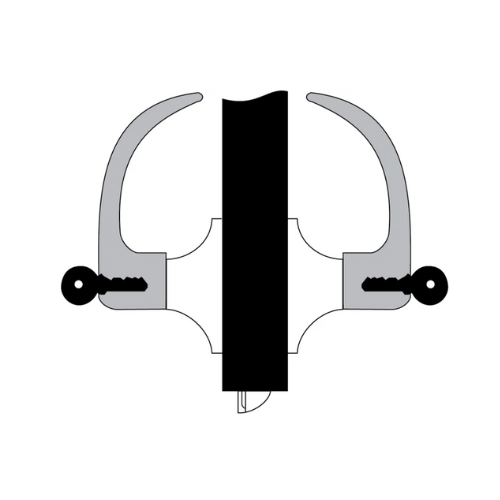

• Function: Utility, Asylum or Institutional – F87
• Operation:
  • Deadlocking latchbolt provides reliable security
  • Key in lever operates latchbolt from either side
  • Both levers remain locked at all times
  • Free-wheeling lever handles prevent forced rotation in locked mode
• Construction: Heavy-duty Grade 1 performance for strength and durability
• Accessibility: ADA compliant for ease of use
• Warranty: 7-year mechanical warranty
• Applications: Utility rooms, institutional facilities, asylums, and any areas requiring maximum security

Benefits

• Provides high-security controlled access for sensitive areas
• Free-wheeling levers resist tampering and forced entry
• Deadlocking latchbolt ensures reliable protection
• Durable Grade 1 construction guarantees long-term performance
• Simple installation and broad door compatibility

Specifications

• Brand: Accentra (Formerly Yale)
• Usage: Heavy Duty
• ANSI/BHMA Standard: A156.2, Series 4000 Grade 1
• Latch: 1/2″ throw – 1-1/8″ x 2-1/4″ face
• Backset: 2-3/4″
• Strike: 4-7/8″ x 1-1/4″ ASA/ANSI with curved lip (ANSI A115.2 prep)
• Handing: Non-Handed
• Door Thickness: 1-3/4″ to 2-1/4″
• ADA Compliance: Meets A117.1 Accessibility Code

Certifications

• ANSI/BHMA Grade 1 certified for heavy-duty commercial use
• Compliant with ANSI A156.2 (Series 4000) and ANSI A156.41 standards
• ADA and ICC A117.1 accessible design compliant
• UL/cUL fire-rated for up to 3 hours
• Florida Building Code approved (FL# 3063)
• NFPA 80 compliant for fire door applications
• Windstorm and impact resistant (ASTM E330, E1886, E1996)
• Certified to TAS 201, TAS 202, and TAS 203 standards
