Description

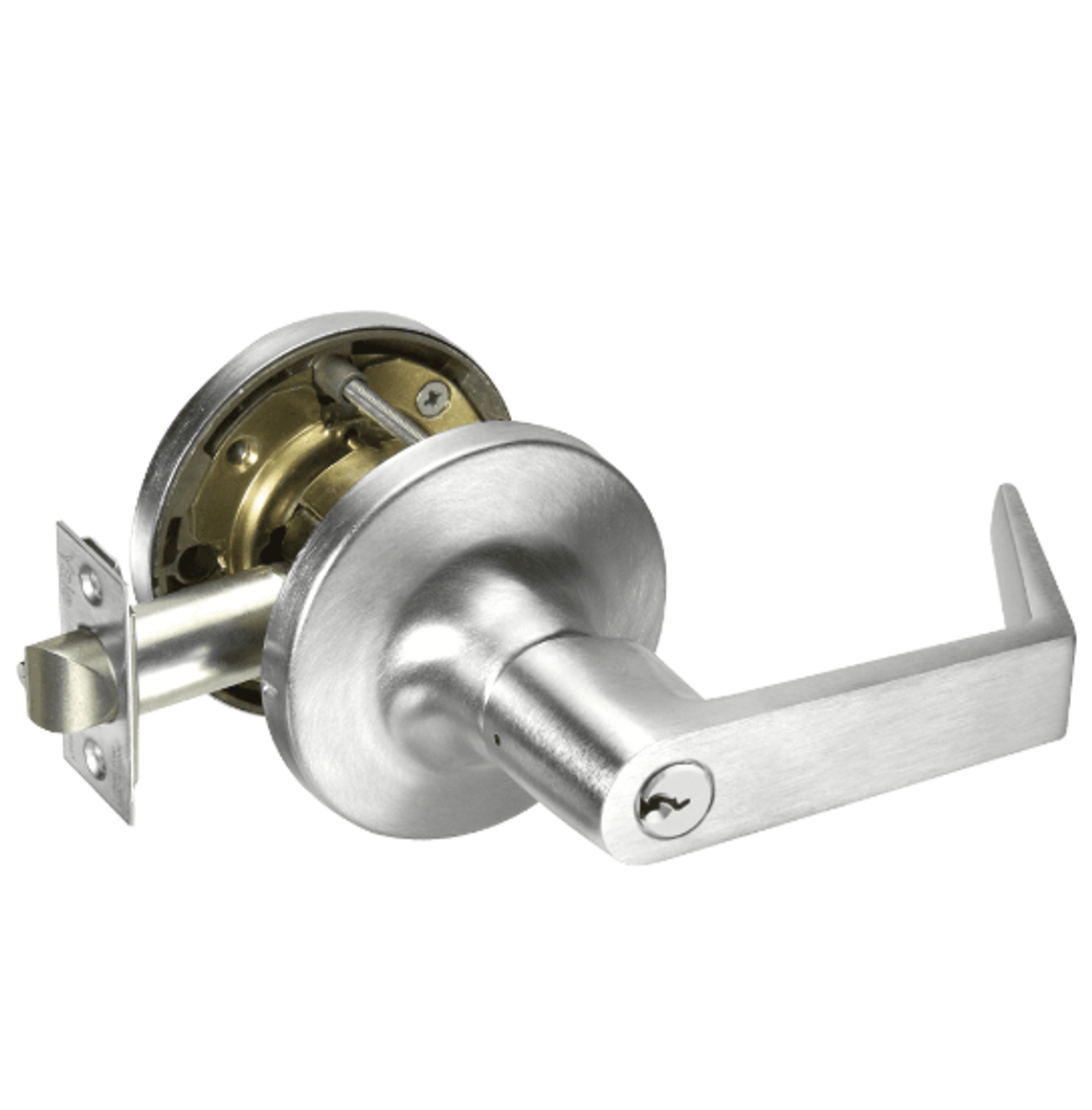

Accentra 5429LN Communicating Lever

The Accentra 5429LN Communicating Lever works for twin communicating doors or closet doors where space is limited. It has a deadlocking latchbolt and a blank rose for a clean look. The inside lever operates the latch unless you lock it with a key. This lever is for rooms with more than one entrance and does not work with IC core cylinders. Free-wheeling levers in the locked position improve security and resist forced entry.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach, B AU – Augusta

Key Features

• Function: Communicating – F113
• Operation:
  • Deadlocking latchbolt ensures reliable security

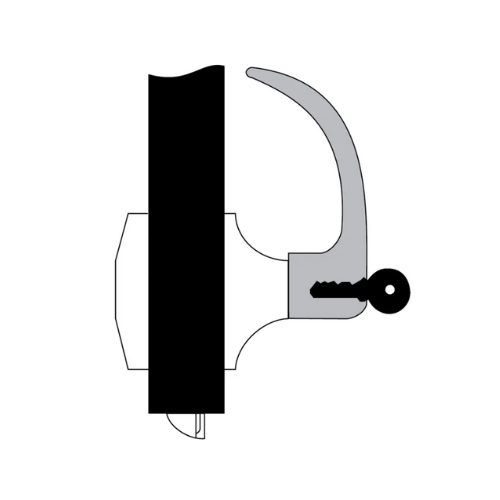

  • Inside lever operates latch except when locked by key
  • Works for twin doors or closet doors with limited space
  • Free-wheeling lever handles prevent tampering in locked mode
  • Blank rose provides a simple, clean appearance
• Construction: Heavy-duty Grade 1 performance for strength and durability
• Accessibility: ADA compliant for ease of use
• Warranty: 7-year mechanical warranty
• Applications: Classrooms, offices, dormitories, or rooms with communicating doors needing controlled access

Benefits

• Provides secure one-side operation in tight spaces
• Free-wheeling levers resist forced entry and reduce vandalism
• Deadlocking latchbolt adds reliable security
• Heavy-duty construction ensures long-term performance
• Simple design and easy installation for commercial doors

Specifications

• Brand: Accentra (Formerly Yale)
• Usage: Heavy Duty
• ANSI/BHMA Standard: A156.2, Series 4000 Grade 1
• Latch: 1/2″ throw – 1-1/8″ x 2-1/4″ face
• Backset: 2-3/4″
• Strike: 4-7/8″ x 1-1/4″ ASA/ANSI with curved lip (ANSI A115.2 prep)
• Handing: Non-Handed
• Door Thickness: 1-3/4″ to 2-1/4″
• ADA Compliance: Meets A117.1 Accessibility Code

Certifications

• ANSI/BHMA Grade 1 certified for heavy-duty commercial use
• Compliant with ANSI A156.2 (Series 4000) and ANSI A156.41 standards
• ADA and ICC A117.1 accessible design compliant
• UL/cUL fire-rated for up to 3 hours
• Florida Building Code approved (FL# 3063)
• NFPA 80 compliant for fire door applications
• Windstorm and impact resistant (ASTM E330, E1886, E1996)
• Certified to TAS 201, TAS 202, and TAS 203 standards
